PRO Z 100 EFI 154-L (53TWEHRA050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2019) Controls Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

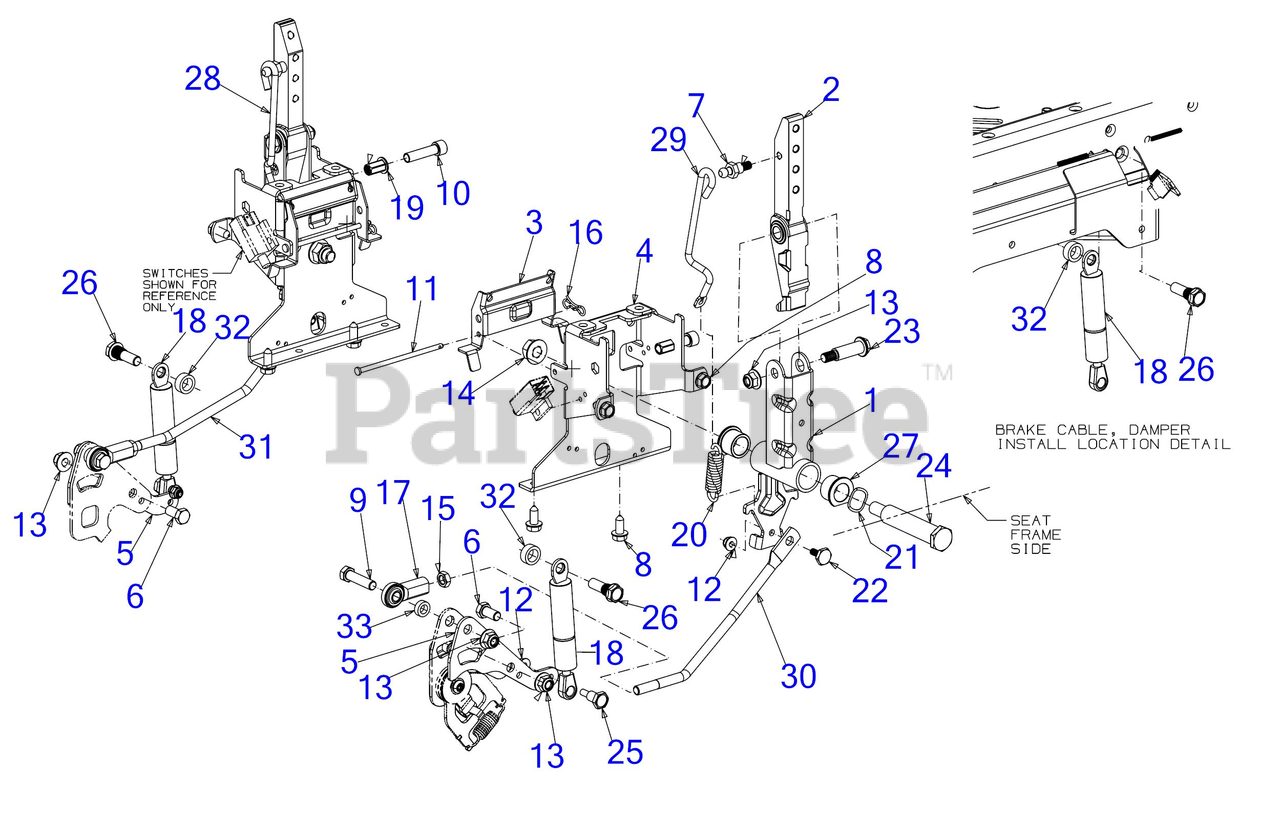

Controls Parts Diagram

  • Title

1

Cub Cadet 603-05033A

LAPBAR PIVOT HUB

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05033A-0637

HUB-LAPBAR PIVOT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05033A-0691

HUB-LAPBAR PIVOT - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05033A-4021

HUB-LAPBAR PIVOT - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 941-00022A

LOWER LAP BAR ARM ASSEMBLY

$89.99

$

In Stock, only 2 left!

0

2

Cub Cadet 741-0748

FLANGE BUSHING

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09069

BRAKE CABLE LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09069-0637

LEVER-BRAKE CABLE - POWDER BLACK (0637)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09069-0691

LVR-BRAKE CABLE - BLACK JACK (0691)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09069-4021

LVR-BRAKE CABLE - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09325A

LAPBAR PIVOT SUPPORT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09325A-0637

SUPPORT-LAPBAR PIVOT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09325A-0691

SUPT-LAPBAR PIVOT - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09325A-4021

SUPT-LAPBAR PIVOT - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10413

DAMPER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10413-0637

PLATE-DAMPER - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10413-4021

PLATE-DAMPER - CUB YELLOW 2 (4021)

$14.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet 710-04471

SCREW 5/16-18 x .48

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0520

SCREW 3/8-16 x 1.50

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-06024

SCREW 3/8-16 x 1.50

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-06068

PIN .188 x 4.1

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

17

Cub Cadet 723-04080

BALL JOINT

$43.99

$

In Stock, only 2 left!

0

18

Cub Cadet 727-05108

HYD DAMPER CYLINDER

$55.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 728-04062A

NUT RIVET
(Superseded to 728-04062B)

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-1162

EXTENSION SPRING

$9.49

$

In Stock, only 4 left!

0

21

Cub Cadet 736-0621

WAVE WASHER .785X1.00X.012

$18.99

$

In Stock, only 2 left!

0

22

Cub Cadet 938-0255

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet 738-05025

SHOULDER BOLT .498 DIA x 1.296 LG

$7.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-05033

SHOULDER BOLT .750 DIA x 3.25 LG

$16.99

$

In Stock, only 3 left!

0

25

Cub Cadet 738-05034

SHOULDER BOLT .395 DIA x .56 LG

$7.99

$

In Stock, Qty 11

0

26

Cub Cadet 738-05074

SHOULDER BOLT .395 DIA X.83 LG DOG

$9.49

$

In Stock, Qty 10

0

27

Cub Cadet 741-04050

FLANGE BEARING

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-06294

LAPBAR DETENT ROD (LH)

$12.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 747-06295

LAPBAR DETENT ROD (RH)

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 747-06639A

HYDRO CONTROL ROD (RH)

$30.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-06640A

HYDRO CONTROL ROD (LH)

$63.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-04428

SPACER

$3.99

$

In Stock, only 4 left!

0

33

Cub Cadet 750-0535

SPACER-.380 ID X.625 OD x .227
(Superseded to 950-0535)

$4.99

$

In Stock, Qty 10

0
