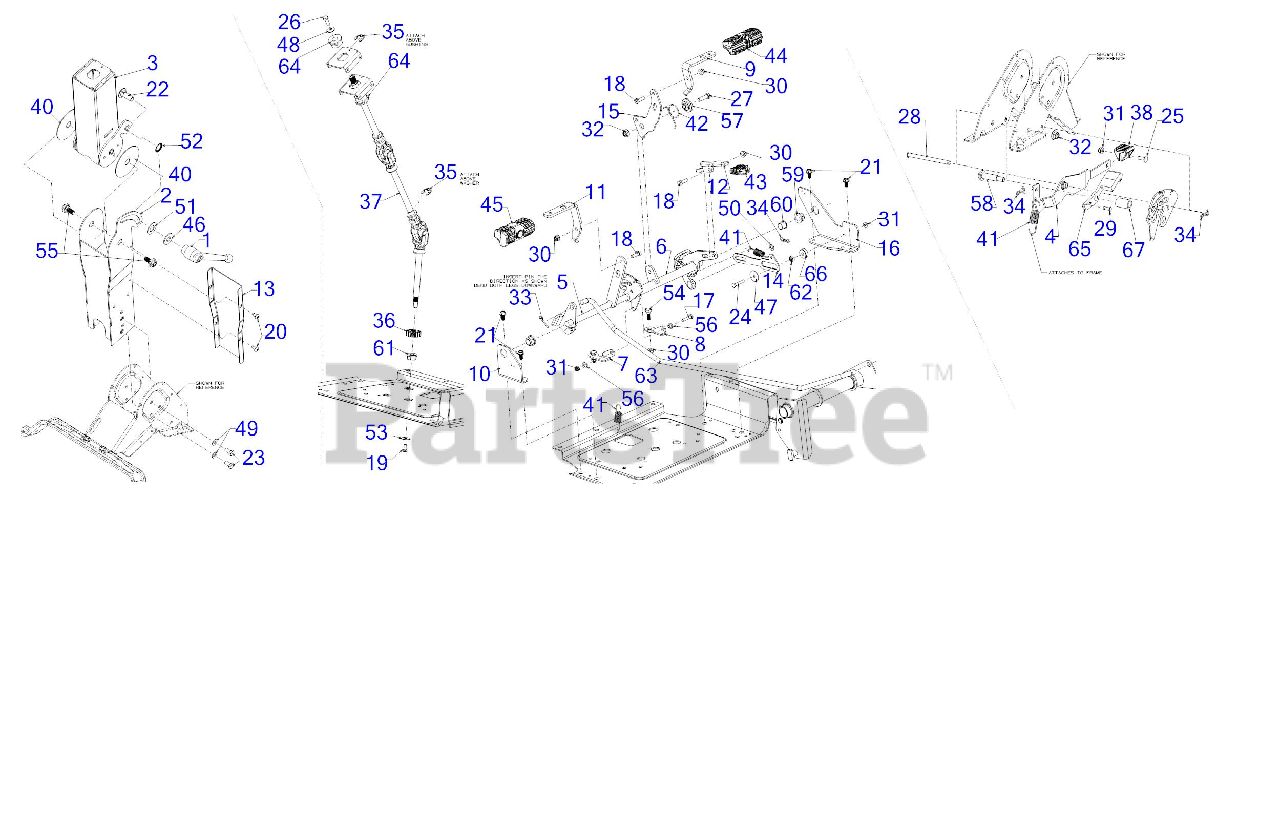

PRO Z 100 EFI 154-S (53TWEFJA050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2018) Controls Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

Controls Parts Diagram

  • Title

1

Cub Cadet 02005058

STEERING COLUMN ADJUST LEVER

$76.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05076A

LOWER COLUMN ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05076A-0637

LOWER COLUMN ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05076A-4021

YELLOW COLUMN ASMLWR - CUB YELLOW 2 (4021)

$127.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05128A

UPPER PIVOT COLUMN ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05128A-0637

COLUMN ASM-UPPER P - POWDER BLACK (0637)

$158.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05128A-4021

COLUMN ASM-UPPER P - CUB YELLOW 2 (4021)

$158.99

$

Usually ships in 3-6 days

0

$128.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-05315

CRUISE BRAKE PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05315-0637

CRUISE BRAKE PEDAL ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-05315-4021

YELLOW CRUISE BRAKE P - CUB YELLOW 2 (4021)

$59.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 947-05090

BRAKE SHAFT ASSEMBLY

$58.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 947-05100

DRIVE PEDAL ASSEMBLY

$99.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08604

PEDAL SHAFT BRACKET (LH)
(Superseded to 703-08604A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08604-0637

Pedal Shaft Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 703-08604-4021

BRKT-PEDAL SHAFT - CUB YELLOW 2 (4021)

$11.99

$

In Stock, only 1 left!

0

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08606

PEDAL SHAFT BRACKET (RH)
(Superseded to 703-08606A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08606-0637

Pedal Shaft Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08606-4021

BRKT-PEDAL SHAFT - CUB YELLOW 2 (4021)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08646B

FORWARD DRIVE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08646B-0637

PEDAL-FORWARD DRV - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08646B-4021

PEDAL-FORWARD DRV - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08656

BEARING SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08656-0637

BRACKET-BRG SUPPORT - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08656-4021

BRKT-BRG SUPPORT - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08675A

BRAKE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08675A-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08675A-4021

PEDAL-BRAKE - CUB YELLOW 2 (4021)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08694B

REVERSE DRIVE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-08694B-0637

PEDAL-REVERSE DRV - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-08694B-4021

PEDAL-REVERSE DRV - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-09279

STEERING COLUMN COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09279-0637

COVER-STEERING COL - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-09279-4021

COVER-STEERING COL - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 903-09837A

NEUTRAL RETURN LINK

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 903-10338A

FORWARD PEDAL BRACKET

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-10408A

PEDAL BEARING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10408A-0637

BRKT-RH PEDAL BRG - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10408A-4021

BRKT-RH PEDAL BRG - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

$33.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-04483

SCREW 1/4-20 x .500

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-05375

CARRIAGE BOLT 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0538

SCREW 5/16-18 x .62 GR5

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.99

$

In Stock, Qty 7

0

25

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

26

Cub Cadet 710-1245B

SCREW 5/16-24 x .875 GR5

$8.99

$

In Stock, Qty 13

0

27

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 711-05068A

CLEVIS PIN 5/16 x 4.135

$8.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-05670

CLEVIS PIN .224 x .625

$5.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

35

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

36

Cub Cadet 717-04960

STEERING GEAR 14T

$14.99

$

In Stock, Qty 6

0

37

Cub Cadet 917-05424

COMPLETE STEERING SHAFT

$186.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0337

FLAT WASHER

$4.99

$

In Stock, Qty 17

0

38

Cub Cadet 720-05145

CRUISE TILT KNOB

$8.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 731-09831

COLUMN PLATE

$6.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 732-04748

EXTENSION SPRING

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-04949

TORSION SPRING

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 735-04117

REVERSE PEDAL PAD

$6.99

$

In Stock, only 2 left!

0

44

Cub Cadet 735-04118A

FORWARD PEDAL PAD

$15.99

$

In Stock, only 2 left!

0

45

Cub Cadet 735-04136

BRAKE PEDAL PAD

$16.99

$

In Stock, only 1 left!

0

46

Cub Cadet 936-0179

FLAT WASHER
(Superseded to 736-0179)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 936-0211

FLAT WASHER
(Superseded to 736-0211)

$7.49

$

In Stock, only 3 left!

0

48

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 936-0264

FLAT WASHER

$7.49

$

In Stock, Qty 11

0

50

Cub Cadet 936-0314

WASHER THRUST .375X.70X.030
(Superseded to 736-0314)

$

$

Not available

51

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 936-0760

LOCK WASHER

$4.49

$

In Stock, Qty 11

0

53

Cub Cadet 736-3092

FLAT WASHER

$4.49

$

In Stock, only 4 left!

0

54

Cub Cadet 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 738-04130A

SHOULDER SCREW .625X.165X3/8-16

$9.99

$

In Stock, Qty 6

0

56

Cub Cadet 738-04483

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 738-04552B

SHOULDER SPACER 1.50X.38X.38

$7.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 738-0929

SHOULDER SCREW .496X1.44 3/8-16

$8.49

$

In Stock, only 2 left!

0

59

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 20+

0

60

Cub Cadet 741-0495

NYLINER BEARING

$4.99

$

In Stock, Qty 16

0

61

Cub Cadet 741-05052

FLANGE BEARING

$6.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 741-05209

BALL BEARING .25 X .625

$11.99

$

In Stock, only 1 left!

0

63

Cub Cadet 747-05654A

FRONT BRAKE ROD

$45.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 948-0209

FLANGE BEARING

$23.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 748-04203

CRUISE LATCH

$14.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-06497

SPACER .267X1.00X.36

$2.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 750-06683

SPACER 0.510 X 0.775 X 1.190

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-0511-10

TRIM STRIP

$21.99

$

Usually ships in 3-6 days

0
