PRO Z 100 EFI 160-S (53RWEFJU050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Platform Parts Diagram

60" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

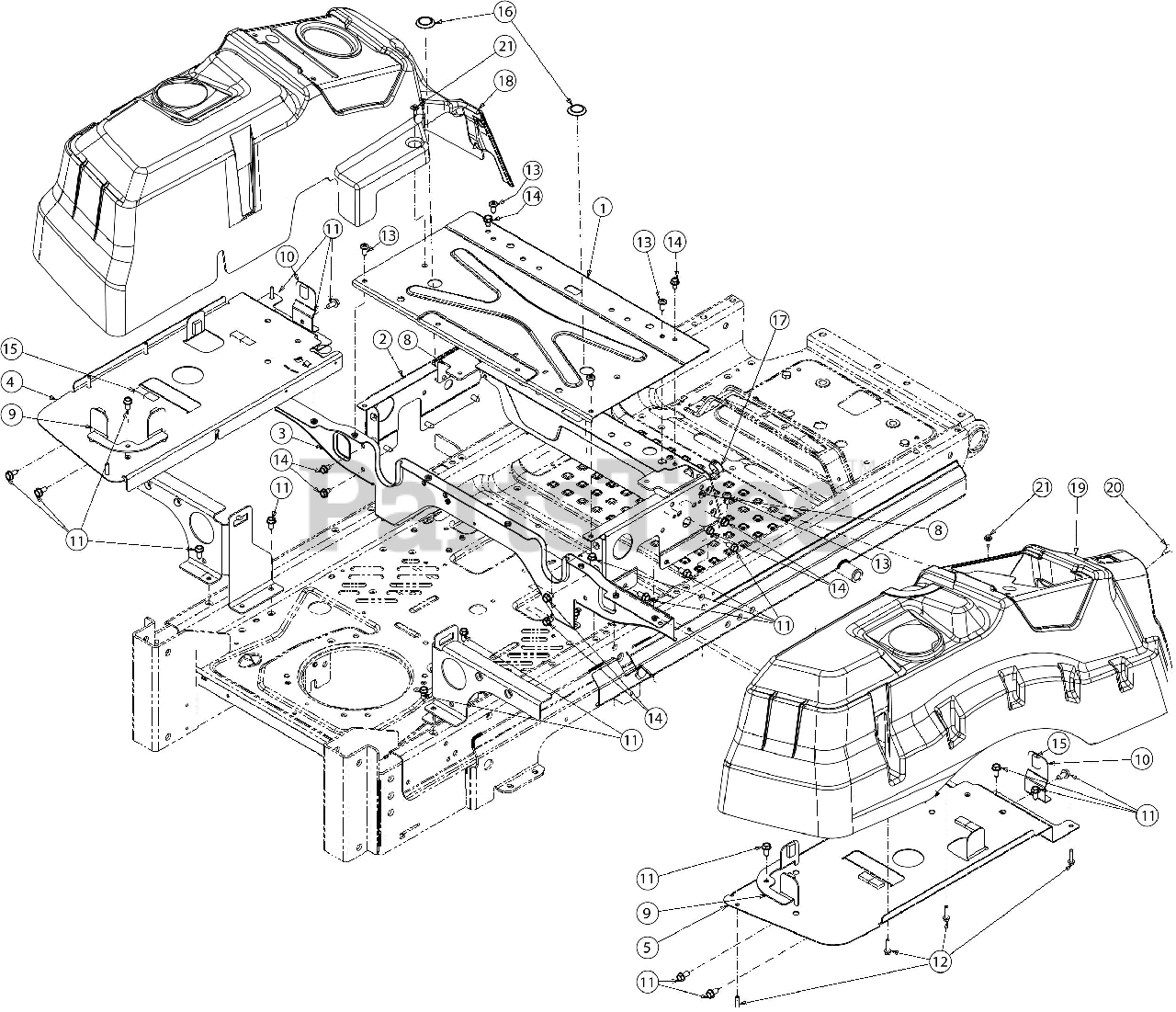

Platform Parts Diagram

  • Title

1

Cub Cadet 703-09186E-4021

SEATBOX TOP PLATE
(Superseded to 703-09186J-4021)

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09320A-4021

SEAT FRAME
(Superseded to 703-09320F-4021)

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09332A-4021

REAR SEATBOX BRACE
(Superseded to 703-11179-5017)

$50.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10142A-4021

TANK SUPPORT PLATE (LH)

$99.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10143A-4021

TANK SUPPORT PLATE (RH)
(Superseded to 703-10143B-4021)

$99.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10312-4021

REAR BRACKET SUPPORT (LH)

$45.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10313-4021

REAR BRACKET SUPPORT (RH)

$45.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10365

SEAT BOX BRACKET

$14.99

$

Usually ships in 3-6 days

0

9

703-10388A-4021

REAR TANK BRACKET

$

$

Not available

10

703-10460A-4021

FRONT TANK BRACKET

$

$

Not available

11

Cub Cadet 710-04484

SCREW 5/16-18 X .750

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-05109

SCREW 5/16-14 X 1

$3.49

$

In Stock, Qty 7

0

13

Cub Cadet 710-05424

SCREW 5/16-18 X .750

$3.49

$

In Stock, Qty 5

0

14

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 722-3022A

FOAM TAPE .625 WIDE X .25 THK BULK

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-3045A

PLUG

$4.49

$

In Stock, Qty 11

0

17

Cub Cadet 731-09477

PLASTIC PLUG

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-11219

CONSOLE (LH) Z-STYLE

$68.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-11220

CONSOLE (RH) Z-STYLE

$68.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-04549A

TORX SHOULDER SCREW 1/4-20

$6.99

$

In Stock, only 4 left!

0

21

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$2.99

$

In Stock, Qty 20+

0
