PRO Z 100 EFI 160-S (53TWEFJU050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2022) Drive Parts Diagram

60" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

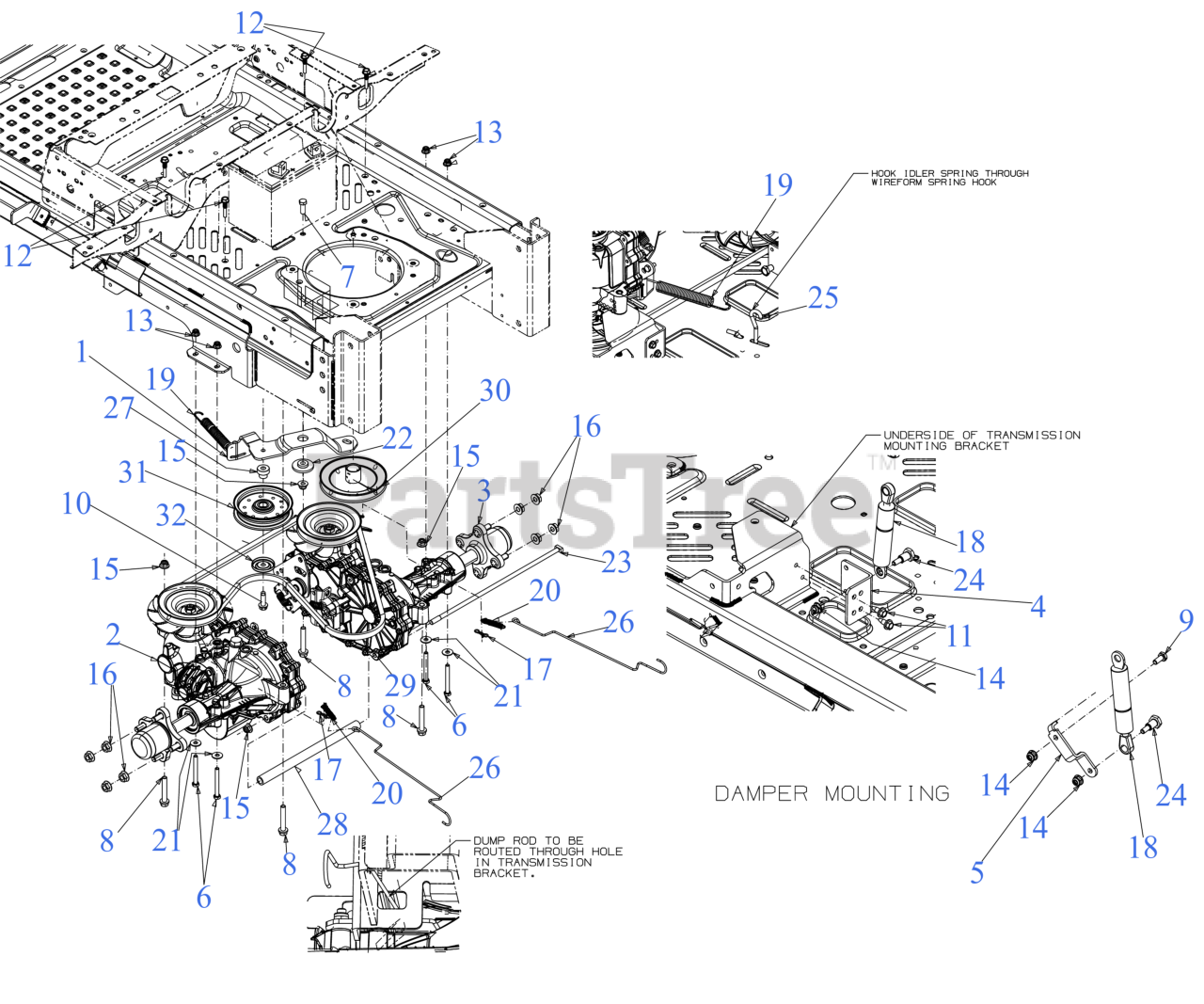

Drive Parts Diagram

  • Title

1

Cub Cadet 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$44.99

$

In Stock, Qty 7

0

2

Cub Cadet 918-09972

TRANSMISSION (LH)

Note: (See Separate Breakdown)

$2055.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-09973

TRANSMISSION (RH)

Note: (See Separate Breakdown)

$2130.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10655

FRAME DAMPENER BRACKET MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10655-4021

FRAME DAMPENER BRA - CUB YELLOW 2 (4021)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10661A

TRANSMISSION DAMPENER BRACKET MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10661A-0637

BLACK TRANSMISSION DA - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10661A-4021

TRANSMISSION DAMPE - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06045

SCREW 3/8-16 x 2.25 GR5

$5.99

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 711-06112

BELT KEEPER ROD .25 x 1.585

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-05160

HEX FLANGE NUT 7/16-14

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet 727-05122

HYDRAULIC CYLINDER DAMPENER

$88.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-05390

EXTENTION SRING .75 DIA. x 6.85

$23.99

$

In Stock, only 3 left!

0

20

Cub Cadet 732-05475

EXTENSION SPRING .380 ODX 2.000 LG

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0371

FLAT WASHER

$4.99

$

In Stock, only 2 left!

0

22

Cub Cadet 738-04162C

SHOULDER SPACER

$14.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04251A

SUPPORT TUBE ROD

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-05034

SHOULDER BOLT .395 DIA x .56 LG

$7.99

$

In Stock, Qty 11

0

25

Cub Cadet 747-06074

IDLER SPRING HOOK

$24.99

$

In Stock, only 3 left!

0

26

Cub Cadet 747-06559A

BYPASS ROD

$39.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-05029A

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 750-06147A

TRANSMISSION SPACER .75OD x 11.31

$24.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$53.99

$

In Stock, Qty 20+

0

30

Cub Cadet 756-05001B

TRANMISSION DRIVE PULLEY

$53.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$33.99

$

In Stock, Qty 20+

0

32

Cub Cadet 783-08389

IDLER PULLEY CAP

$6.49

$

In Stock, Qty 20+

0
