PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Electrical Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

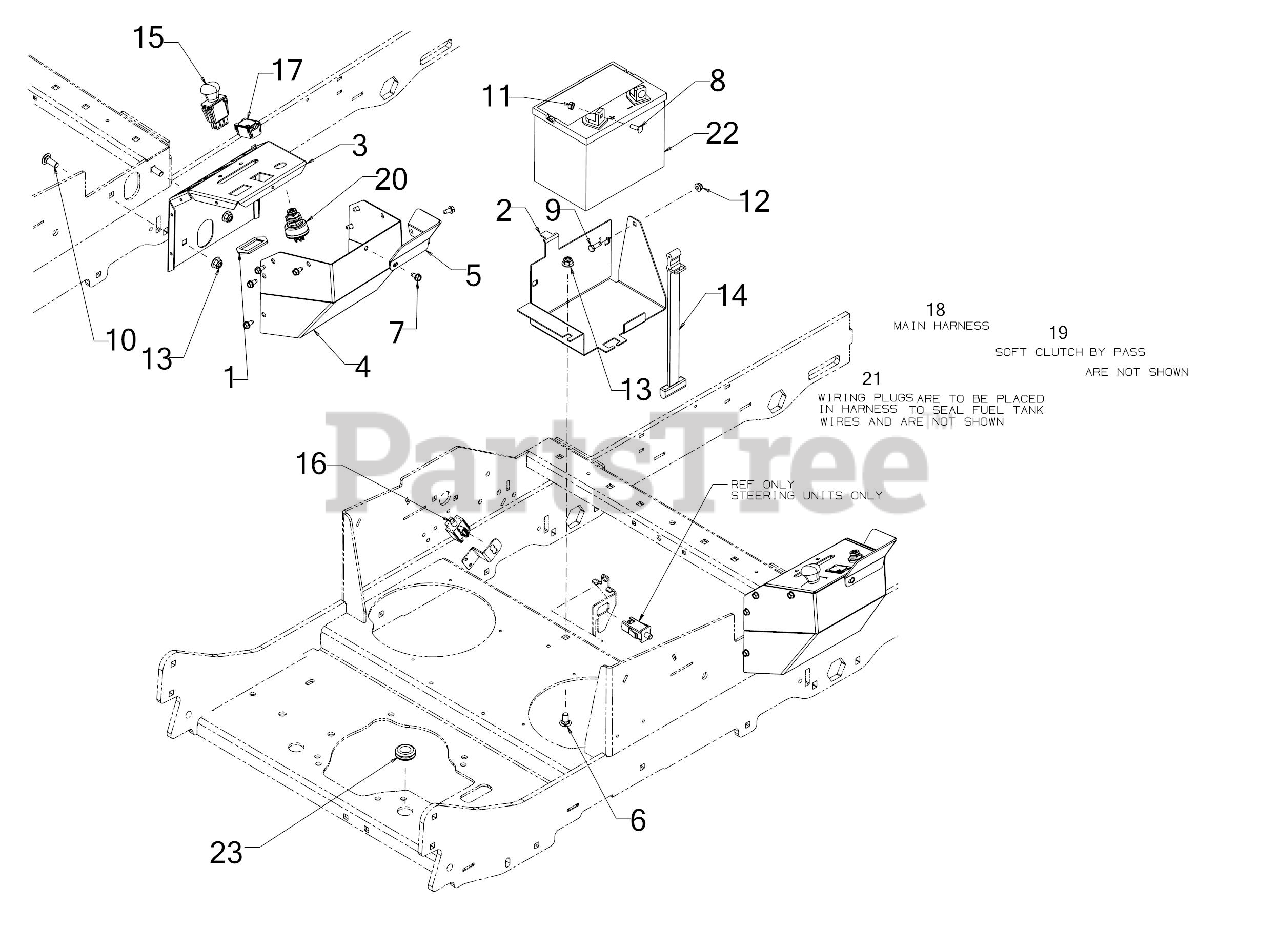

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10064-4021

BATTERY MOUNTING BRACKET

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10875-4021

CONTROL POD - (RH)

$62.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10877-4021

CONTROL POD COVER (RH)

$64.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10967-4021

THROTTLE DEFLECTOR

$19.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0271

SEMS NUT 1/4-20

$4.99

$

In Stock, Qty 15

0

12

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$31.99

$

In Stock, only 3 left!

0

15

Cub Cadet 925-04174A

ELECTRIC PTO SWITCH

$74.99

$

In Stock, Qty 20+

0

16

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$52.99

$

In Stock, Qty 20+

0

17

Cub Cadet 725-06307

HOUR METER

$157.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-06712B

WIRE HARNESS ASSEMBLY
(Superseded to 725-06712D)

$182.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725-06816

BYPASS HARNESS
(Superseded to 725-06816B)

$18.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 925-06854

KEY SWITCH (3 POSITION)

$146.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-06945

SEALED CAP ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 925-1707D

BATTERY

$

$

Not available

23

Cub Cadet 735-04285

RUBBER GROMMET

$4.49

$

Usually ships in 3-6 days

0
