54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

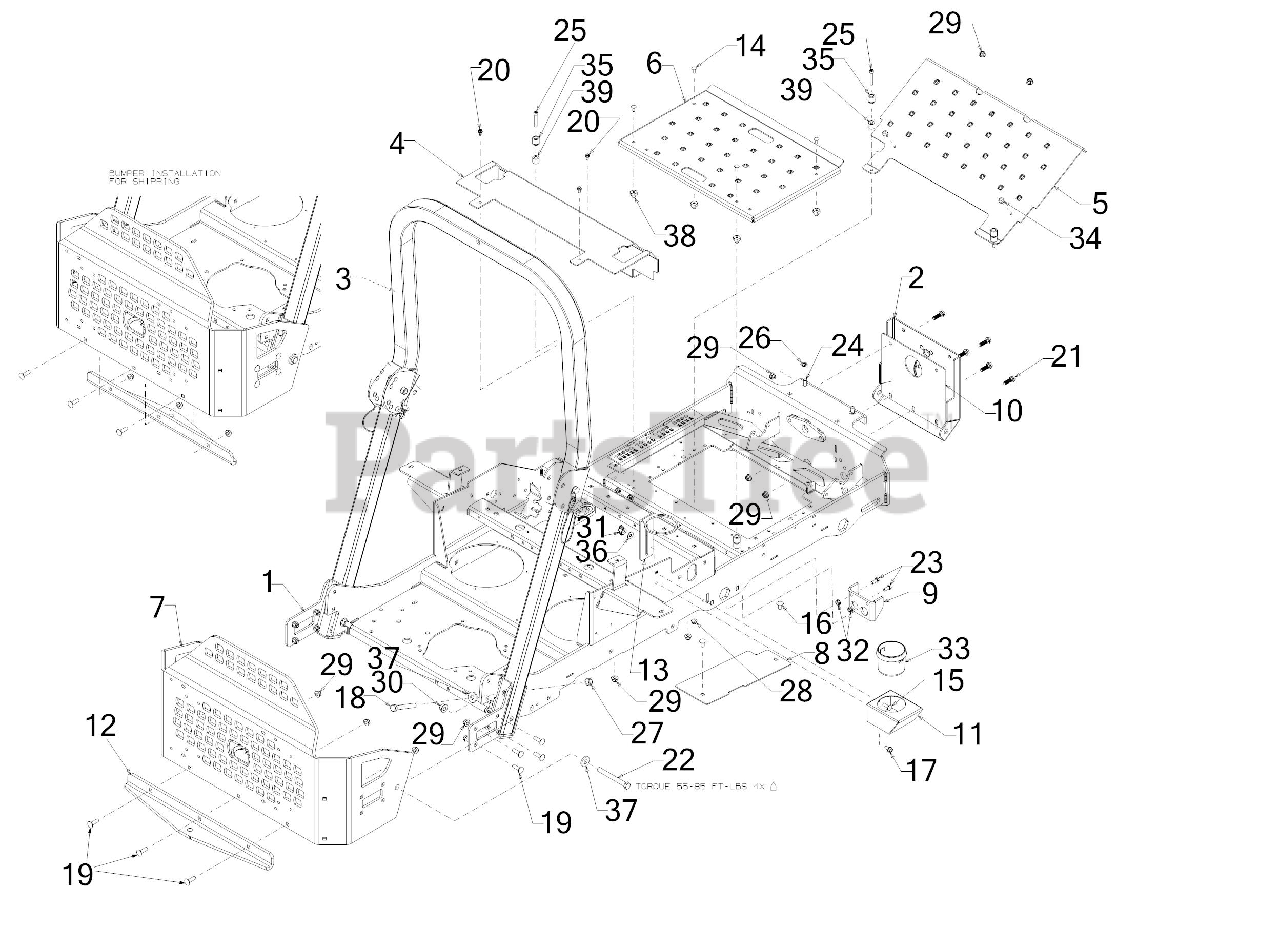

Frame Parts Diagram

  • Title

1

Cub Cadet 680-00357A-4021

FRAME ASSEMBLY
(Superseded to 680-00357E-4021)

$2100.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00372-4021

AXLE COVER ASSEMBLY

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00437

FOLDING ROPS ASSEMBLY

Note: (See Separate Breakdown)

$939.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10194-4021

SEAT BOX COVER

$77.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10256A-4021

FRONT FOOT PAN

$134.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10286-4021

LAP BAR FLOOR PANEL TRAY

$124.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10340A-4021

REAR BUMPER
(Superseded to 703-10340B-4021)

$436.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10439A-4021

SEAT PANEL COVER(RH)

$31.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10515A-4021

FRONT DECK LIFT MOUNTING BRACKET

$36.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10534-4021

FRONT AXLE PLATE
(Superseded to 703E10534)

$28.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10537-4021

LOWER CUP HOLDER

$37.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10663-4021

HITCH BRACKET

$111.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-10881-4021

UPPER CUP HOLDER BRACKET

$35.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 11

0

15

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0515

SCREW 1/2-20 x 3.50 GR5

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$12.99

$

In Stock, Qty 5

0

23

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3251

SCREW 5/16-18X1.75 GR5

$6.49

$

In Stock, only 2 left!

0

26

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 912-0239

HEX NUT
(Superseded to 712-0239)

$

$

Not available

28

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0266A

NUT

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0421

WING NUT 5/16-18

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 731-04591A

CUP HOLDER

$16.99

$

In Stock, only 2 left!

0

34

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, Qty 16

0

35

Cub Cadet 735-05131

RADIAL BUMPER

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

37

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$8.49

$

In Stock, only 1 left!

0

38

Cub Cadet 738-05171

SHOULDER SPACER

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-06472

SPACER

$10.99

$

Usually ships in 3-6 days

0
