PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Front Axle Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

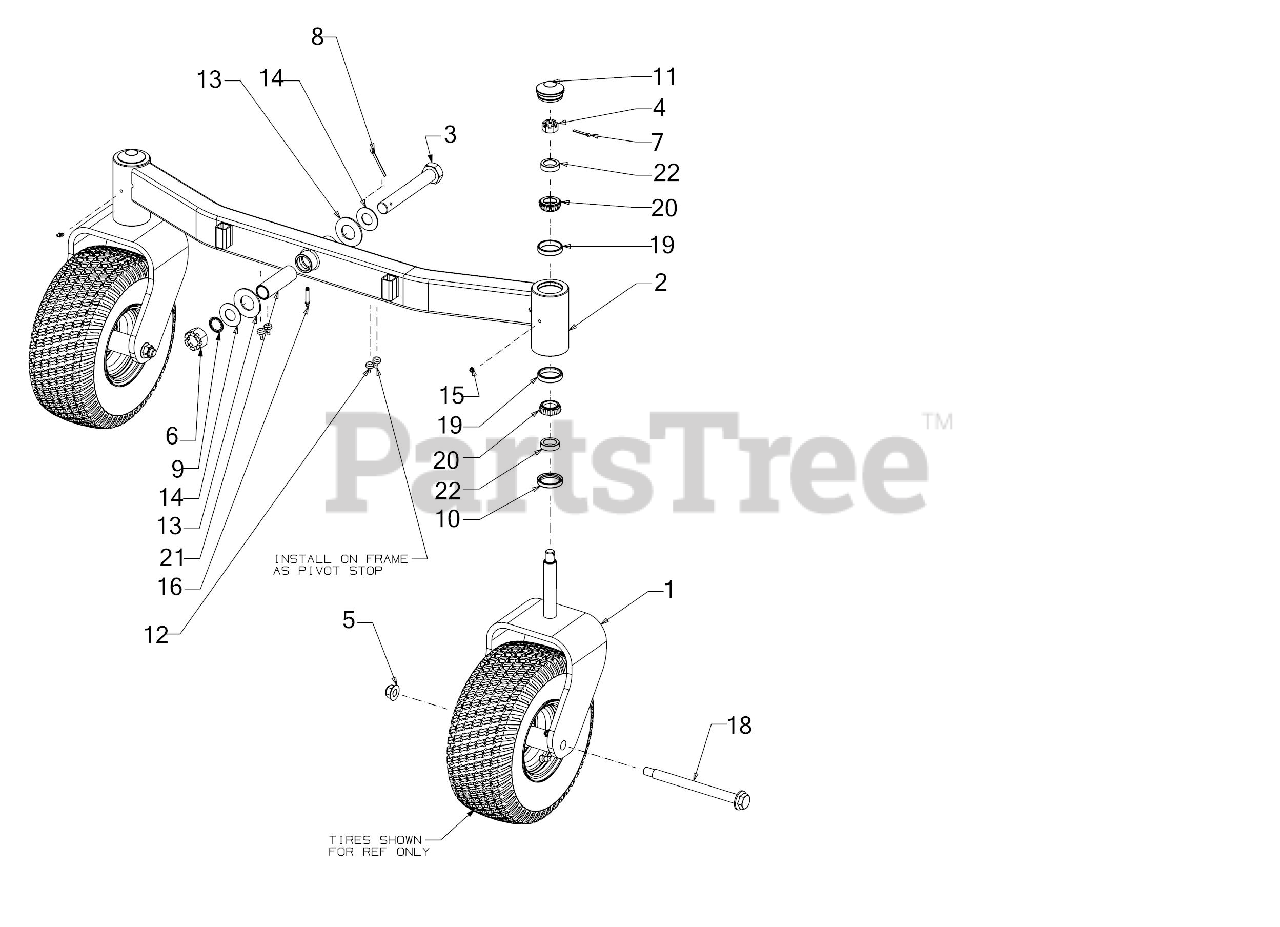

Front Axle Parts Diagram

  • Title

1

Cub Cadet 680-00374-4021

FRONT CASTER ASSEMBLY (LAPBAR)
(Superseded to 680-00374A-4021)

$203.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00434-4021

FRONT AXLE ASSEMBLY

$673.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-05189B

HEX HEAD SCREW 1-14 X 7 GR5
(Superseded to 710-05189C)

$62.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

9

Cub Cadet 716-04191

RETAINING RING

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 721-04462

SEAL

$11.99

$

In Stock, only 2 left!

0

11

Cub Cadet 731-07348

AXLE GREASE CAP

$9.49

$

In Stock, Qty 5

0

12

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, only 3 left!

0

13

Cub Cadet 736-04604

BELL WASHER 1.25ID x 2.5 x .180

$8.99

$

In Stock, Qty 12

0

14

Cub Cadet 736-04605

FLAT WASHER 1.0 x 2.0 x .075

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 737-04352

GREASE FITTING

$16.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-05173

SHOULDER BOLT .750 X 8.175:5/8-11

$44.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 741-04548

BEARING CUP

$9.49

$

In Stock, only 2 left!

0

20

Cub Cadet 741-04549

BEARING CONE

$20.99

$

In Stock, only 2 left!

0

21

Cub Cadet 750-05438

SPACER

$27.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 750-05600

SPACER

$7.99

$

In Stock, Qty 20+

0
