PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) ROPs Assembly Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

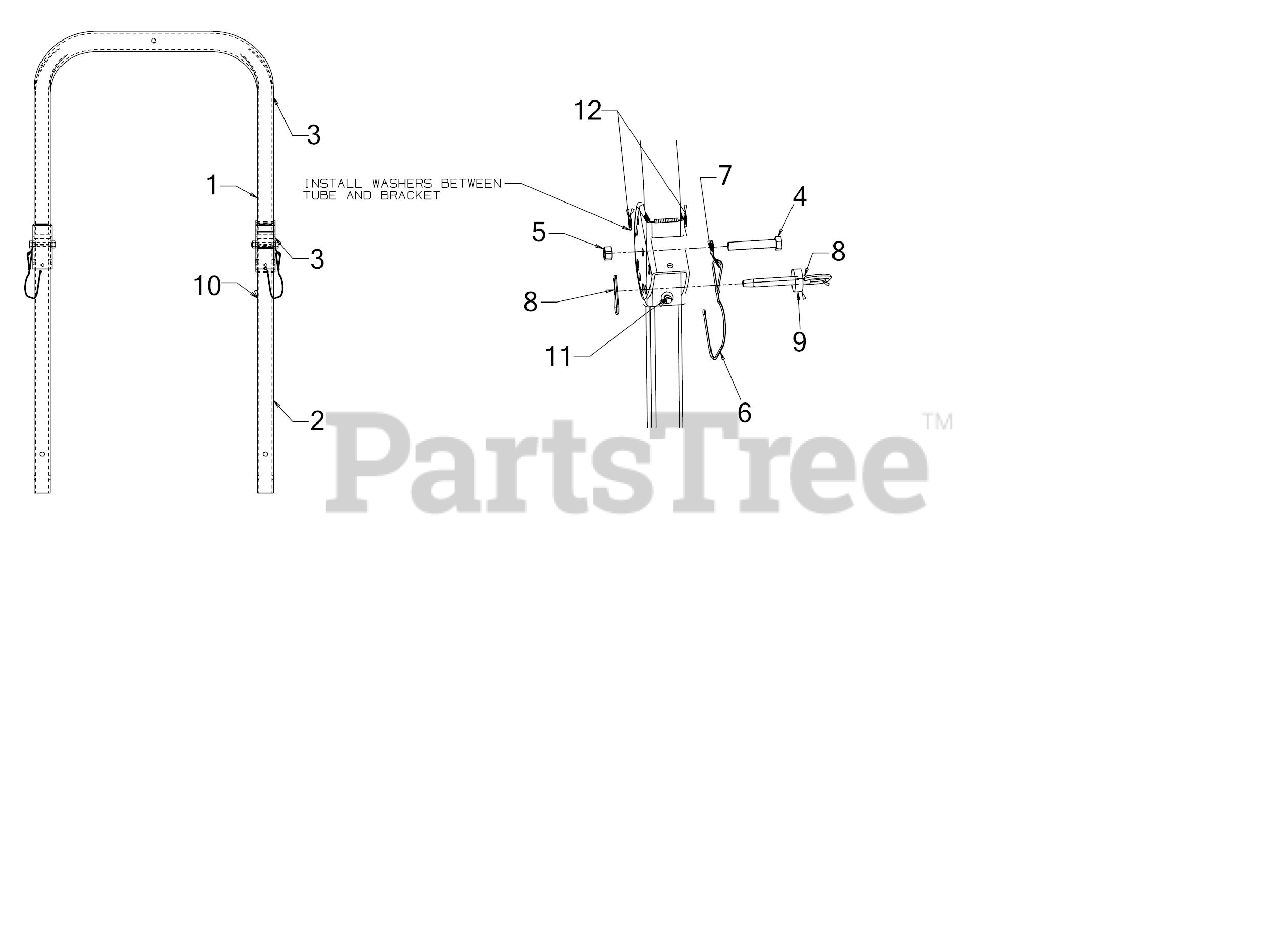

ROPs Assembly Parts Diagram

  • Title

1

N/A

DECAL, SERIAL

$

$

Not available

2

N/A

ROP TUBES R/L

Note: (Order Complete Assembly)

$

$

Not available

3

N/A

UPPER ROPS

Note: (Order Complete Assembly)

$

$

Not available

4

Cub Cadet CP-3-10131

SCREW-HEX HEAD 3.00"

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet CP-3-10485

NUT

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet CP-3-17811

U-LOCK-NYLON

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet CP-3-18413

WASHER

$12.99

$

In Stock, only 1 left!

0

8

Cub Cadet CP-3-18417

HITCH PIN
(Superseded to CP-3-18417P)

$51.99

$

Usually ships in 3-6 days

0

9

Cub Cadet CP-3-18418

WASHER

$8.49

$

Usually ships in 3-6 days

0

10

N/A

DECAL, ROPS WARNING

$

$

Not available

11

Cub Cadet CP-3-18480

BUMPER-W/FLANGE

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet CP-3-22243

WASHER

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 680-00437

FOLDING ROPS ASSEMBLY

$939.99

$

Usually ships in 3-6 days

0
