PRO Z 500 EFI 554-L (53RWHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI (2016) Seat Parts Diagram

54" Pro Z Series Zero-Turn Mower, Cub Cadet EFI

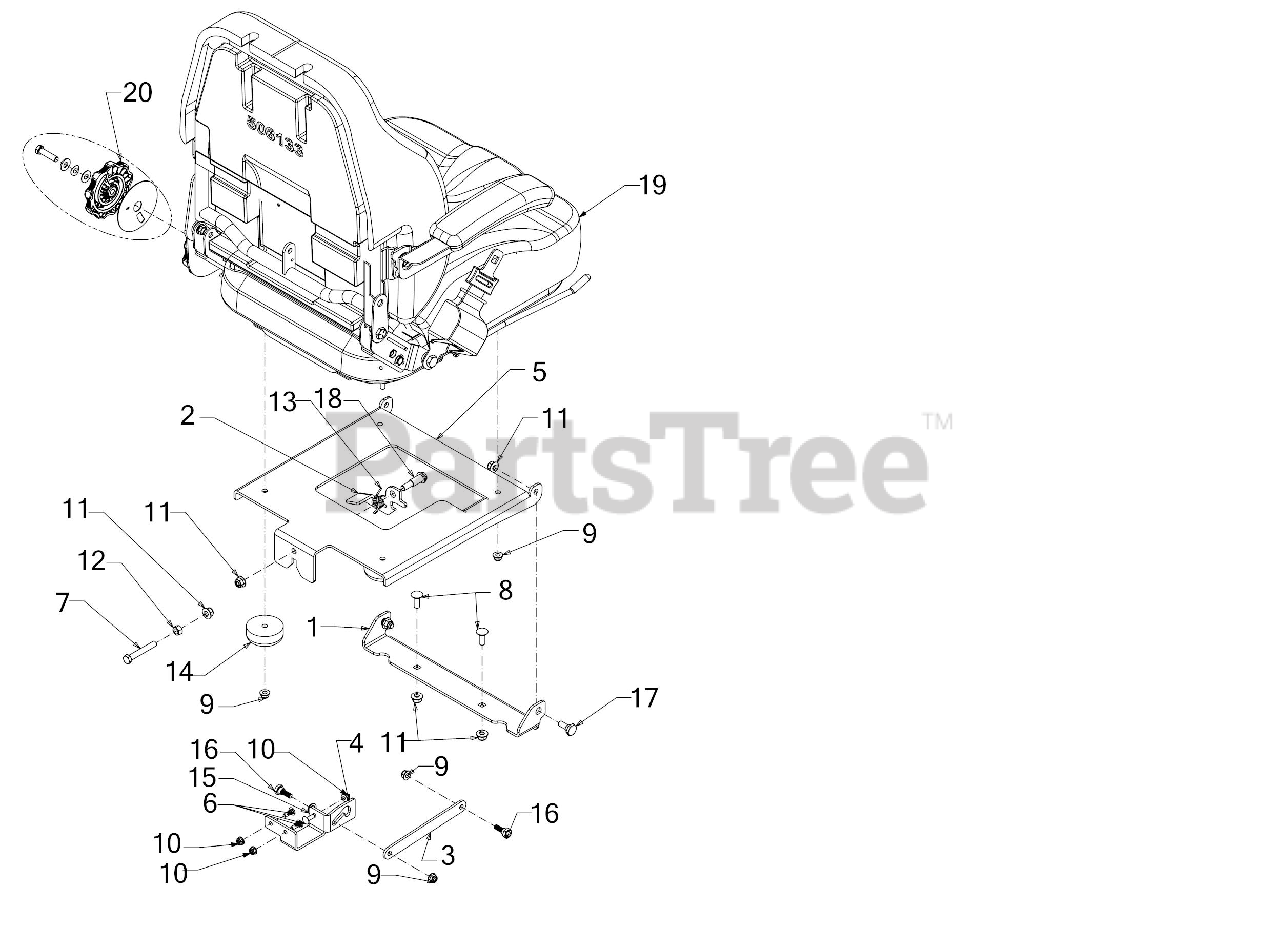

Seat Parts Diagram

  • Title

1

Cub Cadet 703-10262-4021

SEAT PIVOT BRACKET

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10270-4021

SEAT LATCH LEVER
(Superseded to 703E10270)

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E10273

SEAT LOCKOUT BRACKET

$26.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10274

SEAT LOCKOUT MOUNT
(Superseded to 703E10274)

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10320-4021

SEAT MOUNTING BRACKET

$86.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$7.49

$

In Stock, Qty 15

0

8

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 732-05392

TORSION SPRING

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-04286

RUBBER BUMPER

$9.49

$

In Stock, only 2 left!

0

15

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

In Stock, only 2 left!

0

16

Cub Cadet 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 757-05068

SEAT ASSEMBLY W/SUSPENSION
(Superseded to 757P05068A)

$1157.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-183781SN

NON ADJUST ARMREST KIT (RH)

Note: (Not Shown)

$86.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-183783SN

SET OF NON ADJUST ARMREST KIT

Note: (Not Shown)

$147.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-183782SN

NON ADJUST ARMREST KIT (LH)

Note: (Not Shown)

$86.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-183672

BELLOWS-W/HARDWARE

Note: (Not Shown)

$113.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-183390

KNOB ASSEMBLY-WEIGHT A

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-782473PS

PLUNGER SWITCH NC/NC

Note: (Not Shown)

$78.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-176201

BLACK SELFSKIN-ARM

Note: (Not Shown)

$79.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-312894PS

2" RETRACTABLE SEAT BELT KIT

Note: (Not Shown)

$154.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-313100VN1334

BACK COVER WITH LOGO

Note: (Not Shown)

$310.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-313101VN1334

CUSHION COVER

Note: (Not Shown)

$171.99

$

Usually ships in 3-6 days

0

19

Cub Cadet SI-112893PS

7" SINGLE LOCKING TRACK KIT

Note: (Not Shown)

$102.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 757-05071

SEAT KNOB KIT
(Superseded to 757-05071A)

$55.99

$

Usually ships in 3-6 days

0
