PRO Z 500 KW 554-L (53RIHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Deck Covers & Baffles Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

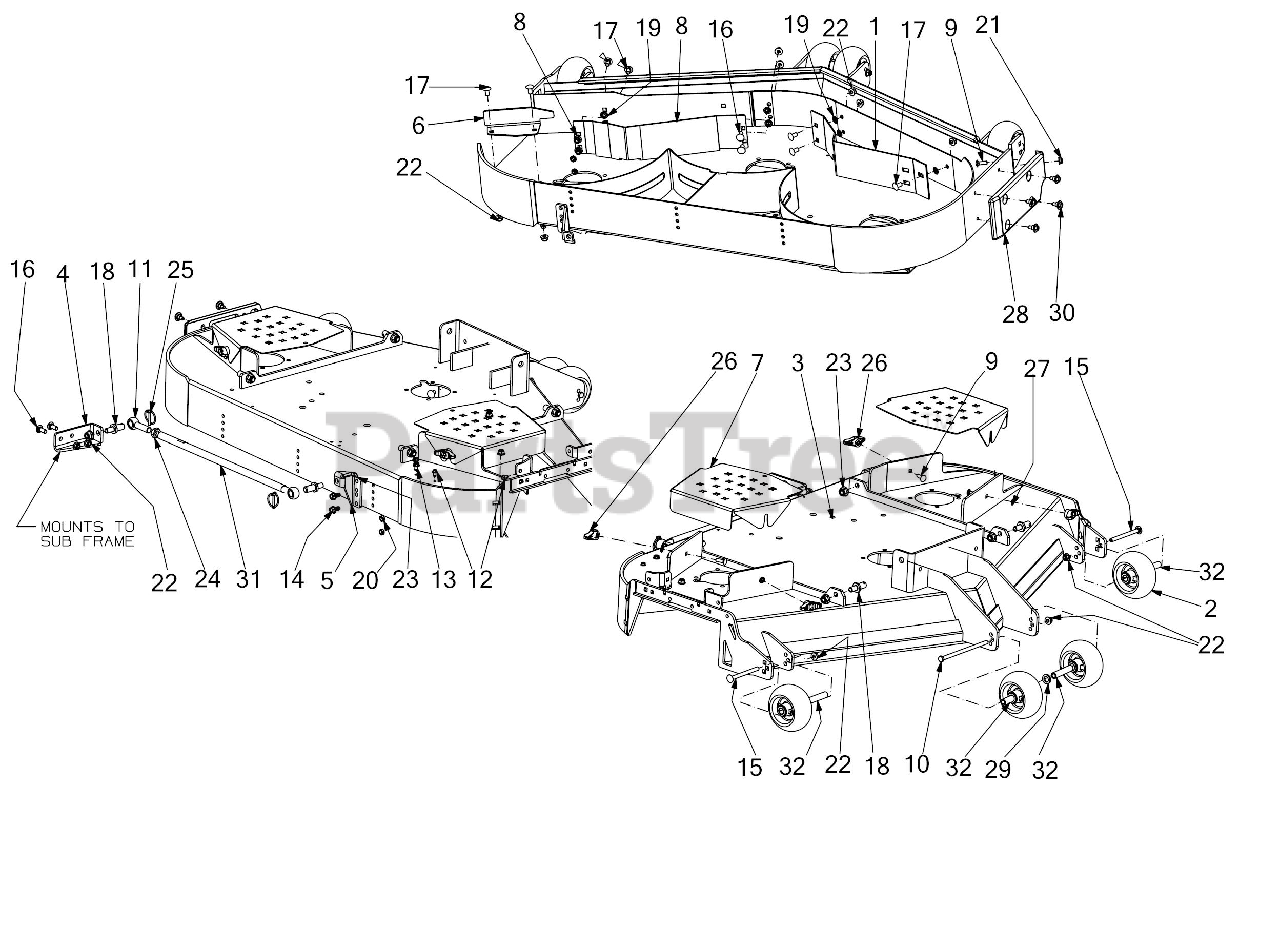

Deck Covers & Baffles Parts Diagram

  • Title

1

Cub Cadet 02005693-0637

BAFFLE - 54
(Superseded to 703-26732-0637)

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 634-3159

WHEEL ASSEMBLY 5"

$34.99

$

In Stock, Qty 20+

0

3

Cub Cadet 680-00366A-4021

54" FAB DECK SHELL ASSEMBLY

$1544.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00452-4021

STABILIZER MOUNTING BRACKET

$39.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00455-4021

REAR STABILIZER BRACKET

$39.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09593-4021

DECK CHUTE BAFFLE
(Superseded to 703-09593A-4021)

$28.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10099-4021

DECK BELT COVER
(Superseded to 703-10099B-4021)

$81.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10552-4021

DECK BAFFLE

$71.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$9.49

$

In Stock, Qty 9

0

11

Cub Cadet 710-05355

BOLT 5/8-16 x 2.63

$17.99

$

In Stock, Qty 10

0

12

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3015

HEX NUT
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 15

0

25

Cub Cadet 753-04070

LYNCH PIN

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, only 3 left!

0

30

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 747-06689-4021

TUBE

$41.99

$

In Stock, Qty 6

0

32

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0
