PRO Z 500 KW 554-L (53RIHTTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Electrical Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

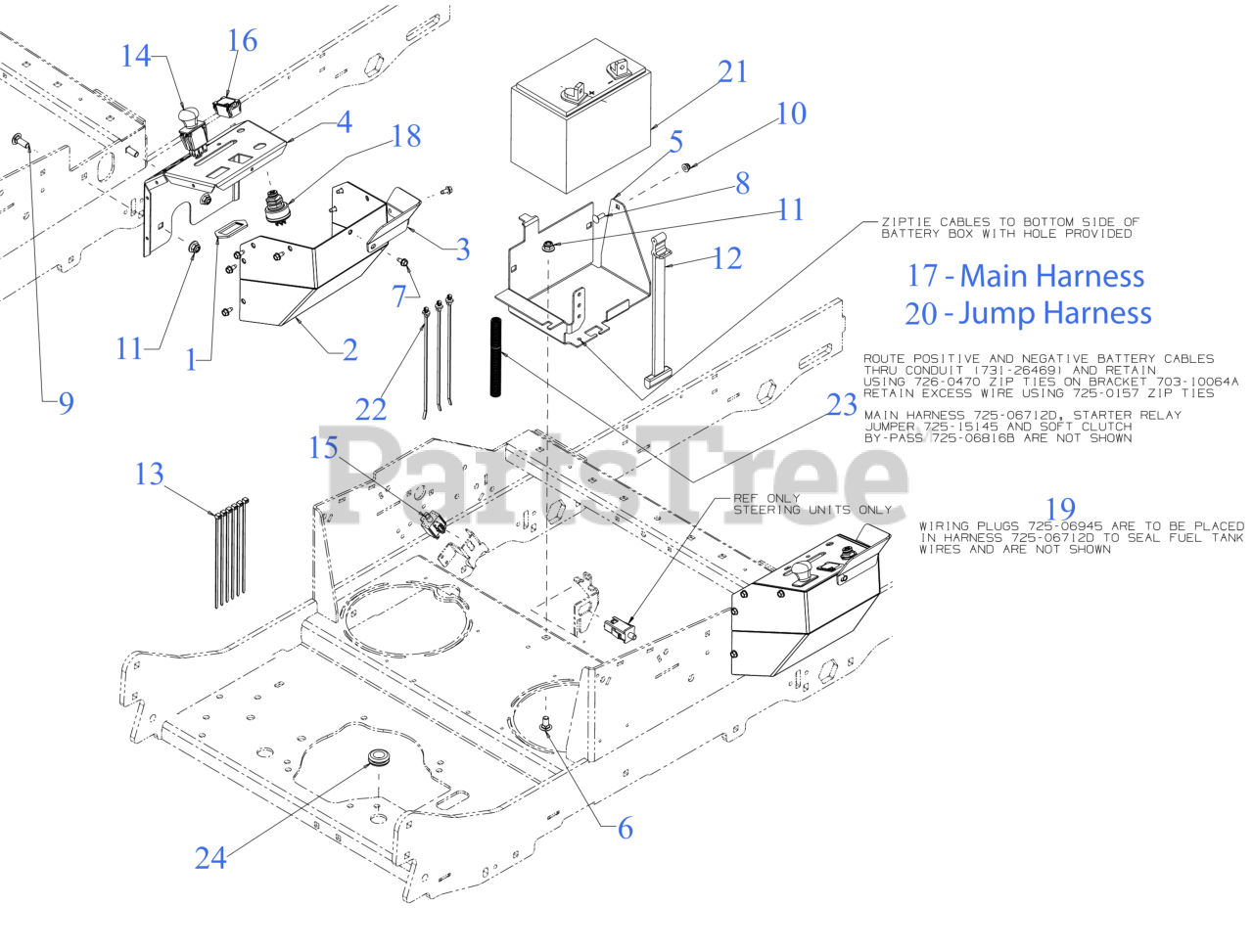

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10877

CONTROL POD COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10877-4021

CONTROL POD COVER - CUB YELLOW 2 (4021)

$60.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10967

THROTTLE DEFLECTOR

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10967-4021

THROTTLE DEFLECTOR - CUB YELLOW 2 (4021)

$18.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-28683

CONTROL POD (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

5

Cub Cadet 703-28759

BATTERY MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

6

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

7

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$29.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, Qty 20+

0

15

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$49.99

$

In Stock, Qty 11

0

16

Cub Cadet 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-06712D

WIRE HARNESS ASSEMBLY (KOH/KAW EFI)

$172.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 925-1718

RELAY

$73.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 925-06854

KEY SWITCH (3 POSITION)

$138.99

$

In Stock, only 2 left!

0

18

Cub Cadet 925-06908

PRO-Z KEY SET

$37.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725-06945

SEALED CAP ASSEMBLY

$8.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725P15145

JUMPER HARNESS (W/RELAY)

$60.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725P17130

BATTERY (230 CCA AGM U1-280)

$117.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 726-0470

CABLE TIE

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-26469

CONVOLUTED CONDUIT 1"

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-04285

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-06816B

BYPASS HARNESS

$17.99

$

Usually ships in 3-6 days

0
