PRO Z 500 KW 554-L (53RIHTTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Frame Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

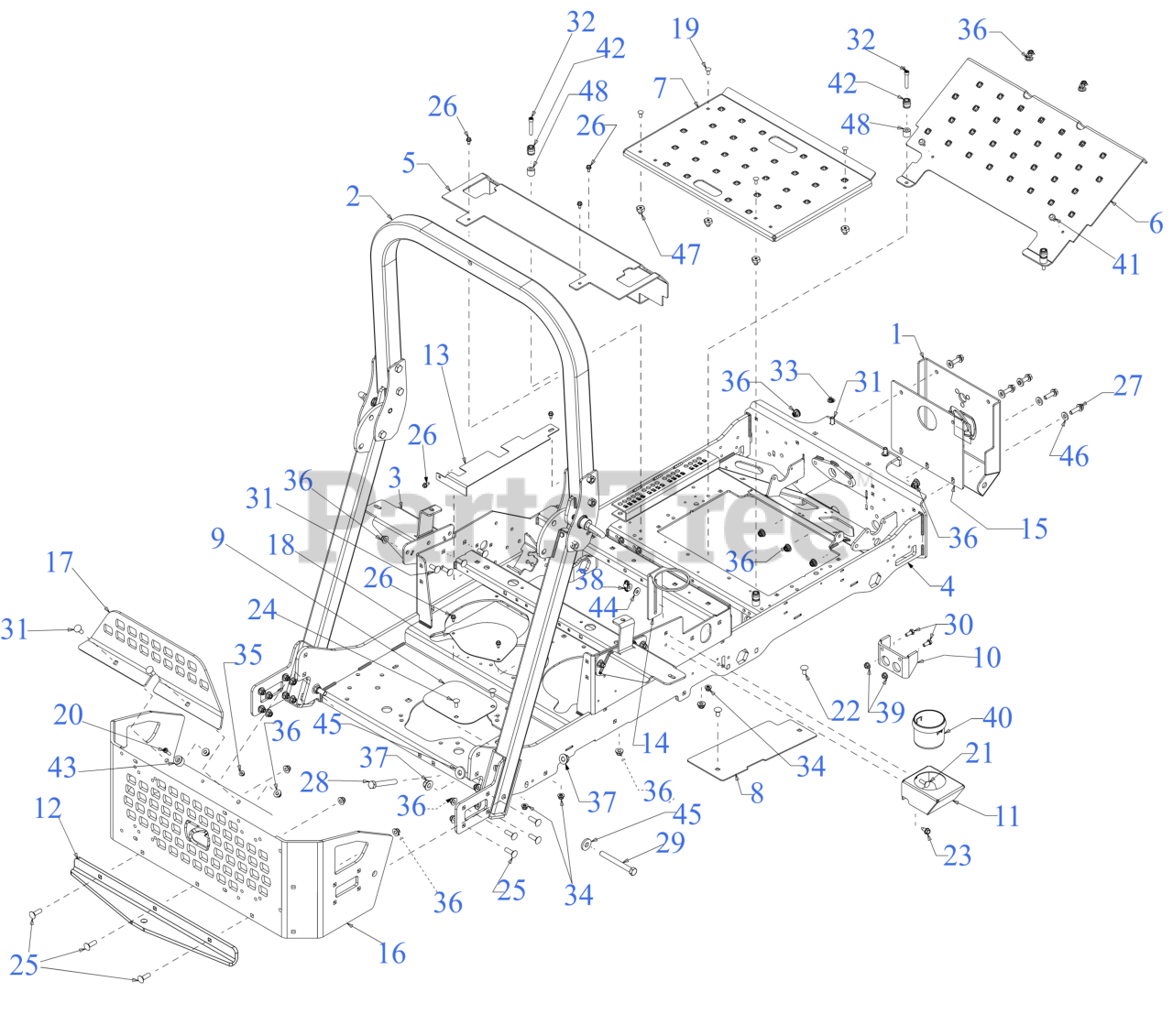

Frame Parts Diagram

  • Title

1

Cub Cadet 680-00372

AXLE COVER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00372-4021

AXLE COVER ASSEMBL - CUB YELLOW 2 (4021)

$110.99

$

Usually ships in 3-6 days

0

$89.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 59A30059150

PRO Z ROPS KIT

$1043.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-01794

FUEL TANK MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$147.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-02782

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

5

Cub Cadet 703-10194

SEAT BOX COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10194-4021

SEAT BOX COVER - CUB YELLOW 2 (4021)

$73.99

$

Usually ships in 3-6 days

0

$59.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10256A

FRONT FOOT PAN

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10256A-4021

FRONT FOOT PAN - CUB YELLOW 2 (4021)

$126.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10286

LAP BAR FLOOR PANEL TRAY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10286-4021

FLOOR TRAY PANEL - CUB YELLOW 2 (4021)

$117.99

$

Usually ships in 3-6 days

0

$101.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10439A

SEAT PANEL COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10439A-4021

SEAT PANEL COVER R - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10445A

ENGINE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10445A-4021

ENGINE PLATE - CUB YELLOW 2 (4021)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10515B

FRONT DECK LIFT MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10537A

LOWER CUP HOLDER

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10663

HITCH BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10663-4021

HITCH BRACKET - CUB YELLOW 2 (4021)

$105.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-10791

BELT COVER PLATE (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10791-4021

SEAT COVER PLATE - - CUB YELLOW 2 (4021)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-10881

UPPER CUP HOLDER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10881-4021

UPPER CUP HOLDER B - CUB YELLOW 2 (4021)

$33.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703E18264

FRONT MOUNTING PLATE SPACER

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-26836B

BUMPER (REAR)

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Currently unavailable

17

Cub Cadet 703-26837

BUMPER (UPPER RR)

Note: *CHOOSE COLOR WHEN ORDERING*

$58.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703E27445

FRAME COVER PLATE

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0166A

MACHINE SCREW 1/4-20:1

$7.49

$

In Stock, only 1 left!

0

21

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

23

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

In Stock, only 4 left!

0

28

Cub Cadet 710-11663

HEX SCREW 1/2-13 x 3.50

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-1807

SCREW 1/2-13 x 4.5 GR 5

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3251

SCREW 5/16-18X1.75 GR5

$5.99

$

In Stock, Qty 13

0

33

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0421

WING NUT 5/16-18

$6.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-04591A

CUP HOLDER

$15.99

$

In Stock, only 1 left!

0

41

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, Qty 20+

0

42

Cub Cadet 735-05131

RADIAL BUMPER

$29.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

46

Cub Cadet 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 15

0

47

Cub Cadet 738-05171

SHOULDER SPACER

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-06472

SPACER

$9.99

$

Usually ships in 3-6 days

0
