PRO Z 500 KW 554-L (53TIHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2019) Deck Covers Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

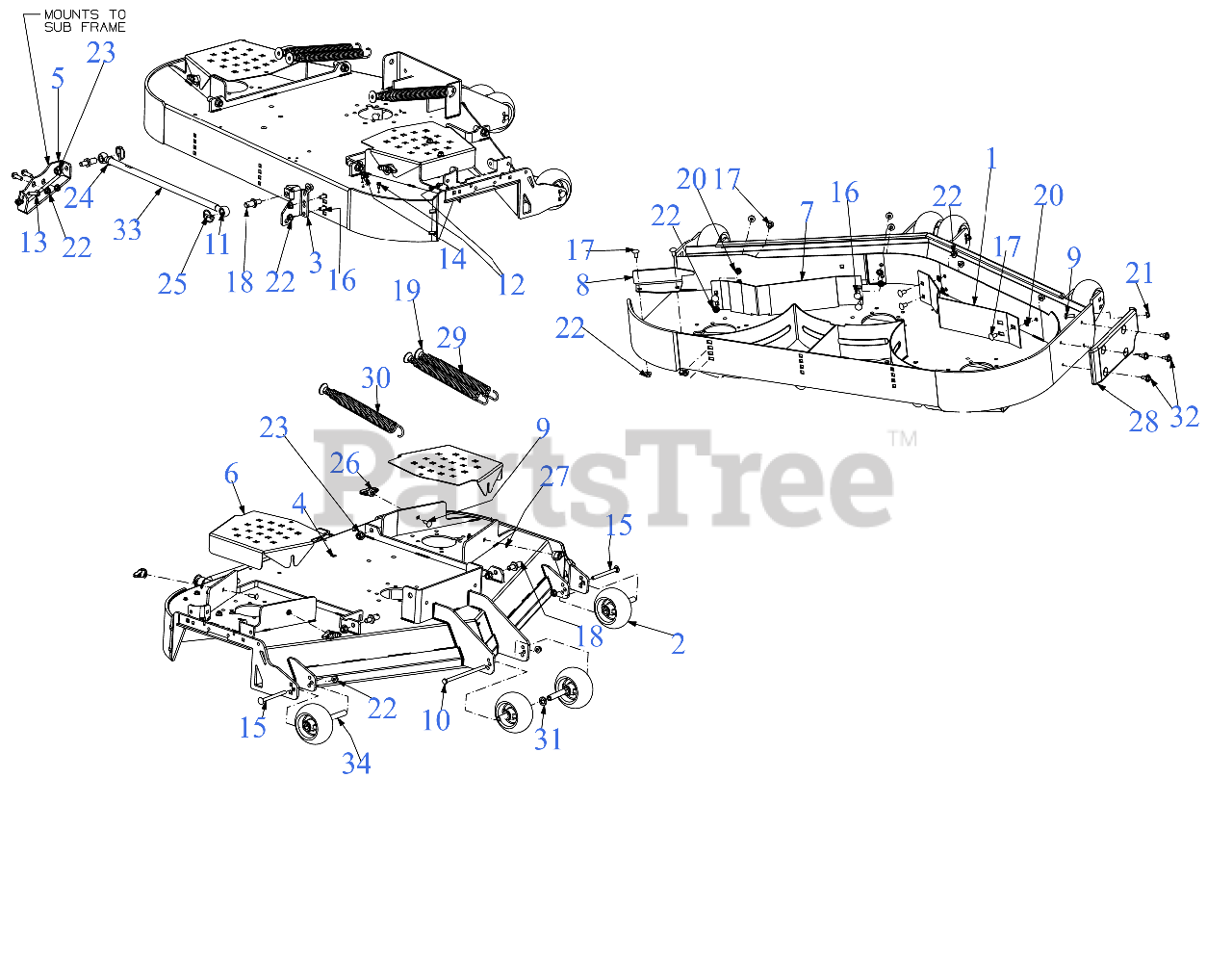

Deck Covers Parts Diagram

  • Title

1

Cub Cadet 02005693-0637

BAFFLE - 54" ADJ
(Superseded to 703-26732-0637)

$33.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 634-05451

5" DIA DECK WHEEL COMPLETE

$22.99

$

In Stock, only 3 left!

0

2

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet OEM-741-0487A

WHEEL BUSHING

Note: Retail Packaged Part

$12.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00352

REAR ROLLER DECK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00352-4021

REAR ROLLER DECK B - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00516

54" FAB DECK SHELL
(Superseded to 680-00516A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00516-4021

YELLOW DECK SHELL 54 - CUB YELLOW 2 (4021)

$1360.99

$

Usually ships in 3-6 days

0

$1360.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00654A

STABILIZER MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10099

DECK BELT COVER
(Superseded to 703-10099B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10099-4021

DECK BELT COVER - CUB YELLOW 2 (4021)

$76.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10552

DECK BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10552-4021

DECK BAFFLE - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-11242

DECK CHUTE BAFFLE
(Superseded to 703-11242-0637)

$18.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$8.99

$

In Stock, Qty 10

0

11

Cub Cadet 710-05355

BOLT 5/8-16 x 2.63

$16.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-06012A

SCREW 3/8-16 x 1.25 GR5

$3.49

$

In Stock, Qty 19

0

14

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$15.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 711-05604

PIN

$10.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-06667

SPRING INSERT SCREW

$37.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

NUT

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3015

HEX JAM NUT
(Superseded to 712-3015)

$4.49

$

In Stock, Qty 16

0

25

Cub Cadet 753-04070

LYNCH PIN .1875

$9.49

$

In Stock, Qty 20+

0

26

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.49

$

In Stock, Qty 20+

0

27

Cub Cadet 726-0201

PUSH NUT

$6.49

$

In Stock, Qty 20+

0

28

Cub Cadet 731-11926

DECK SKID PLATE (LH)

$46.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-05476

EXTENTION SPRING 1.20 x 11.35

$32.99

$

In Stock, Qty 8

0

30

Cub Cadet 732-05492

EXTENSION SPRING 1.44 OD x 11.36

$27.99

$

In Stock, only 2 left!

0

31

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, only 3 left!

0

32

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06689

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 747-06689-4021

TUBE - CUB YELLOW 2 (4021)

$38.99

$

In Stock, Qty 6

0

$33.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$17.99

$

In Stock, Qty 20+

0
