PRO Z 500 KW 554-L (53TIHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2019) Transmission (RH) Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

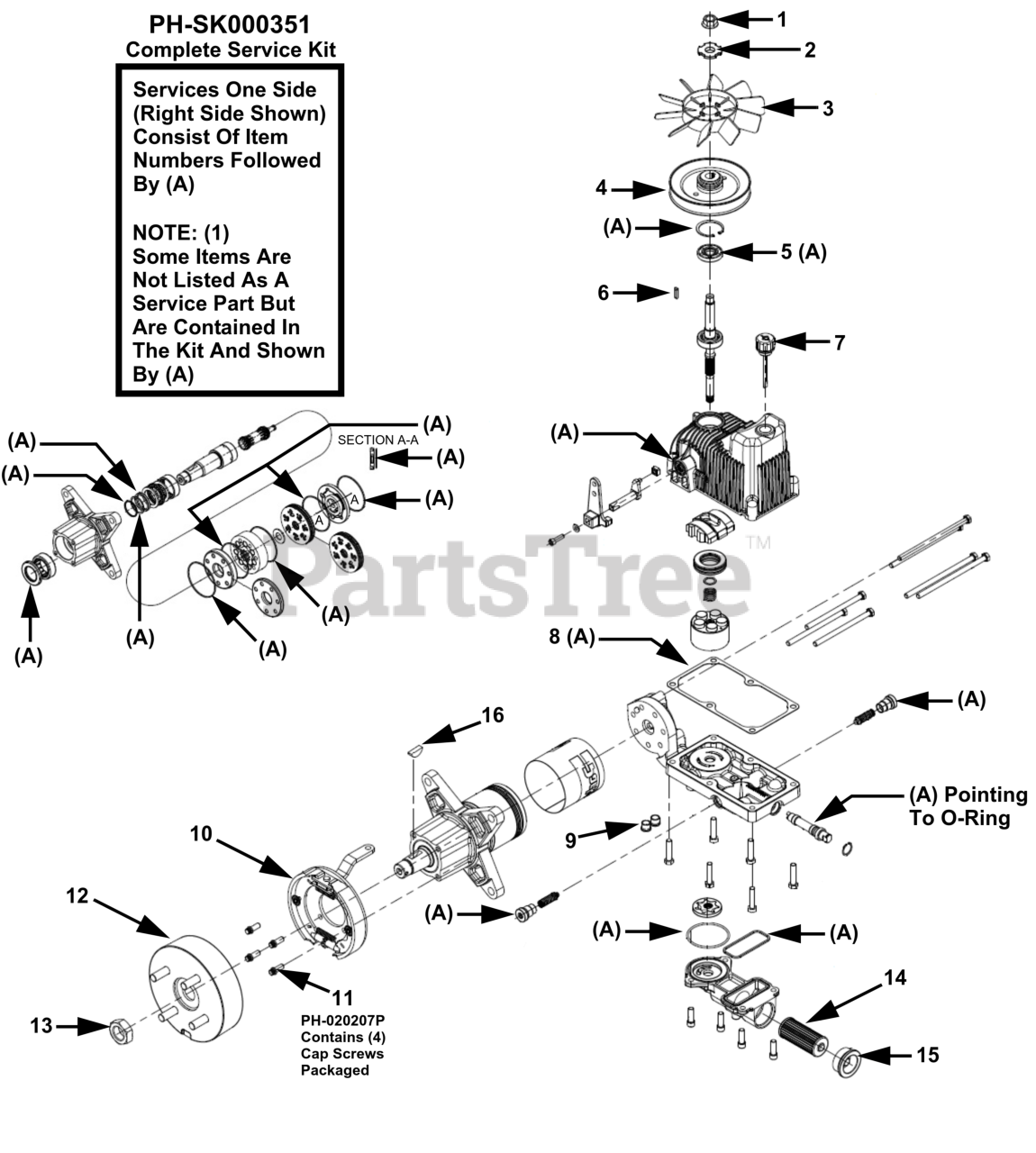

Transmission (RH) Parts Diagram

  • Title

1

Cub Cadet PH-025167

NUT-FLANGE 1/2-20

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet PH-477036

SPACER-FAN

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet PH-420004

FAN-7"

$89.99

$

In Stock, only 1 left!

0

4

Cub Cadet PH-403007

PULLEY-5"

$179.99

$

Usually ships in 3-6 days

0

5

Cub Cadet PH-478003

SEAL

$39.99

$

In Stock, only 2 left!

0

6

Cub Cadet PH-039055

SQUARE SHOULDER KEY WAY

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet PH-411134

BREATHER
(Superseded to PH-411157)

$123.99

$

Usually ships in 3-6 days

0

8

Cub Cadet PH-034010

GASKET

$48.99

$

Usually ships in 3-6 days

0

9

Cub Cadet PH-036023-006

PLUG-MAGNETIC HEX

$62.99

$

Usually ships in 3-6 days

0

10

Cub Cadet PH-490169

BRAKE ASSEMBLY-ON HOLE LEVER

$476.99

$

Usually ships in 3-6 days

0

11

Cub Cadet PH-020207P

SCREW-CAP (QTY 4)

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet PH-490218

DRUM-4 BOLT BRAKE

$436.99

$

Usually ships in 3-6 days

0

13

Cub Cadet PH-025113

NUT-SLOTTED

$29.99

$

Usually ships in 3-6 days

0

14

Cub Cadet PH-411154

FILTER

$74.99

$

Usually ships in 3-6 days

0

15

Cub Cadet PH-036325

PLUG & O-RING ASSE

$67.99

$

Usually ships in 3-6 days

0

16

Cub Cadet PH-038016

WOODRUFF KEY

$9.99

$

In Stock, only 1 left!

0

17

Cub Cadet PH-420104

ROTATING BRACKET

$17.99

$

Usually ships in 3-6 days

0

A

Cub Cadet PH-SK000351

COMPLETE SEAL SERVICE KIT

$275.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07197A

TRANSMISSION / MOTOR ASSEMBLY (RH)
(Superseded to 918-07197B)

$2363.99

$

Usually ships in 3-6 days

0

Cub Cadet PH-038016

WOODRUFF KEY

$9.99

$

In Stock, only 1 left!

0
