PRO Z 500 KW 554-L (53TIHJTN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2022) Drive Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

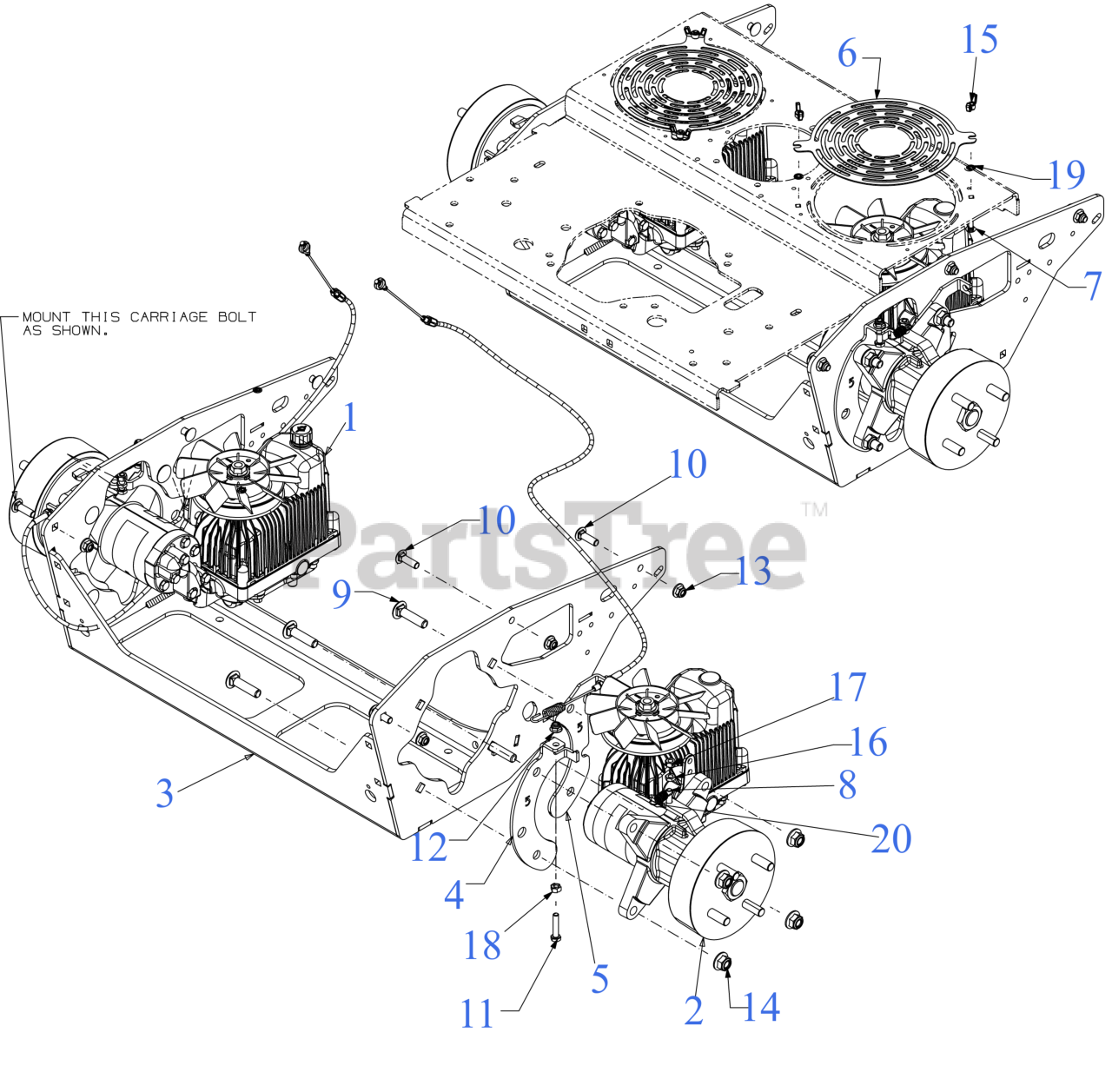

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07195B

TRANSMISSION / MOTOR ASSEMBLY (LH)

Note: (See Separate Breakdown)

$2229.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07197B

TRANSMISSION / MOTOR ASSEMBLY (RH)

Note: (See Separate Breakdown)

$2229.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00358E

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$472.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09657A

SPRING BRAKE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09657A-0637

SPRING BRAKE MOUNT - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09658A

BRAKE CABLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09658A-0637

BRAKE CABLE BRACKE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-27442

TRANSMISSION COVER PLATE

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 16

0

9

Cub Cadet 710-04191

CARRIAGE BOLT 1/2-13 GR5

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-05057

WING NUT 1/4-20

$5.49

$

In Stock, Qty 9

0

16

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 712-3009

HEX NUT

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3010

HEX NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0
