PRO Z 500 KW 554-S (53RIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Engine Accessories Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

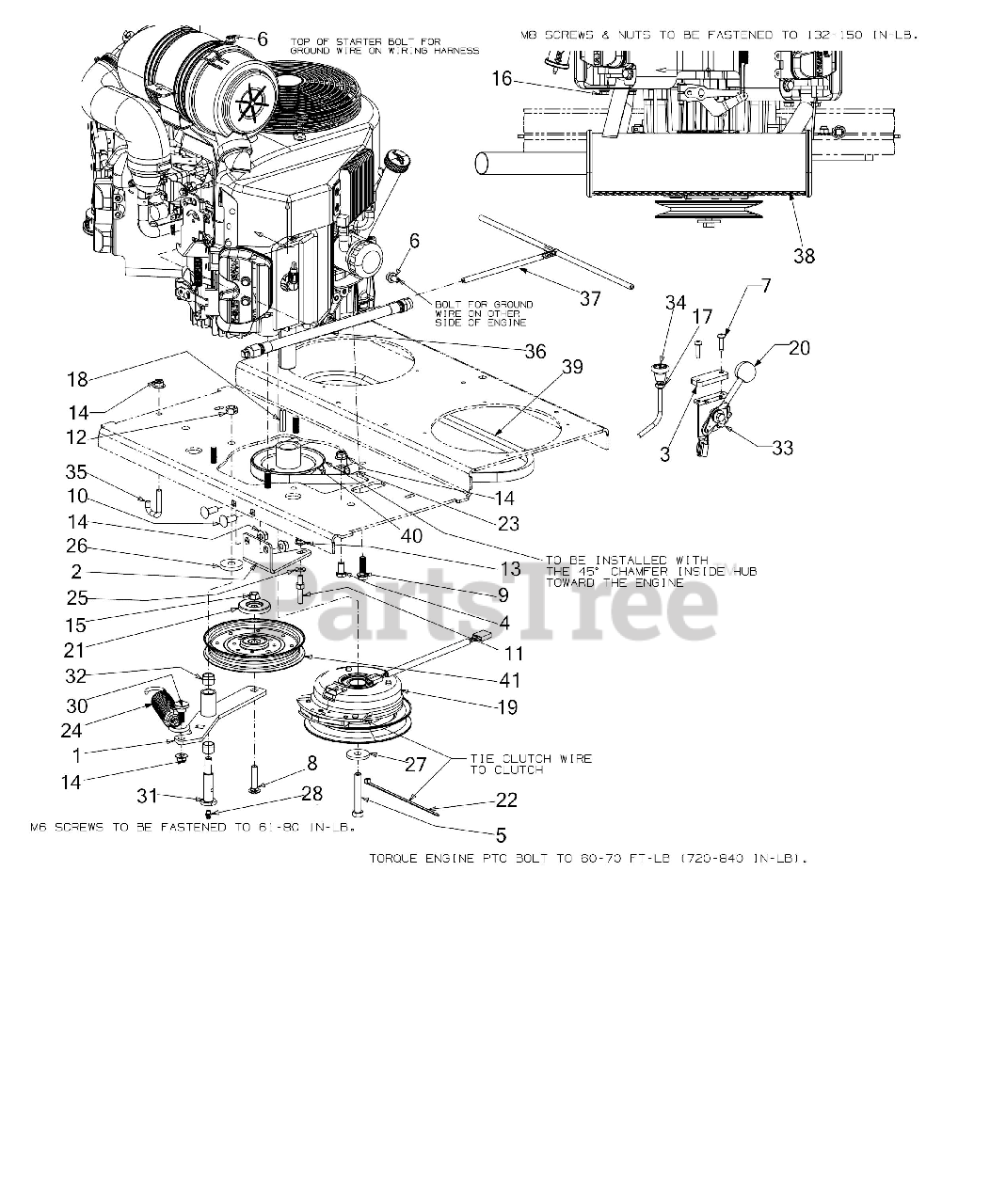

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 680-00227A-4021

TRANSMISSION IDLER BRACKET
(Superseded to 680E00227A)

$31.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08607-4021

RETAINER BRACKET
(Superseded to 703-08607-0637)

$23.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10399-0637

THROTTLE CABLE SPACER

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

5

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$10.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-06359

SCREW 3/8-16 x 1.25 GR5
(Superseded to 710-06359A)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 711-1637

STUD

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0290

HEX NUT

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04312

HEX FLANGE NUT

$3.49

$

In Stock, only 2 left!

0

17

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 917-05184

ELECTRIC PTO CLUTCH

$464.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 720-05110

BALL KNOB

$20.99

$

In Stock, only 3 left!

0

21

Cub Cadet 721-04516

PULLEY CAP

$13.99

$

In Stock, only 1 left!

0

22

Cub Cadet 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

23

Cub Cadet 726-04124

J TYPE CLIP

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-05446

EXTENSION SPRING W/HOOK

$22.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

26

Cub Cadet 736-3017

FLAT WASHER 47 x 1.50 x .225

$10.99

$

In Stock, Qty 6

0

27

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.49

$

In Stock, Qty 17

0

28

Cub Cadet 937-0146

GREASE FITTING

$5.49

$

In Stock, only 2 left!

0

30

Cub Cadet 738-1126

SHOULDER SCREW .625 x .302 x 3/8-16

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-3102

SHOULDER BOLT 7/16-14

$19.99

$

In Stock, Qty 15

0

32

Cub Cadet 741-04555

SLEEVE BEARING

$15.99

$

In Stock, Qty 11

0

33

Cub Cadet 946-05260

THROTTLE CABLE 59"

$78.99

$

In Stock, only 2 left!

0

34

Cub Cadet 946-05341

CHOKE CABLE
(Superseded to 946-05341B)

$64.99

$

In Stock, Qty 5

0

35

Cub Cadet 747-05707

ROD SPRING HOOK

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10291A

OIL DRAIN HOSE
(Superseded to 751-10291C)

$49.99

$

In Stock, Qty 6

0

37

Cub Cadet 751-12282A

ROLLOVER VENT HOSE ASSEMBLY

$71.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 951-15132

KAWASAKI MUFFLER

$344.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 954-05037

TRANSMISSION BELT 61.5
(Superseded to 954-05037A)

$47.99

$

In Stock, only 1 left!

0

40

Cub Cadet 756-04382

PULLEY - PUMP DRIVE

$47.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 756-04487

IDLER PULLEY

$62.99

$

In Stock, Qty 5

0

Cub Cadet 751-11232-24

HEAT SHIELD

Note: (NOT SHOWN)

$23.99

$

Usually ships in 3-6 days

0
