PRO Z 500 KW 554-S (53RIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2016) Front Axle Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

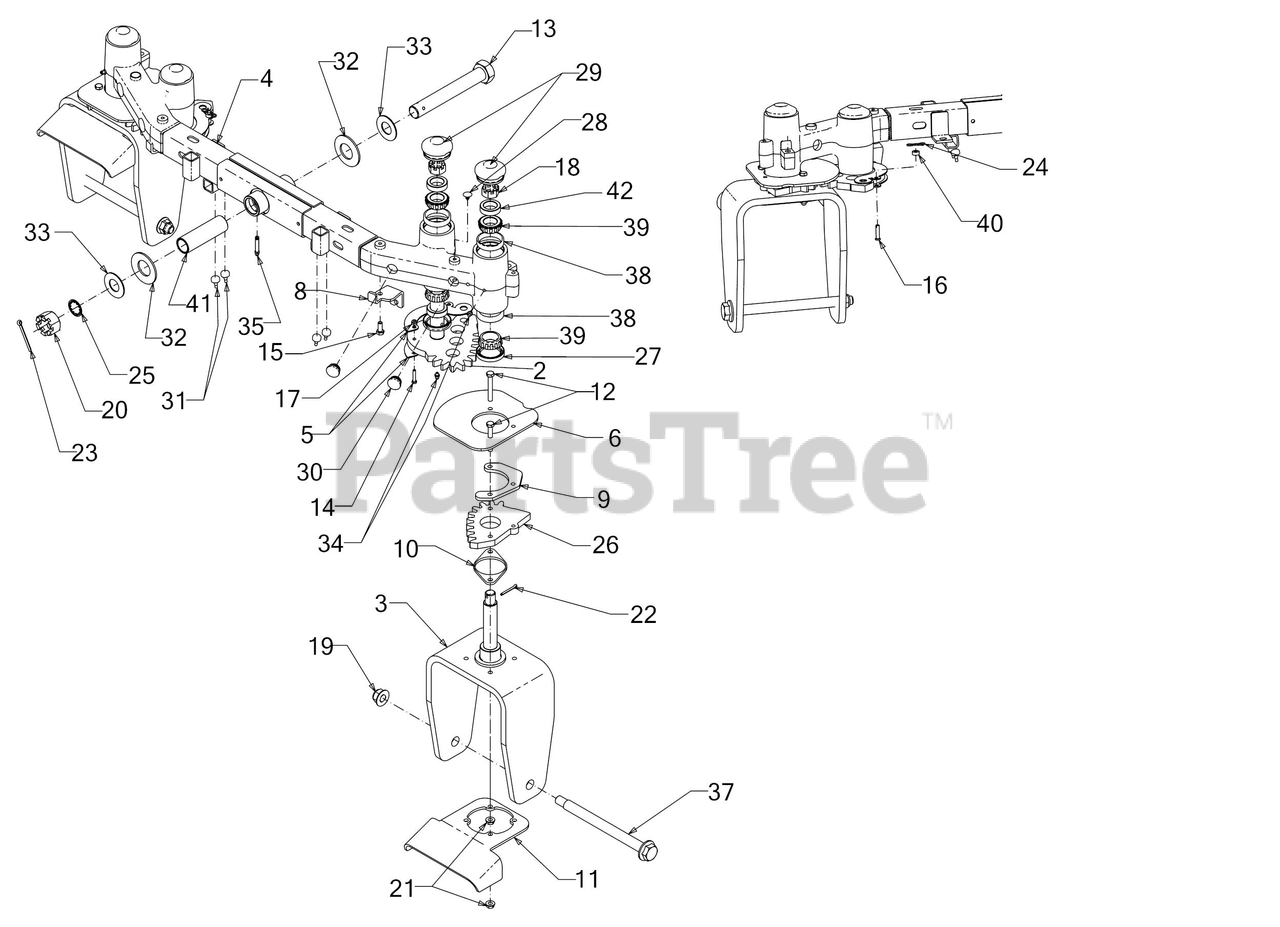

Front Axle Parts Diagram

  • Title

2

Cub Cadet 980-00155

STEERING GEAR (RH)

$139.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 980-00154

STEERING GEAR (LH)

Note: (Not Shown)

$139.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00417-4021

FRONT YOKE ASSEMBLY (STEERING)
(Superseded to 680-00417A-4021)

$213.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00472-4021

AXLE ASSEMBLY

$667.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10040-0637

CABLE GEAR MOUNTING BRACKET

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10352-4021

GEAR COVER

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10387A-4021

CABLE MOUNTING BRACKET (RH)

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10386A-4021

CABLE MOUNTING BRACKET (LH)

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10389-4021

GEAR SPACER PLATE

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10546

LOWER GEAR SPACER PLATE

$17.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10929-4021

WHEEL DEFLECTOR BRACKET

$58.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 710-05189B

HEX HEAD SCREW 1-14 X 7 GR5
(Superseded to 710-05189C)

$55.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1194

SCREW #10-24 x 1.00 GR5.1

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$6.49

$

In Stock, only 3 left!

0

17

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$10.99

$

In Stock, Qty 5

0

19

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.49

$

In Stock, Qty 10

0

20

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$29.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0211

COTTER PIN

$3.99

$

In Stock, Qty 6

0

24

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

25

Cub Cadet 716-04191

RETAINING RING

$3.99

$

In Stock, Qty 8

0

26

Cub Cadet 917-04822

STEERING GEAR YOKE

$66.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-04462

SEAL

$10.99

$

In Stock, Qty 19

0

28

Cub Cadet 726-04072A

RATCHET CLIP

$3.49

$

In Stock, Qty 13

0

29

Cub Cadet 731-07348

AXLE GREASE CAP

$8.49

$

In Stock, Qty 6

0

30

Cub Cadet 735-0246A

END PLUG

$5.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-04604

BELL WASHER 1.25ID x 2.5 x .180

$7.99

$

In Stock, Qty 13

0

33

Cub Cadet 736-04605

FLAT WASHER 1.0 x 2.0 x .075

$3.99

$

In Stock, Qty 8

0

34

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.49

$

In Stock, Qty 18

0

35

Cub Cadet 737-04352

GREASE FITTING

$14.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-05173

SHOULDER BOLT .750 X 8.175:5/8-11

$39.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 741-04548

BEARING CUP

$8.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-04549

BEARING CONE

$18.99

$

In Stock, Qty 20+

0

40

Cub Cadet 750-05297

SPACER

$3.99

$

In Stock, Qty 5

0

41

Cub Cadet 750-05438

SPACER

$23.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 750-05600

SPACER

$6.99

$

In Stock, only 4 left!

0
