Cub Cadet PRO Z 500 KW 554-S (53RIHTUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Engine Accessories Parts Lookup with Diagrams

1

Cub Cadet 680E02788

IDLER BRACKET

$61.99

$

Usually ships in 0 days

2

Cub Cadet 703-10399A

THROTTLE CABLE SPACER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10399A-0637

BLACK SPACERTHROTLE C - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

$7.49

$

Usually ships in 3-6 days

3

Cub Cadet 703-28804

CLUTCH RETAINER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$18.99

$

Usually ships in 0 days

4

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$8.49

$

In Stock, Qty 20+

5

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 8

6

Cub Cadet 710-04157

CARRIAGE BOLT 3/8-16 x 2

$9.49

$

In Stock, Qty 5

7

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

Usually ships in 3-6 days

8

Cub Cadet 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

9

Cub Cadet 710-05074

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

10

Cub Cadet 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

In Stock, only 2 left!

11

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

12

Cub Cadet 711-1637

STUD

$35.99

$

In Stock, only 2 left!

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

14

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

15

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

16

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

17

Cub Cadet 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, Qty 18

18

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

19

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$7.49

$

In Stock, only 3 left!

20

Cub Cadet 917-05184

ELECTRIC PTO CLUTCH

$529.99

$

Usually ships in 3-6 days

21

Cub Cadet 720-05110

BALL KNOB

$23.99

$

In Stock, only 3 left!

22

Cub Cadet 721-04516

PULLEY CAP

$15.99

$

In Stock, Qty 6

23

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

24

Cub Cadet 726-0273

MOUNTING CLAMP

$7.99

$

In Stock, only 1 left!

25

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

26

Cub Cadet 732-05446A

EXTENSION SPRING W/HOOK

$24.99

$

In Stock, Qty 6

27

Cub Cadet 736-0264

FLAT WASHER

$7.49

$

In Stock, only 2 left!

28

Cub Cadet 736-0272

FLAT WASHER .510 x .995

$5.49

$

Usually ships in 3-6 days

29

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$10.99

$

In Stock, Qty 10

31

Cub Cadet 738-05046

SHOULDER SCREW .625 x .875 x 3/18

$4.99

$

In Stock, only 2 left!

32

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$8.49

$

In Stock, Qty 9

33

Cub Cadet 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 8

34

Cub Cadet 946-05260

THROTTLE CABLE 59"

$89.99

$

In Stock, only 4 left!

35

Cub Cadet 946-05341B

CHOKE CABLE

$73.99

$

In Stock, Qty 8

36

Cub Cadet 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 3 left!

37

Cub Cadet 751-10291C

OIL DRAIN HOSE

$

Not available 

38

Cub Cadet 751-11232A-24

HEAT SHIELD 24"

$100.99

$

Usually ships in 3-6 days

39

Cub Cadet 751-12282A

ROLLOVER VENT HOSE ASSEMBLY

$80.99

$

Usually ships in 3-6 days

40

Cub Cadet 951-15132

KAWASAKI MUFFLER

$392.99

$

Usually ships in 3-6 days

41

Cub Cadet 756-04511B

FLAT IDLER PULLEY

$56.99

$

In Stock, Qty 20+

42

Cub Cadet 756-06903

ENGINE PULLEY 5.425

$103.99

$

Usually ships in 0 days

Cub Cadet 490-000-C044

Cub Cadet 10W30 Engine Oil 32OZ

$11.99

$

In Stock, Qty 20+

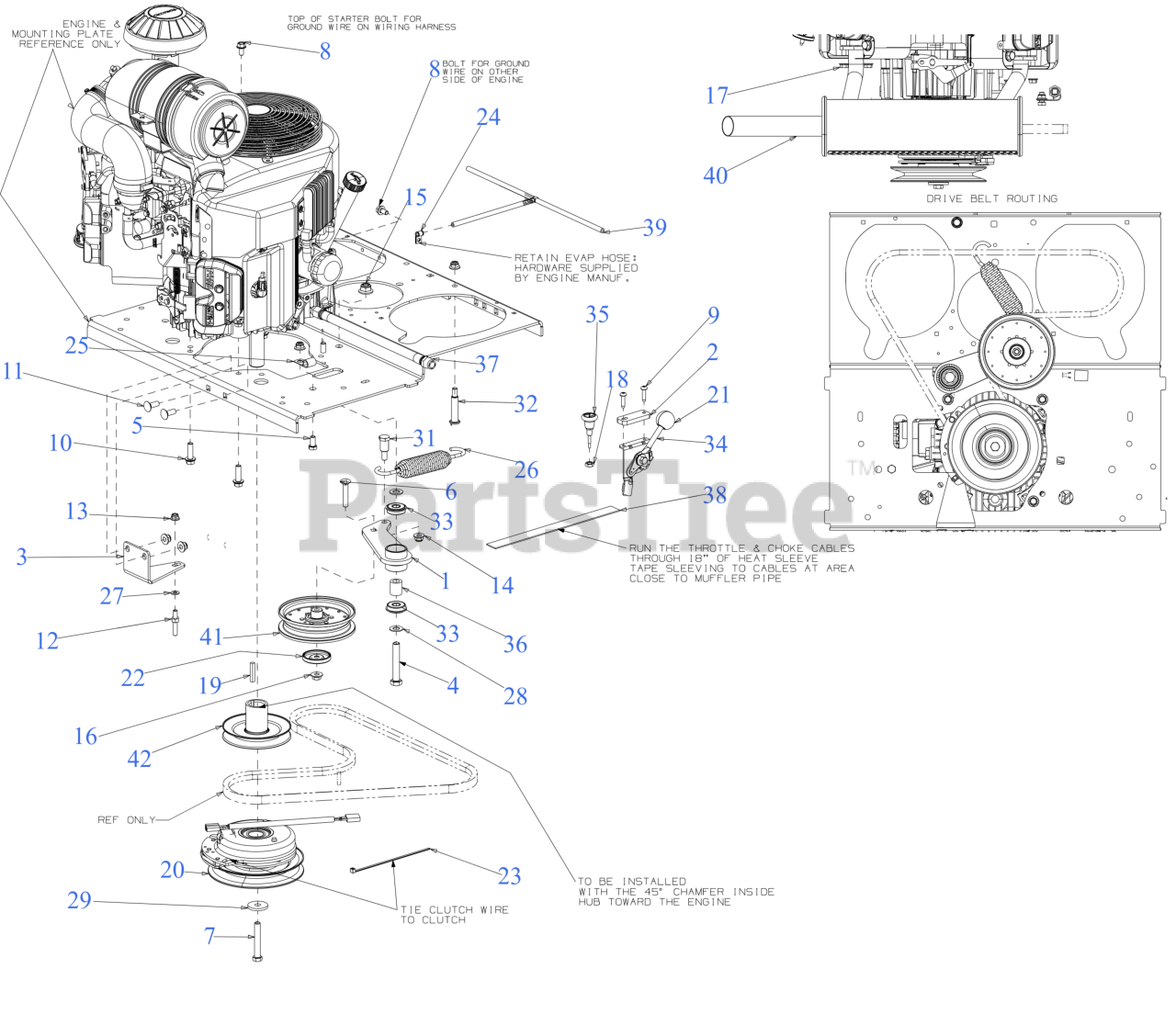

PRO Z 500 KW 554-S (53RIHTUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Engine Accessories Parts Diagram

Engine Accessories Parts Diagram
