PRO Z 500 KW 554-S (53TIHJUN050) - Cub Cadet 54" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Controls Parts Diagram

54" Pro Z Series Zero-Turn Mower, Kawasaki

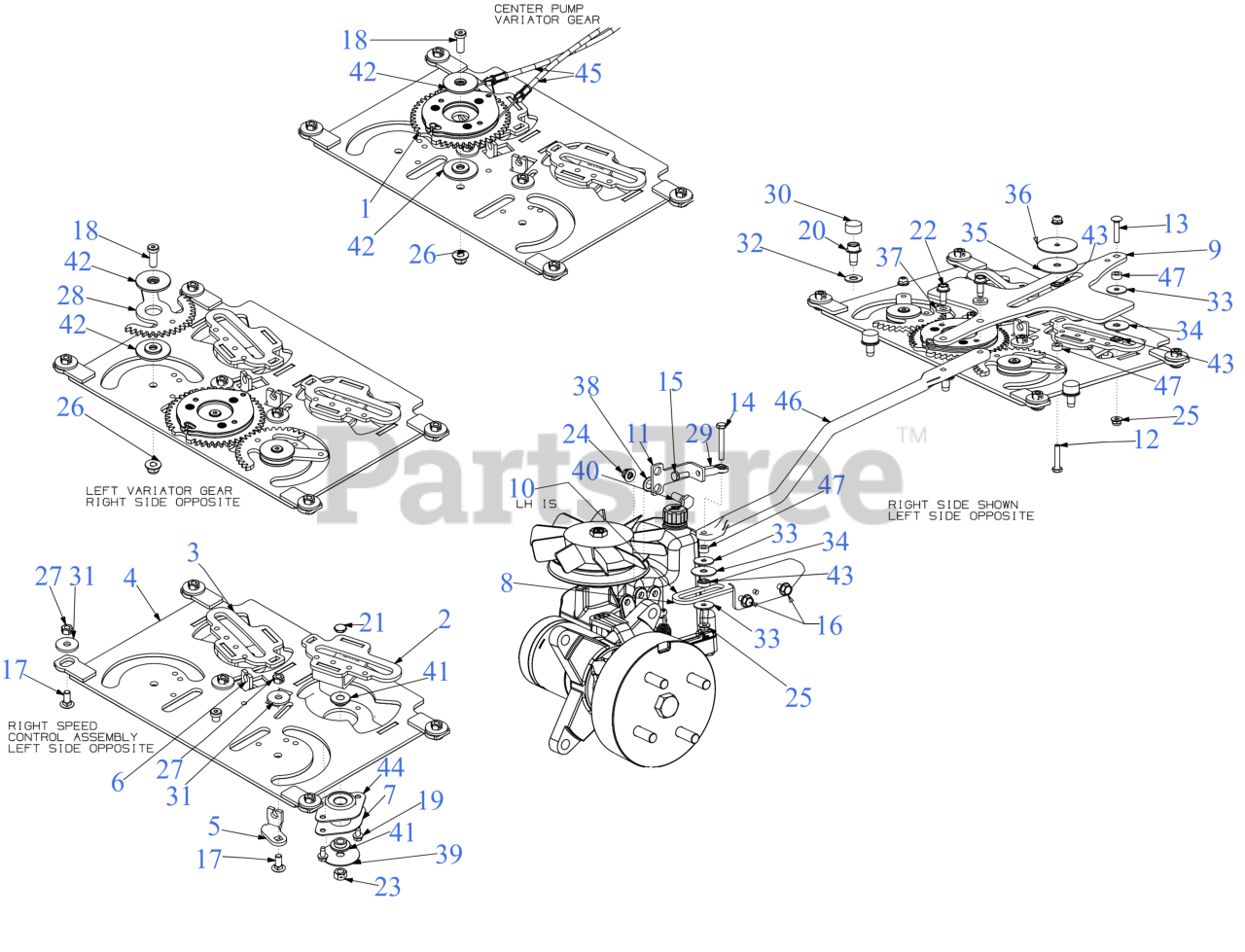

Controls Parts Diagram

  • Title

1

Cub Cadet 680Z00144

GEAR-PUMP

$61.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680Z00367

PUMP CONTROL CAM ASSEMBLY (RH)

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680Z00368

PUMP CONTROL CAM ASSEMBLY (LH)

$58.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680E00369

PUMP CONTROL MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$164.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703E08559

STEERING CABLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$171.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703E08561

STEERING CABLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$171.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703E08814

RETAINING PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10120A

PUMP ARM GUIDE BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$31.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10131

STEERING PUMP ACTUATOR ARM

$49.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10137

PUMP ARM GUIDE BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10137-4021

PUMP ARM GUIDE BRA - CUB YELLOW 2 (4021)

$34.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703Z10139A

PUMP CONTROL BRACKET

$34.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0111

CARRIAGE BOLT 1/4-20 x 1.25 Gr5

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-0412

HEX SCREW 1/4-28 x .75

$5.99

$

In Stock, Qty 9

0

16

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-05340

SCREW 3/8-16 x 1

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 710-0723

SCREW 3/8-16 x 1.25 GR5

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0375

HEX NUT

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3009

HEX NUT

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 917-05317

STEERING GEAR YOKE

$23.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 723-04077

END ROD (RH)

$22.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-1490

SLIDE CAP

$4.49

$

In Stock, Qty 5

0

31

Cub Cadet 736-0231

FLAT WASHER

$4.99

$

In Stock, only 4 left!

0

32

Cub Cadet 736-0300

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-04511

FLAT WASHER

$3.49

$

In Stock, Qty 15

0

34

Cub Cadet 736-04596

WASHER .355X1.25X.06THK

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-04630

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-04631

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 936-3008

FLAT WASHER.344X.75X.1

$6.99

$

In Stock, only 1 left!

0

38

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0296

SHOULDER SCREW .437

$4.49

$

In Stock, Qty 5

0

41

Cub Cadet 738-04154

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

42

Cub Cadet 738-04453

SHOULDER SPACER

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 741-04425

BALL BEARING .25 x .625 SPCL

$14.99

$

In Stock, only 1 left!

0

44

Cub Cadet 741-04566

BALL BEARING

$15.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 946-05279

TRANSMISSION CONTROL LINK CABLE
(Superseded to 946-05279A)

$72.99

$

In Stock, Qty 7

0

46

Cub Cadet 747-05649A

CONTROL PUMP ROD

$38.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 5

0
