PRO Z 700 KW 760-L (53TIHKTV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2022) Transmission (RH) Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

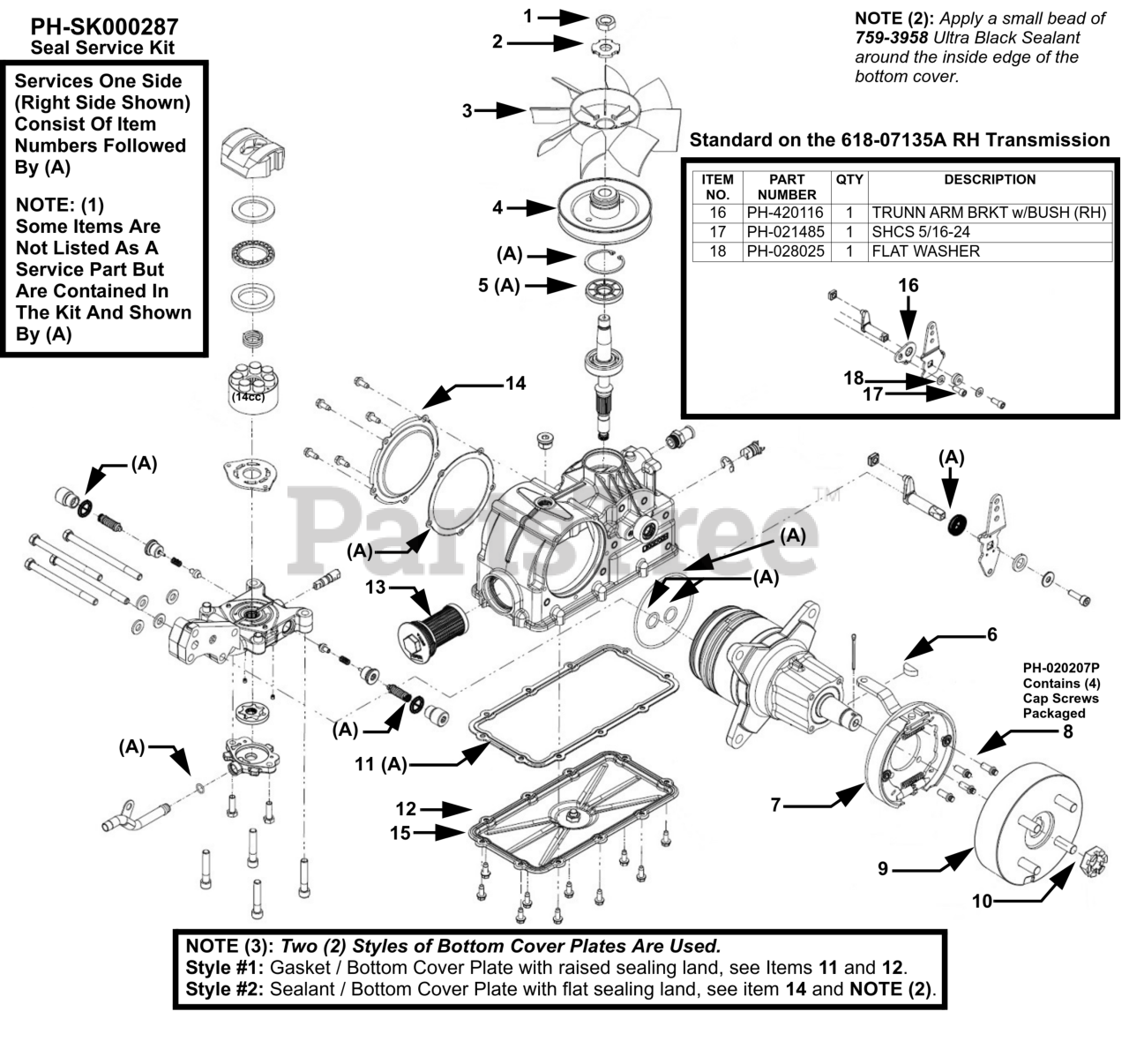

Transmission (RH) Parts Diagram

  • Title

1

Cub Cadet PH-025164

NUT

$8.99

$

Usually ships in 3-6 days

0

2

Cub Cadet PH-477370

SPACER

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet PH-420067

FAN

$112.99

$

Usually ships in 3-6 days

0

4

Cub Cadet PH-403856

PULLEY

$179.99

$

Usually ships in 3-6 days

0

5

Cub Cadet PH-478086

SEAL KIT

$

$

Not available

6

Cub Cadet PH-038016

WOODRUFF KEY

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet PH-490169

BRAKE ASSEMBLY-ON HOLE LEVER

$476.99

$

Usually ships in 3-6 days

0

8

Cub Cadet PH-020207P

SCREW-CAP (QTY 4)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet PH-490218

DRUM-4 BOLT BRAKE

$436.99

$

Usually ships in 3-6 days

0

10

Cub Cadet PH-025113

NUT-SLOTTED

$29.99

$

Usually ships in 3-6 days

0

11

Cub Cadet PH-034008

BOTTOM COVER GASKET

$61.99

$

Usually ships in 3-6 days

0

12

Cub Cadet PH-402136

BOTTOM COVER

$69.99

$

Usually ships in 3-6 days

0

13

Cub Cadet PH-411135S

FILTER KIT

$75.99

$

In Stock, Qty 10

0

14

Cub Cadet PH-402132

SIDE COVER PLATE

$118.99

$

Usually ships in 3-6 days

0

15

Cub Cadet PH-402139

BOTTOM COVER

$210.99

$

Usually ships in 3-6 days

0

16

Cub Cadet PH-420116

TRUNNION ARM BRACKET (RH)

Note: Standard on the 918-07135A RH Transmission

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet PH-021485

CAP SCREW 5/16-24

Note: Standard on the 918-07135A RH Transmission

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet PH-028025

FLAT WASHER

Note: Standard on the 918-07135A RH Transmission

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet PH-420072

BRACKET-ROTATING

Note: Standard on the 918-07135A RH Transmission

$33.99

$

Usually ships in 3-6 days

0

A

Cub Cadet PH-SK000287

SEAL SERVICE KIT

Note: Services One Side (Right Side Shown)

$190.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07135

TRANSMISSION ASSEMBLY PARKER (RH)
(Superseded to 918-07135B)

Note: (2016 - April 28, 2019)

$2888.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-07135A

TRANSMISSION ASSEMBLY PARKER (RH)
(Superseded to 918-07135B)

Note: (April 29, 2019 - After)

$2888.99

$

Usually ships in 3-6 days

0
