PRO Z 700 KW 772-L (53RIHTTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2024) Front Axle Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

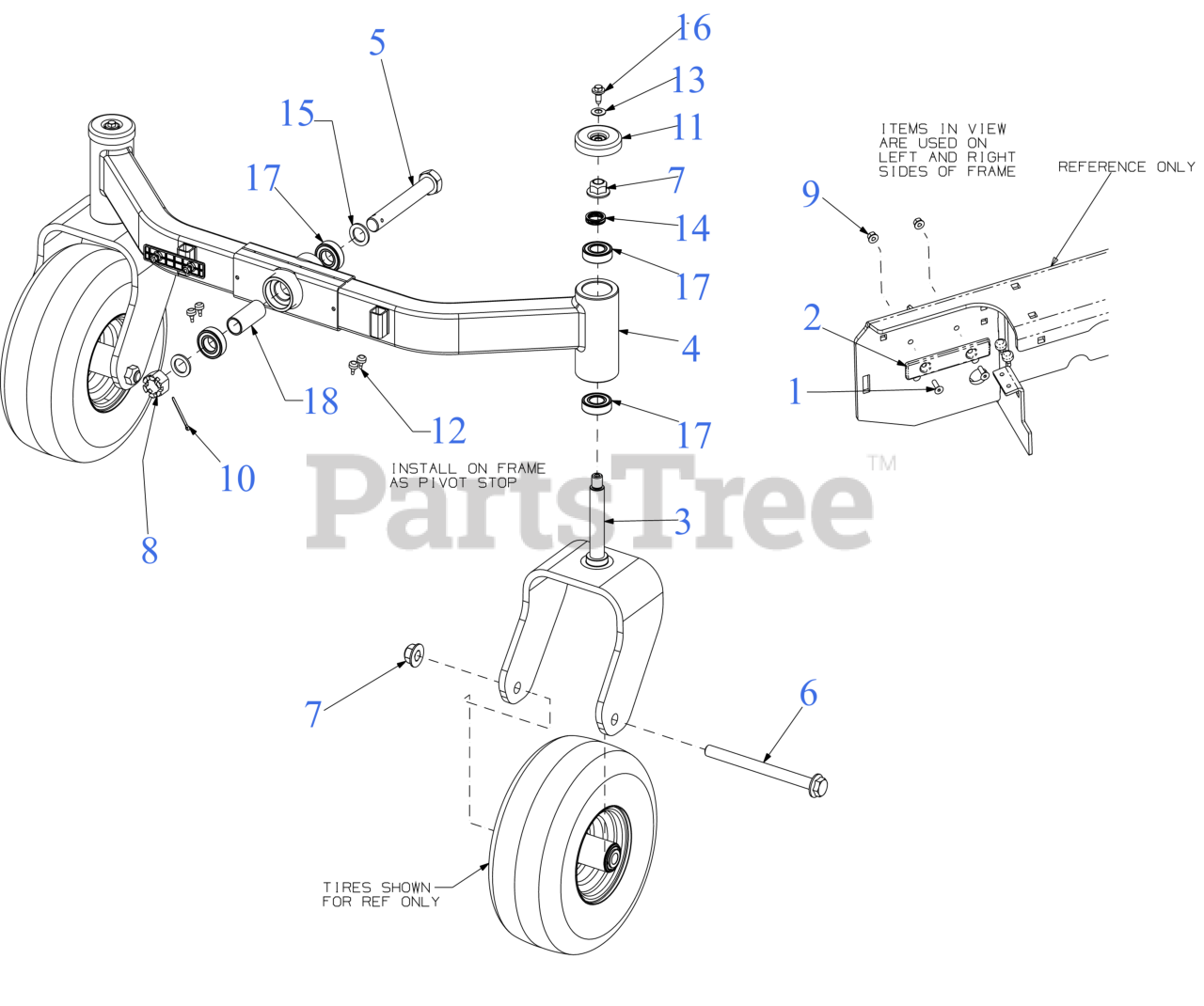

Front Axle Parts Diagram

  • Title

1

Cub Cadet 02003505

SCREW-FLAT HEAD CA

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 02003749

PLATE-LIFT WEAR

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00509A

FRONT CASTER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$190.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00552A

FRONT AXLE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

680-00552A-4021

Cub Cadet 680-00552A-4021

YELLOW FRONT AXLE ASS - CUB YELLOW 2 (4021)

$847.99

$

Usually ships in 3-6 days

0

$685.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05189C

HEX HEAD SCREW (1-14 x 7 GR5)

$62.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-05388

SCREW 3/4-16 x 9.00 GR5

$34.99

$

In Stock, only 3 left!

0

7

Cub Cadet 712-04338A

FLANGE LOCK NUT 3/4-16 TOP LOCK

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$33.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

0

10

Cub Cadet 714-05381

SPLIT COTTER PIN 5/32 X 2.00

$1.99

$

Usually ships in 0 days

0

11

Cub Cadet 721-04950

AXLE CAP 3"

$20.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, only 3 left!

0

13

Cub Cadet 736-0253

BELL WASHER

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-05033A

WAVE WASHER

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-05782

FLAT WASHER 1.005 x 1.570 x 0.125

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet 738-04149

SCREW

$4.99

$

In Stock, Qty 14

0

17

Cub Cadet 741-0941A

BALL BEARING (1.0 x 52 x 15)

$18.99

$

In Stock, Qty 20+

0

18

Cub Cadet 750-06782A

SPACER 1.00 x 1.25 x 2.99

$9.49

$

Usually ships in 3-6 days

0
