PRO Z 900 EFI 960-S (53REHMUV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kohler EFI (2016) Electrical Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kohler EFI

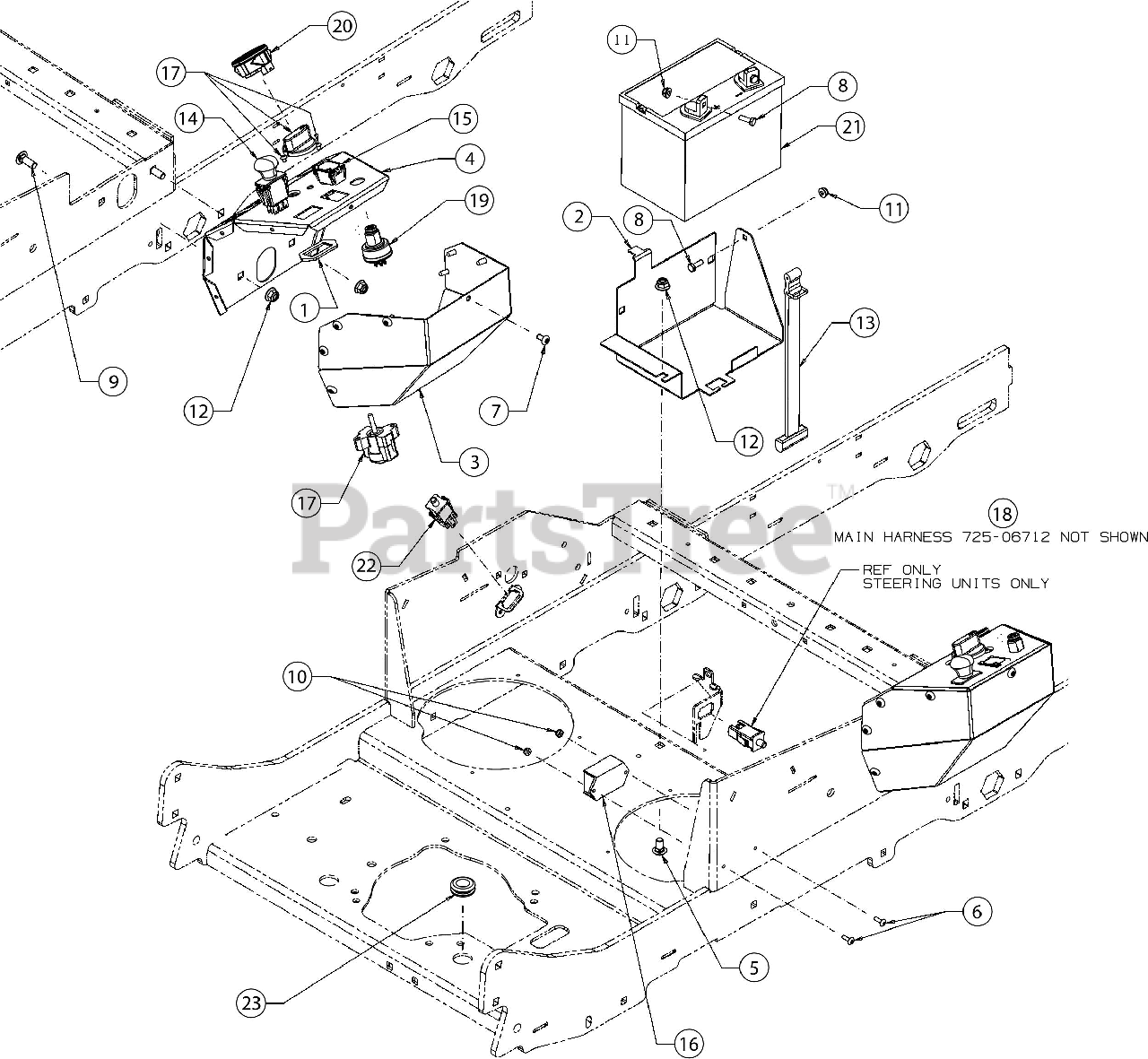

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10064-4021

BATTERY MOUNTING BRACKET

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10585-4021

CONTROL POD COVER (RH)

$45.99

$

Usually ships in 3-6 days

0

4

703-10586-4021

CONTROL POD RH

$

$

Not available

5

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-0425

SCREW #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1017

SCREW 1/4-14 x .625

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 8

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$29.99

$

In Stock, only 4 left!

0

14

Cub Cadet 925-04174

ELECTRIC PTO SWITCH
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 20+

0

15

Cub Cadet 725-06307

HOUR METER

$148.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-06308

CONTROL PANEL

$308.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-06333

THROTTLE SWITCH

$441.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 720-05103

THROTTLE KNOB

Note: (Not Shown)

$31.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-06712

WIRE HARNESS ASSEMBLY KOH/EFI
(Superseded to 725-06712D)

$172.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 925-04164

RELAY

Note: (Not Shown)

$38.99

$

In Stock, only 2 left!

0

19

Cub Cadet 925-06854

KEY SWITCH (3 POSITION)

$138.99

$

In Stock, only 2 left!

0

20

Cub Cadet 925-06855

DUAL FUEL GAUGE

$105.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 925-1707D

BATTERY

$

$

Not available

22

Cub Cadet 925-3164A

PLUNGER SWITCH

$40.99

$

In Stock, Qty 13

0

23

Cub Cadet 735-04285

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0
