PRO Z 900 KW 960-L (53FLHUTV050) - Cub Cadet 60" Pro Z Series Zero-Turn Mower, Kawasaki (2024) Transmission (RH) Parts Diagram

60" Pro Z Series Zero-Turn Mower, Kawasaki

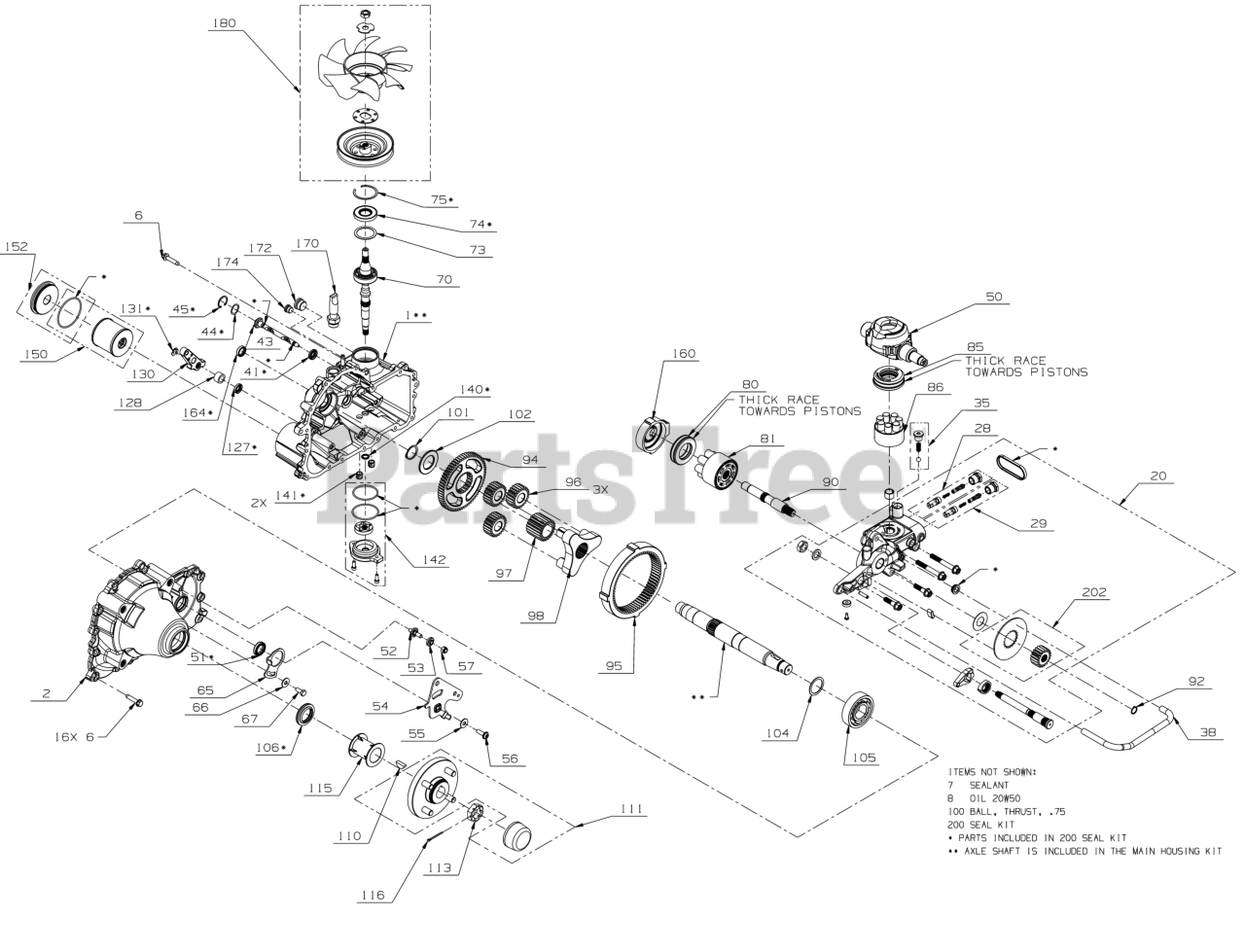

Transmission (RH) Parts Diagram

  • Title

1

Cub Cadet HG-73117

MAIN (RH) KIT

Note: AXLE SHAFT IS INCLUDED IN THE MAIN HOUSING KIT

$506.99

$

Usually ships in 0 days

0

2

Cub Cadet HG-71949

SIDE HOUSING (RH) KIT

$422.99

$

Usually ships in 0 days

0

6

Cub Cadet HG-53987

HOUSING SCREW

$1.99

$

Usually ships in 0 days

0

7

Cub Cadet HG-50928

SEALANT-HOUSING

$109.99

$

In Stock, Qty 8

0

8

OIL, 20W50

$

$

Not available

20

Cub Cadet HG-71996

CENTER SECTION (RH) KIT

$430.99

$

Usually ships in 0 days

0

28

Cub Cadet HG-71952

SHOCK VALVE KIT

$45.99

$

Usually ships in 0 days

0

29

Cub Cadet HG-71952

SHOCK VALVE KIT

$45.99

$

Usually ships in 0 days

0

35

Cub Cadet HG-71999

CHARGE RELIEF KIT

$13.99

$

Usually ships in 0 days

0

38

Cub Cadet HG-52983

FILTER TUBE-RH

$22.99

$

Usually ships in 0 days

0

41

Cub Cadet HG-55522

LIP SEAL 12 X 24 X 5

Note: PART INCLUDED IN REF #200 SEAL KIT

$4.99

$

Usually ships in 0 days

0

43

Cub Cadet HG-54335

ACTUATOR BYPASS ASM

$18.99

$

Usually ships in 0 days

0

44

Cub Cadet HG-53321

WAVE WASHER 1.00 X .78 X .07

Note: PART INCLUDED IN REF #200 SEAL KIT

$1.99

$

Usually ships in 0 days

0

45

Cub Cadet HG-53322

RETAINING RING HO-102

Note: PART INCLUDED IN REF #200 SEAL KIT

$1.99

$

Usually ships in 0 days

0

50

Cub Cadet HG-52972

16CC MACHINED SWASHPLATE

$91.99

$

Usually ships in 0 days

0

51

Cub Cadet HG-55526

LIP SEAL 22 X 32 X 7

Note: PART INCLUDED IN REF #200 SEAL KIT

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-50426

STUD-SHORT

$15.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-51846

SPACER

$6.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-53221

CONTROL ARM-RH

$15.99

$

Usually ships in 0 days

0

55

Cub Cadet 736-0371

FLAT WASHER

$4.99

$

In Stock, only 1 left!

0

56

Cub Cadet HG-51812

SCREW 5/16

$4.49

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50317

LOCK NUT 5/16-24

$2.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-53189

STOP PLATE-RH

$7.49

$

Usually ships in 0 days

0

66

Cub Cadet 736-0371

FLAT WASHER

$4.99

$

In Stock, only 1 left!

0

67

Cub Cadet HG-56170

SCREW 5/16-18.75 HHCS

$2.49

$

Usually ships in 0 days

0

70

Cub Cadet HG-71941

INPUT SHAFT KIT

$93.99

$

Usually ships in 0 days

0

73

Cub Cadet HG-51279

FLAT WASHER 1.559X1.944X.040

$2.99

$

Usually ships in 0 days

0

74

Cub Cadet HG-51280

LIP SEAL 25 X 52 X 7

Note: PART INCLUDED IN REF #200 SEAL KIT

$11.99

$

Usually ships in 0 days

0

75

Cub Cadet HG-52650

RETAINING INTERNAL RING

Note: PART INCLUDED IN REF #200 SEAL KIT

$4.49

$

Usually ships in 0 days

0

80

Cub Cadet HG-53341

PLASTIC THRUST BEARING

$39.99

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-72159

BLOCK KIT-21CC CYL

$112.99

$

Usually ships in 3-6 days

0

85

Cub Cadet HG-52991

THRUST BEARING

$38.99

$

Usually ships in 0 days

0

86

Cub Cadet HG-72897

16CC CYLINDER BLOCK KIT

$76.99

$

Usually ships in 0 days

0

90

Cub Cadet HG-52992

MOTOR SHAFT

$65.99

$

Usually ships in 0 days

0

92

Cub Cadet HG-44145

RETAINING RING

$4.49

$

In Stock, only 2 left!

0

94

Cub Cadet HG-52996

65T/22T GEAR

$72.99

$

Usually ships in 0 days

0

95

Cub Cadet HG-53988

RING GEAR 68T

$109.99

$

Usually ships in 0 days

0

96

Cub Cadet HG-54483

GEAR 23T

$20.99

$

Usually ships in 0 days

0

97

Cub Cadet HG-53000

GEAR 22T

$37.99

$

Usually ships in 0 days

0

98

Cub Cadet HG-53001

CARRIER

$77.99

$

Usually ships in 0 days

0

100

Cub Cadet HG-53002

BALL-.75

$2.49

$

Usually ships in 0 days

0

101

Cub Cadet HG-53003

RETAINING RING

$1.99

$

Usually ships in 0 days

0

102

Cub Cadet HG-53004

AXLE GEAR SPACER

$5.99

$

Usually ships in 0 days

0

104

Cub Cadet HG-53006

FLAT WASHER 1.40 X 1.75 X .05

$3.99

$

Usually ships in 0 days

0

105

Cub Cadet HG-53007

BALL BEARING 35 X 80 X 21

$33.99

$

Usually ships in 0 days

0

106

Cub Cadet HG-53008

LIP SEAL 1.375 X 2.062 X .250

Note: PART INCLUDED IN REF #200 SEAL KIT

$8.99

$

Usually ships in 0 days

0

110

Cub Cadet HG-51796

WOODRUFF KEY 5/16 X 1

$5.99

$

Usually ships in 0 days

0

111

Cub Cadet HG-72101

4 BOLT HUB KIT

$142.99

$

Usually ships in 0 days

0

113

Cub Cadet HG-51821

SLOTTED 1-20 NUT

$17.99

$

Usually ships in 0 days

0

115

Cub Cadet HG-53367

AXLE TUBE 1.40 X 2.22

$3.99

$

Usually ships in 0 days

0

116

Cub Cadet HG-51822

COTTER PIN 9/64 X 1.5

$1.99

$

Usually ships in 0 days

0

127

Cub Cadet HG-55523

LIP SEAL .562 X .875 X .18

Note: PART INCLUDED IN REF #200 SEAL KIT

$6.49

$

Usually ships in 3-6 days

0

128

Cub Cadet HG-53356

SPACER-.57 X .86 X .53

$1.99

$

Usually ships in 0 days

0

130

Cub Cadet HG-53018

ACTUATING HANDLE

$10.99

$

Usually ships in 0 days

0

131

Cub Cadet HG-53019

RETAINING RING

Note: PART INCLUDED IN REF #200 SEAL KIT

$2.49

$

In Stock, only 1 left!

0

140

Cub Cadet HG-53020

LIP SEAL .500 X .688 X .094

Note: PART INCLUDED IN REF #200 SEAL KIT

$3.49

$

Usually ships in 0 days

0

141

Cub Cadet HG-54501

TUBE-CHARGE TRIPLE O-RING

Note: PART INCLUDED IN REF #200 SEAL KIT

$5.49

$

In Stock, Qty 10

0

142

Cub Cadet HG-71942

CHARGE COVER KIT

$103.99

$

Usually ships in 0 days

0

150

Cub Cadet HG-71943

FILTER KIT

$31.99

$

Usually ships in 3-6 days

0

152

Cub Cadet HG-71944

FILTER PLUG KIT

$28.99

$

Usually ships in 0 days

0

160

Cub Cadet HG-53026

MOTOR SWASH PLATE

$50.99

$

Usually ships in 0 days

0

164

Cub Cadet HG-55524

PLUG SEAL .945 X .250

Note: PART INCLUDED IN REF #200 SEAL KIT

$6.49

$

Usually ships in 0 days

0

170

Cub Cadet HG-53037

STRAIGHT FITTING 7/8 SAE

$35.99

$

Usually ships in 0 days

0

172

Cub Cadet HG-9005110-8700

PLUG

$41.99

$

Usually ships in 3-6 days

0

174

Cub Cadet HG-9005110-5600

PLUG-STRAIGHT THRE

$21.99

$

Usually ships in 3-6 days

0

180

Cub Cadet HG-73461

FAN/PULLEY KIT

$48.99

$

Usually ships in 0 days

0

200

Cub Cadet HG-73190

OVERHAUL SEAL KIT

$80.99

$

Usually ships in 0 days

0

202

Cub Cadet HG-72748

BRAKE ROTOR,GEAR KIT

$29.99

$

Usually ships in 0 days

0

*

PARTS INCLUDED IN REF #200 SEAL KIT

$

$

Not available

Cub Cadet 618P10064

HYDRO TRANSMISSION (RH)

$2708.99

$

Usually ships in 0 days

0
