Cub Cadet PRO Z 900 KW 960-S (53RIHMAV050) - Cub Cadet 60" Pro Z Zero-Turn Mower, SurePath, Kawasaki (2022) Electrical Parts Lookup with Diagrams

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$28.99

$

Usually ships in 3-6 days

2

Cub Cadet 703-10877

CONTROL POD COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10877-4021

CONTROL POD COVER - CUB YELLOW 2 (4021)

$64.99

$

Usually ships in 3-6 days

$52.99

$

Usually ships in 3-6 days

3

Cub Cadet 703-10967

THROTTLE DEFLECTOR

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10967-4021

THROTTLE DEFLECTOR - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

$15.99

$

Usually ships in 3-6 days

4

Cub Cadet 703-21845

FUSE/RELAY MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

5

Cub Cadet 703E21965

BATTERY SUPPORT BRACKET

$11.99

$

Usually ships in 3-6 days

6

Cub Cadet 703-26751

BATTERY MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$57.99

$

Usually ships in 3-6 days

7

Cub Cadet 703-26827

ALTERNATOR COVER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$38.99

$

Usually ships in 3-6 days

8

Cub Cadet 703E26842

HARNESS GUARD PLATE

$12.99

$

Usually ships in 3-6 days

9

Cub Cadet 703-26944

CONTROL POD (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$75.99

$

Usually ships in 3-6 days

10

Cub Cadet 703E27454

HARNESS GUIDE BRACKET

$19.99

$

Usually ships in 3-6 days

11

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 11

12

Cub Cadet 710-0182A

SCREW-HEX 1/2-13 x 3.00

$8.49

$

In Stock, Qty 20+

13

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 11

14

Cub Cadet 710-0425

SCREW #10-24 x .62

$5.49

$

Usually ships in 3-6 days

15

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

16

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

17

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

18

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 12

19

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

20

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

21

Cub Cadet 712-0161

HEX NUT

$4.99

$

In Stock, Qty 16

22

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

23

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

24

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

25

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 20+

26

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

27

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$74.99

$

In Stock, Qty 20+

28

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$52.99

$

In Stock, Qty 20+

29

Cub Cadet 725-05438

HOURMETER

$110.99

$

Usually ships in 3-6 days

30

Cub Cadet 725-06308

CONTROL PANEL (SOFT CLUTCH)

$326.99

$

Usually ships in 3-6 days

31

Cub Cadet 925-06855

DUAL FUEL GAUGE

$111.99

$

Usually ships in 3-6 days

32

Cub Cadet 725P13306

BATTERY (300 CCA)

$159.99

$

Usually ships in 3-6 days

33

Cub Cadet 725P13545

KEY SWITCH

$90.99

$

In Stock, only 2 left!

34

Cub Cadet 725P17104A

HARNESS

$

Not available 

34

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$16.99

$

In Stock, Qty 20+

34

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$52.99

$

In Stock, Qty 20+

34

Cub Cadet 925-04165

NEUTRAL SWITCH

$34.99

$

In Stock, Qty 13

35

Cub Cadet 725P17125

ALTERNATOR 70A

$541.99

$

Usually ships in 3-6 days

36

Cub Cadet 725P17197

KNOB

$25.99

$

Usually ships in 3-6 days

37

Cub Cadet 725-17199

ROTARY SWITCH

$202.99

$

Usually ships in 3-6 days

38

Cub Cadet 725-2003

POWER RECEPTICAL

$45.99

$

Usually ships in 3-6 days

39

Cub Cadet 726-0201

PUSH NUT

$7.49

$

In Stock, Qty 20+

40

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

41

Cub Cadet 726-0470

CABLE TIE

$5.49

$

Usually ships in 3-6 days

42

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$14.99

$

Usually ships in 3-6 days

43

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, Qty 16

44

Cub Cadet 735-04285

RUBBER GROMMET

$4.49

$

Usually ships in 3-6 days

45

Cub Cadet 736-3050

FLAT WASHER

$4.49

$

In Stock, Qty 15

46

Cub Cadet 750-10750

SPACER (LARGE)

$6.49

$

Usually ships in 3-6 days

47

Cub Cadet 750-10751

SPACER (SMALL)

$5.99

$

Usually ships in 3-6 days

48

Cub Cadet 756-06867

PULLEY

$56.99

$

Usually ships in 3-6 days

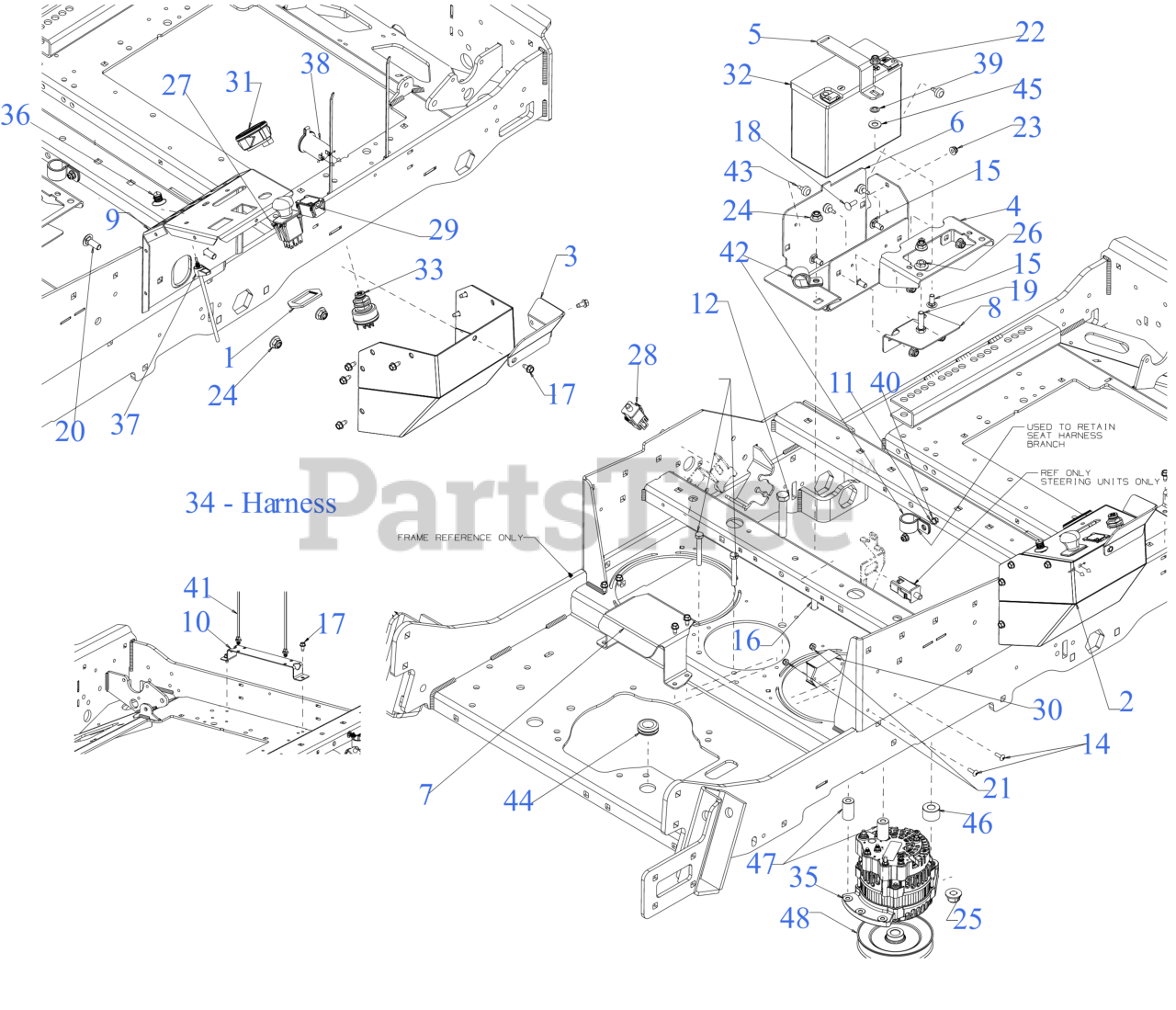

PRO Z 900 KW 960-S (53RIHMAV050) - Cub Cadet 60" Pro Z Zero-Turn Mower, SurePath, Kawasaki (2022) Electrical Parts Diagram

Electrical Parts Diagram
