PRO Z 900 KW 972-L (53RLHUTY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2023) Electrical Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

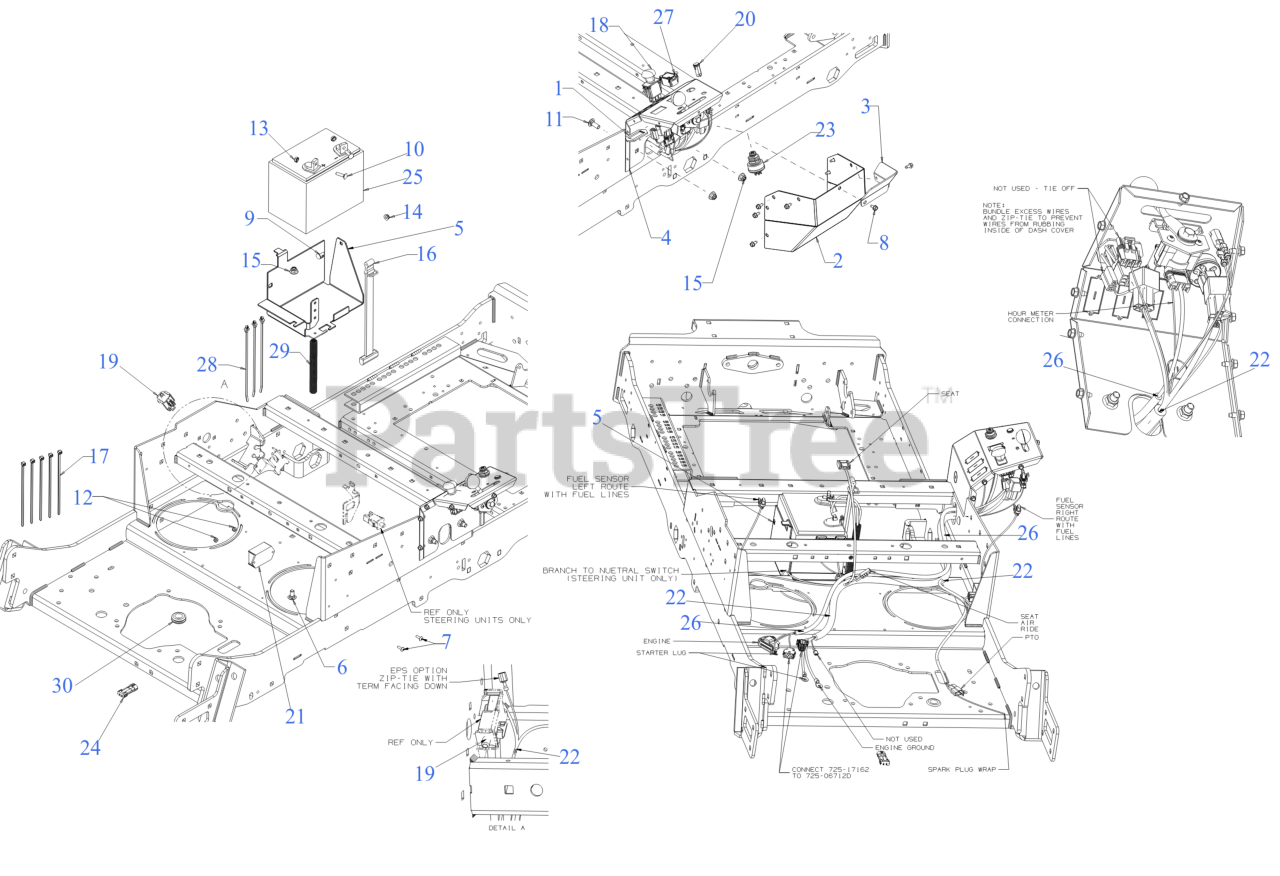

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$28.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10877

CONTROL POD COVER (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

703-10877-4021

Cub Cadet 703-10877-4021

CONTROL POD COVER - CUB YELLOW 2 (4021)

$64.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10967

THROTTLE DEFLECTOR

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

703-10967-4021

Cub Cadet 703-10967-4021

THROTTLE DEFLECTOR - CUB YELLOW 2 (4021)

$19.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-28684

CONTROL POD (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$112.99

$

Usually ships in 0 days

0

5

Cub Cadet 703-10064A

BATTERY MOUNTING BRACKET

Note: Notch above Ref 29 *CHOOSE COLOR WHEN ORDERING*

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-28759

BATTERY MOUNT BRACKET

Note: No Notch only hole above Ref 29*CHOOSE COLOR WHEN ORDERING*

$89.99

$

Usually ships in 0 days

0

6

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0425

SCREW #10-24 x .62

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 710-0932A

SCREW 1/4-20 x 1 GR5

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0161

HEX NUT

$4.99

$

In Stock, Qty 16

0

13

Cub Cadet 712-0271

SEMS NUT 1/4-20

$4.99

$

In Stock, Qty 15

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$31.99

$

In Stock, only 3 left!

0

17

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$74.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$52.99

$

In Stock, Qty 20+

0

20

Cub Cadet 725-04660

INDICATOR LIGHT-RED

$33.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-06308

CONTROL PANEL (SOFT CLUTCH)

$326.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725-06712D

WIRE HARNESS ASSEMBLY (KOH/KAW EFI)

$182.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 925-1718

RELAY

$77.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 925-06854

KEY SWITCH (3 POSITION)

$146.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 925-06908

PRO-Z KEY SET

$26.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-06945

SEALED CAP ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 725P17130

BATTERY (230 CCA AGM U1-280)

$124.99

$

In Stock, only 3 left!

0

26

Cub Cadet 725P17162

HARNESS ADAPTER (KAW EFI)

$131.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 725P17252

HOUR METER

$108.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-0470

CABLE TIE

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 731-26469

CONVOLUTED CONDUIT 1"

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 735-04285

RUBBER GROMMET

$4.49

$

Usually ships in 3-6 days

0
