Cub Cadet PRO Z 900 KW 972-S (53RIHMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2017) Front Axle Parts Lookup with Diagrams

1

Cub Cadet 980-00154

STEERING GEAR (LH)

$158.99

$

Usually ships in 3-6 days

2

Cub Cadet 980-00155

STEERING GEAR (RH)

$158.99

$

Usually ships in 3-6 days

3

Cub Cadet 680-00417

FRONT YOKE ASSEMBLY

(Superseded to 680-00417A) 

Variations

Cub Cadet 680-00417-4021

FRONT YOKE ASSEMBL - CUB YELLOW 2 (4021)

$243.99

$

Usually ships in 3-6 days

$197.99

$

Usually ships in 3-6 days

4

Cub Cadet 680-00472

AXLE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00472-4021

AXLE ASSEMBLY - CUB YELLOW 2 (4021)

$760.99

$

Usually ships in 3-6 days

$661.99

$

Usually ships in 3-6 days

5

Cub Cadet 703-10040

CABLE GEAR MOUNTING BRACKET

(Superseded to 703E10040) 

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10040-0637

CABLE GEAR MOUNTIN - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

$7.99

$

Usually ships in 3-6 days

6

Cub Cadet 703-10352

GEAR COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10352-4021

GEAR COVER - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

$24.99

$

Usually ships in 3-6 days

7

Cub Cadet 703-10386A

CABLE MOUNTING BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10386A-4021

CABLE MOUNTING BRK - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

$22.99

$

Usually ships in 3-6 days

8

Cub Cadet 703-10387A

CABLE MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10387A-4021

CABLE MOUNTING BRA - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

$22.99

$

Usually ships in 3-6 days

9

Cub Cadet 703-10389

GEAR SPACER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10389-4021

GEAR SPACER PLATE - CUB YELLOW 2 (4021)

$15.99

$

In Stock, only 1 left!

$12.99

$

Usually ships in 3-6 days

10

Cub Cadet 703-10546

LOWER GEAR SPACER PLATE

$20.99

$

Usually ships in 3-6 days

11

Cub Cadet 703-10636

BUMPER MOUNTING BRACKET

(Superseded to 703-10636A) 

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10636-4021

BUMPER MOUNTING BR - CUB YELLOW 2 (4021)

$60.99

$

Usually ships in 3-6 days

$48.99

$

Usually ships in 3-6 days

12

Cub Cadet 703-10929

WHEEL DEFLECTOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10929-4021

WHEEL DEFLECTOR BR - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

$54.99

$

Usually ships in 3-6 days

13

Cub Cadet 703-11089

CASTER RETENTION PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11089-4021

CASTER RETENTION P - CUB YELLOW 2 (4021)

$8.99

$

Usually ships in 3-6 days

$6.99

$

Usually ships in 3-6 days

14

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 11

15

Cub Cadet 710-05189B

HEX HEAD SCREW 1-14 X 7 GR5

(Superseded to 710-05189C) 

$62.99

$

Usually ships in 3-6 days

16

Cub Cadet 710-1090

SCREW 5/16-18 x 1.25 GR5

$3.99

$

Usually ships in 3-6 days

17

Cub Cadet 710-1194

SCREW #10-24 x 1.00 GR5.1

$4.49

$

Usually ships in 3-6 days

18

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

Usually ships in 3-6 days

19

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

20

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.99

$

Usually ships in 3-6 days

21

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$7.49

$

In Stock, Qty 11

22

Cub Cadet 712-0161

HEX NUT

$4.99

$

In Stock, Qty 16

23

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$12.99

$

Usually ships in 3-6 days

24

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

25

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

26

Cub Cadet 712-04150

NUT

$4.99

$

In Stock, Qty 19

27

Cub Cadet 712-04151

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 7

28

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$33.99

$

Usually ships in 3-6 days

29

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

30

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

31

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 14

32

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

33

Cub Cadet 716-04191

RETAINING RING

$4.49

$

In Stock, only 2 left!

34

Cub Cadet 917-04822

STEERING GEAR YOKE

$76.99

$

In Stock, only 2 left!

35

Cub Cadet 721-04462

SEAL

$11.99

$

Usually ships in 3-6 days

36

Cub Cadet 726-04072A

RATCHET CLIP

$3.99

$

In Stock, Qty 13

37

Cub Cadet 731-07348

AXLE GREASE CAP

$9.49

$

In Stock, Qty 6

38

Cub Cadet 735-0246A

END PLUG

$6.49

$

In Stock, Qty 12

39

Cub Cadet 735-05159

AXIAL BUMPER

$52.99

$

Usually ships in 3-6 days

40

Cub Cadet 736-04604

BELL WASHER 1.25ID x 2.5 x .180

$8.99

$

Usually ships in 3-6 days

41

Cub Cadet 736-04605

FLAT WASHER 1.0 x 2.0 x .075

$4.49

$

In Stock, only 2 left!

42

Cub Cadet 936-3008

FLAT WASHER

$7.49

$

Usually ships in 3-6 days

43

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, only 4 left!

44

Cub Cadet 737-04352

GREASE FITTING

$16.99

$

Usually ships in 3-6 days

46

Cub Cadet 738-05173

SHOULDER BOLT .750 X 8.175:5/8-11

$44.99

$

Usually ships in 3-6 days

47

Cub Cadet 741-04548

BEARING CUP

$9.49

$

In Stock, only 4 left!

48

Cub Cadet 741-04549

BEARING CONE

$20.99

$

Usually ships in 3-6 days

49

Cub Cadet 750-05297

SPACER

$4.99

$

In Stock, Qty 20+

50

Cub Cadet 750-05438

SPACER

$27.99

$

Usually ships in 3-6 days

51

Cub Cadet 750-05600

SPACER

$7.99

$

In Stock, only 1 left!

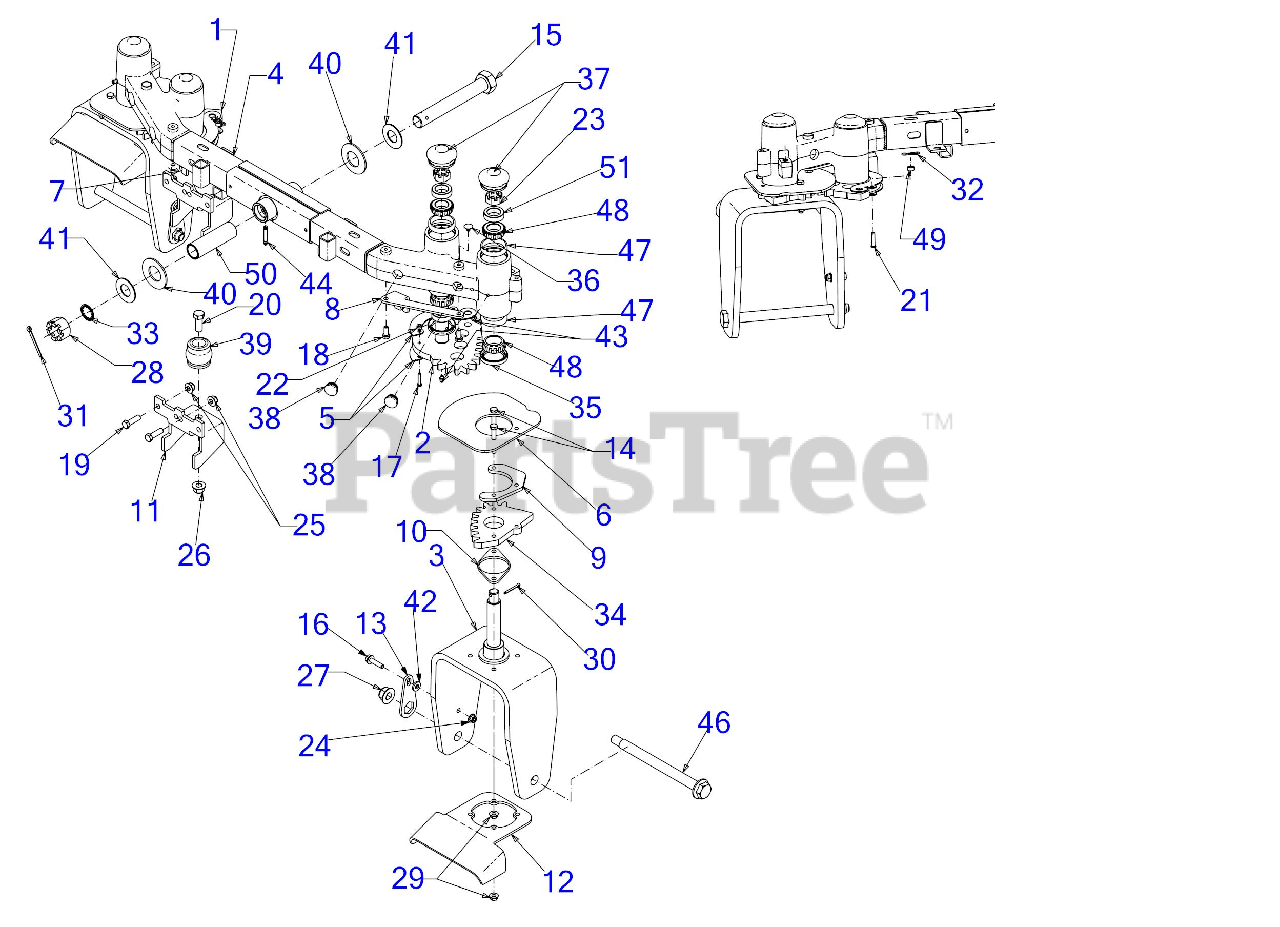

PRO Z 900 KW 972-S (53RIHMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2017) Front Axle Parts Diagram

Front Axle Parts Diagram
