PRO Z 900 KW 972-S (53RIHMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Kawasaki (2017) Fuel Tank Parts Diagram

72" Pro Z Series Zero-Turn Mower, Kawasaki

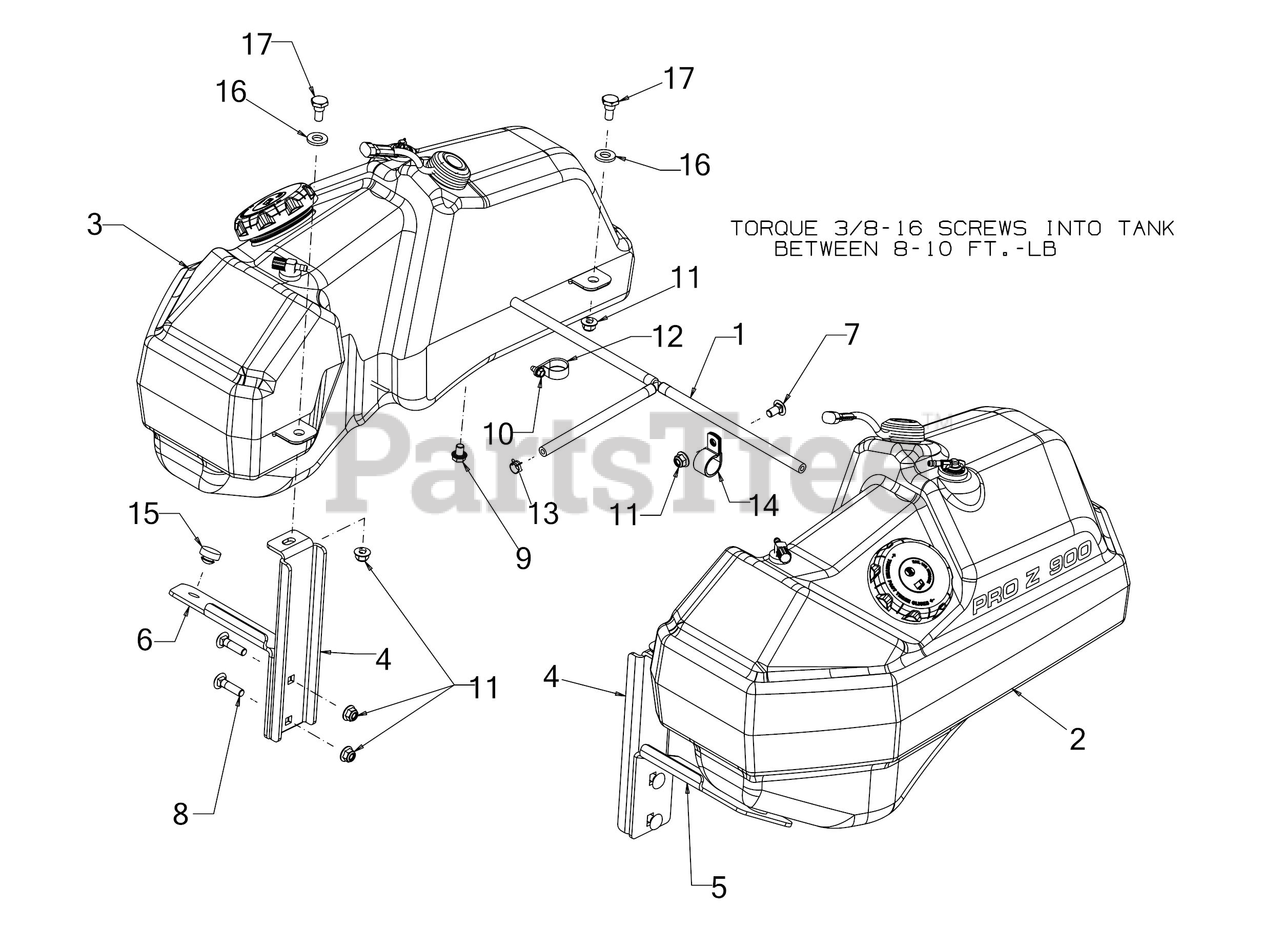

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 651-05381A

FUEL LINE ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-05399

FUEL TANK ASSEMBLY (RH) 7.25 GAL ELC
(Superseded to 651-08770)

$

$

Not available

2

Cub Cadet 02002253

GROMMET-FUEL TANK

Note: (Not Shown)

$5.49

$

In Stock, Qty 20+

0

2

Cub Cadet 951-12754

FUEL CAP

Note: (Not Shown)

$52.99

$

In Stock, only 3 left!

0

2

Cub Cadet 731-08637A

CASTER AXLE CAP

Note: (Not Shown)

$5.99

$

In Stock, Qty 14

0

2

Cub Cadet 735-05014

GROMMET .755 x .955 x .55

Note: (Not Shown)

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet 651-05400

FUEL TANK ASSEMBLY (LH) 7.25 GAL ELC
(Superseded to 651-05400B)

$545.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 02002253

GROMMET-FUEL TANK

Note: (Not Shown)

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 731-08637A

CASTER AXLE CAP

Note: (Not Shown)

$5.99

$

In Stock, Qty 14

0

3

Cub Cadet 735-05014

GROMMET .755 x .955 x .55

Note: (Not Shown)

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet 951-12754

FUEL CAP

Note: (Not Shown)

$52.99

$

In Stock, only 3 left!

0

4

Cub Cadet 703-10595

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10595-4021

FUEL TANK MOUNTING - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 703-10628A

FUEL TANK MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10628A-4021

FUEL TANK MOUNTING - CUB YELLOW 2 (4021)

$38.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10630A

FUEL TANK MOUNTING BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10630A-4021

FUEL TANK MOUNTING - CUB YELLOW 2 (4021)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0431

CARRIAGE BOLT 3/8-16 x 1.50

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05412

SCREW 3/8-16 x .500 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-04123A

HOSE CLAMP

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.99

$

In Stock, Qty 12

0

17

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0
