PRO Z 900 KW 972-SD (53TIHMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2018) Front Axle Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

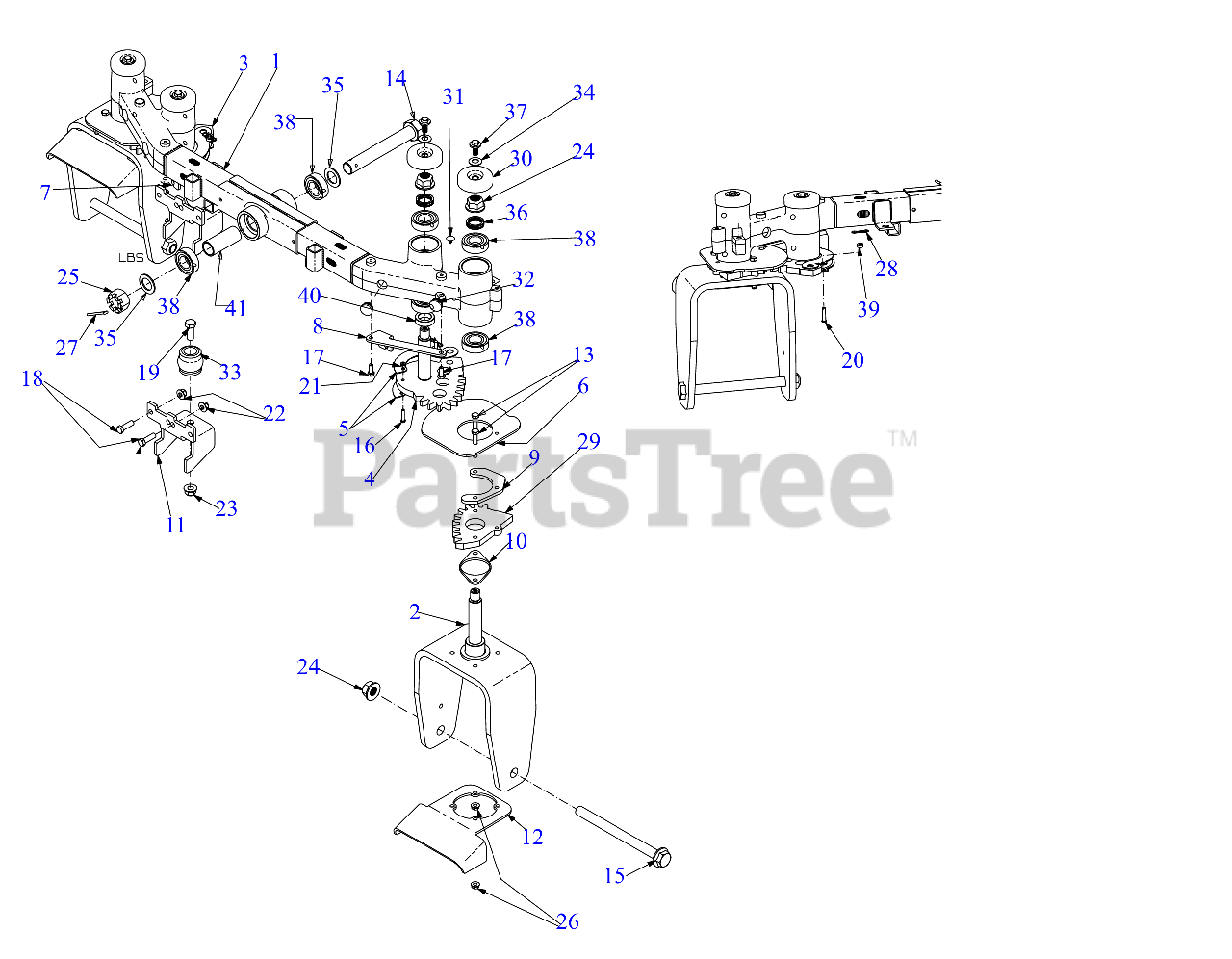

Front Axle Parts Diagram

  • Title

1

Cub Cadet 680-00527

FRONT AXLE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00527-4021

YELLOW FRONT AXLE ASS - CUB YELLOW 2 (4021)

$759.99

$

Usually ships in 3-6 days

0

$614.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00536

FRONT YOKE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 680-00536-4021

YELLOW FRONT YOKE ASS - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Cub Cadet 980-00537

LEFT HAND STEERING GEAR ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 980-00538

RIGHT HAND STEERING GEAR ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-10040

CABLE GEAR MOUNTING BRACKET
(Superseded to 703E10040)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10040-0637

CABLE GEAR MOUNTIN - POWDER BLACK (0637)

$7.49

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-10352

GEAR COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10352-4021

GEAR COVER - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-10386A

CABLE MOUNTING BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10386A-4021

CABLE MOUNTING BRK - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-10387A

CABLE MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10387A-4021

CABLE MOUNTING BRA - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10389

GEAR SPACER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10389-4021

GEAR SPACER PLATE - CUB YELLOW 2 (4021)

$14.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-10546

LOWER GEAR SPACER PLATE

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-10636

BUMPER MOUNTING BRACKET
(Superseded to 703-10636A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10636-4021

BUMPER MOUNTING BR - CUB YELLOW 2 (4021)

$56.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-10929

WHEEL DEFLECTOR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10929-4021

WHEEL DEFLECTOR BR - CUB YELLOW 2 (4021)

$62.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-05189C

HEX HEAD SCREW (1-14 x 7 GR5)

$59.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-05388

SCREW 3/4-16 x 9.00 GR5

$32.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1194

SCREW #10-24 x 1.00 GR5.1

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-1880

SCREW 5/16-18 x .750

$4.99

$

In Stock, Qty 11

0

18

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$6.99

$

In Stock, only 3 left!

0

21

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

22

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04338A

FLANGE LOCK NUT 3/4-16 TOP LOCK

$7.99

$

In Stock, only 2 left!

0

25

Cub Cadet 712-05159

CASTLE NUT 1.0-14 GR5

$31.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 714-0211

COTTER PIN

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

29

Cub Cadet 917-04822

STEERING GEAR YOKE

$71.99

$

In Stock, only 2 left!

0

30

Cub Cadet 721-04953

AXLE CAP 2.5"

$20.99

$

In Stock, only 2 left!

0

31

Cub Cadet 726-04072A

RATCHET CLIP

$3.99

$

In Stock, Qty 13

0

32

Cub Cadet 735-0246A

END PLUG

$5.99

$

In Stock, only 2 left!

0

33

Cub Cadet 735-05159

AXIAL BUMPER

$49.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 936-0163

FLAT WASHER
(Superseded to 736-0163)

$

$

Not available

35

Cub Cadet 936-0253

BELL WASHER
(Superseded to 736-0253)

$

$

Not available

36

Cub Cadet 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 738-04149

SCREW

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 741-0941A

BALL BEARING (1.0 x 52 x 15)

$17.99

$

In Stock, Qty 10

0

39

Cub Cadet 750-05297

SPACER

$4.49

$

In Stock, Qty 5

0

40

Cub Cadet 750-05600

SPACER

$7.49

$

In Stock, only 1 left!

0

41

Cub Cadet 750-06782

SPACER 1.00 x 1.25 x 2.99
(Superseded to 750-06782A)

$8.99

$

Usually ships in 3-6 days

0
