PRO Z 900 KW 972-SDL (53FLLMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2024) Fuel Tank Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

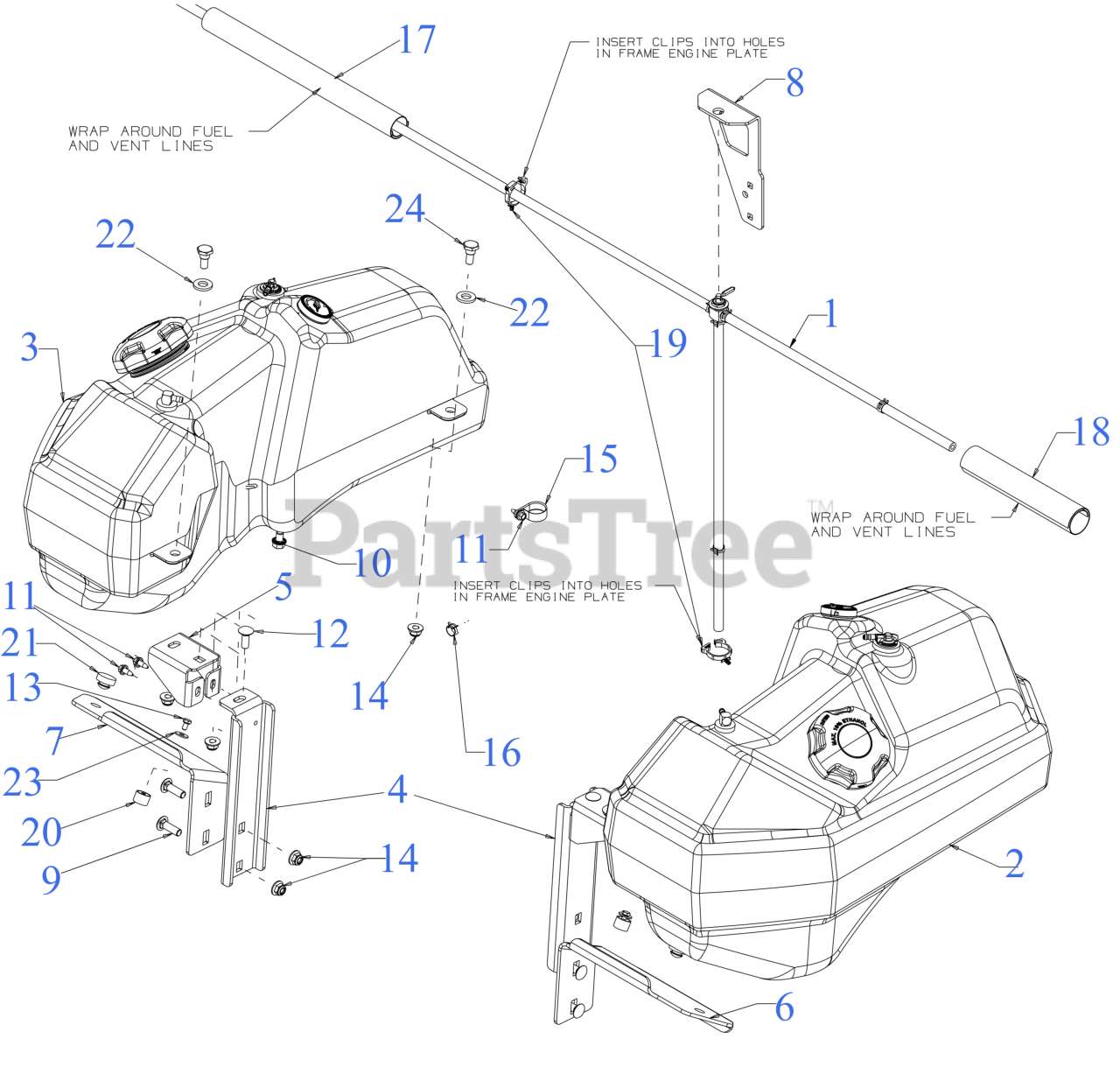

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 651-08814

FUEL HOSE W/VALVE EFI

$110.99

$

Usually ships in 0 days

0

1

Cub Cadet 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 651-08804

TANK ASM (RH) (7.25 GAL)

Note: (2/23/24 & Before)

$545.99

$

Usually ships in 0 days

0

2

Cub Cadet 651-08854

FUEL TANK (7.25 GAL) (RH)

Note: (2/23/24 & After)

$545.99

$

Usually ships in 0 days

0

2

Cub Cadet 751-22671

FUEL PICKUP VALVE (NO/SHUTOFF)

$20.99

$

Usually ships in 0 days

0

2

Cub Cadet 02002253

GROMMET-FUEL TANK

$5.49

$

In Stock, Qty 20+

0

2

Cub Cadet 951-15337

FUEL GAUGE

$108.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 735-05014

GROMMET .755 x .955 x .55

$17.99

$

In Stock, only 1 left!

0

2

Cub Cadet 751-15512

FUEL VENT FITTING

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 735-05171

GROMMET 1.174X1.400X0.505

$16.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 951-15243

FUEL CAP - 3.50" ONE WAY VENT

$52.99

$

In Stock, only 1 left!

0

3

Cub Cadet 651-08805

TANK ASM (LH) (7.25 GAL)

Note: (2/23/24 & Before)

$545.99

$

Usually ships in 0 days

0

3

Cub Cadet 651-08855

FUEL TANK (7.25 GAL) (LH)

Note: (2/23/24 & After)

$545.99

$

Usually ships in 0 days

0

3

Cub Cadet 02002253

GROMMET-FUEL TANK

$5.49

$

In Stock, Qty 20+

0

3

Cub Cadet 951-15337

FUEL GAUGE

$108.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751-22671

FUEL PICKUP VALVE (NO/SHUTOFF)

$20.99

$

Usually ships in 0 days

0

3

Cub Cadet 751-15512

FUEL VENT FITTING

$29.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 735-05014

GROMMET .755 x .955 x .55

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet 951-15243

FUEL CAP - 3.50" ONE WAY VENT

$52.99

$

In Stock, only 1 left!

0

3

Cub Cadet 735-05171

GROMMET 1.174X1.400X0.505

$16.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10595B

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-21384

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-21385

LOWER FUEL TANK BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-21386

LOWER FUEL TANK BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-28956

VALVE MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$30.99

$

Usually ships in 0 days

0

9

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-05412

SCREW 3/8-16 x .500 GR5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3209

SCREW M6-1.0X10MM GR8.8

$8.99

$

In Stock, Qty 9

0

14

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-04123A

HOSE CLAMP

$4.49

$

In Stock, Qty 6

0

17

Cub Cadet 731-27166

WRAP AROUND SLEEVE 14"

$36.99

$

Usually ships in 0 days

0

18

Cub Cadet 731-27636

WRAP AROUND SLEEVE 8"

$26.99

$

Usually ships in 0 days

0

19

Cub Cadet 731-27761

HOSE CLIP

$7.99

$

Usually ships in 0 days

0

20

Cub Cadet 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0326

FLAT WASHER .510 x 1.000 x .125

$4.99

$

In Stock, Qty 8

0

23

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 5

0

24

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 19

0
