PRO Z 900 KW 972-SDL (53RLLMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2023) Fuel Accessories Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

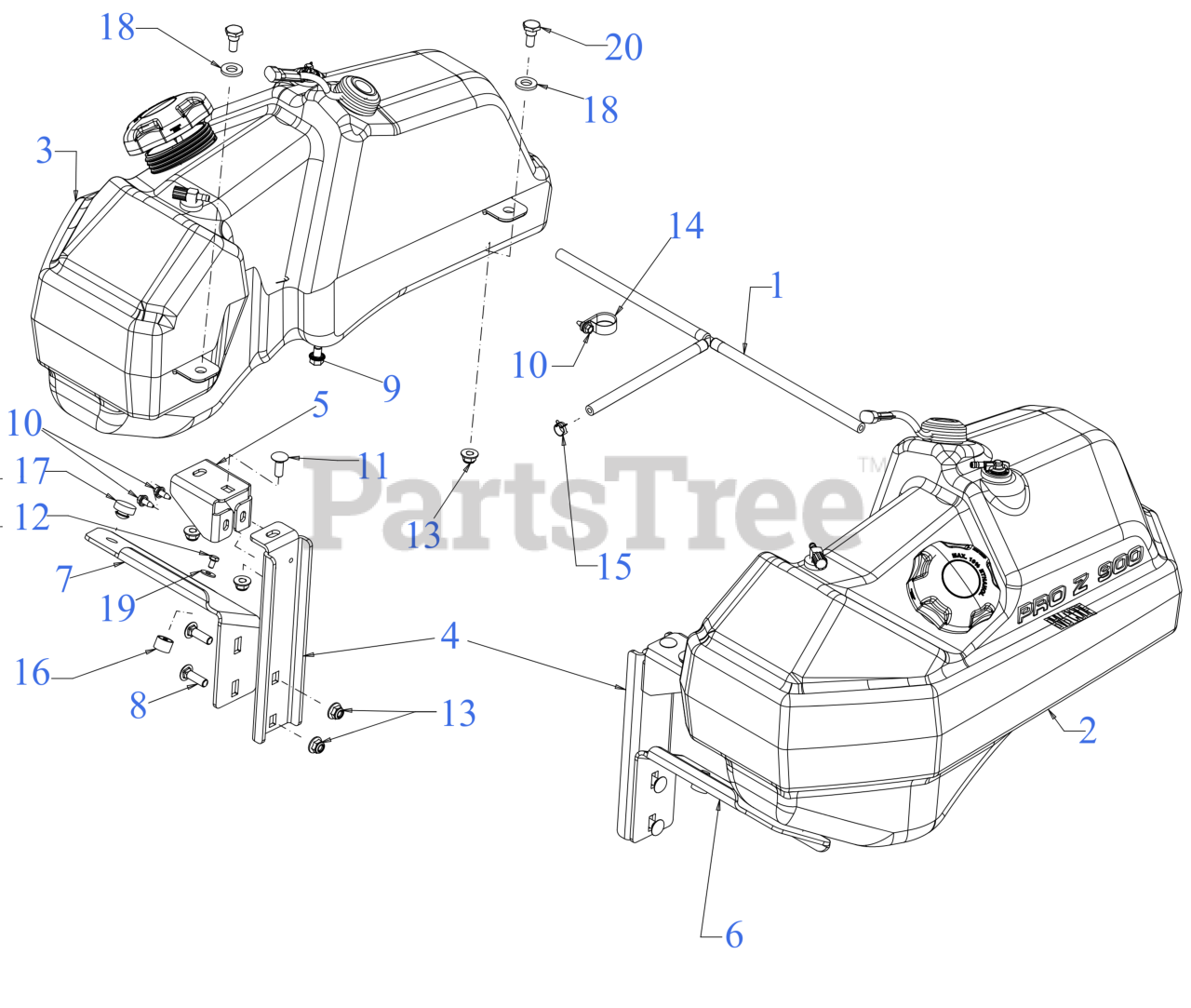

Fuel Accessories Parts Diagram

  • Title

1

Cub Cadet 651-05381A

FUEL LINE ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 726-04123A

HOSE CLAMP

Note: (Not Shown)

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet 651-05399A

FUEL TANK ASSEMBLY (RH) (7.25 GAL)
(Superseded to 651-08854)

Note: (See Separate Breakdown)

$545.99

$

Usually ships in 0 days

0

3

Cub Cadet 651-05400A

FUEL TANK ASSEMBLY (LH) (7.25 GAL)
(Superseded to 651-05400B)

Note: (See Separate Breakdown)

$545.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-10595B

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-21384

FUEL TANK MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-21385

LOWER FUEL TANK BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-21386

LOWER FUEL TANK BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05412

SCREW 3/8-16 x .500 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3209

SCREW M6-1.0X10MM GR8.8

$8.99

$

In Stock, Qty 9

0

13

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-04123A

HOSE CLAMP

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0326

FLAT WASHER .510 x 1.000 x .125

$4.99

$

In Stock, Qty 8

0

19

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, Qty 5

0

20

Cub Cadet 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 19

0
