PRO Z 900 KW 972-SDL (53TILMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2021) Light Beacon Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

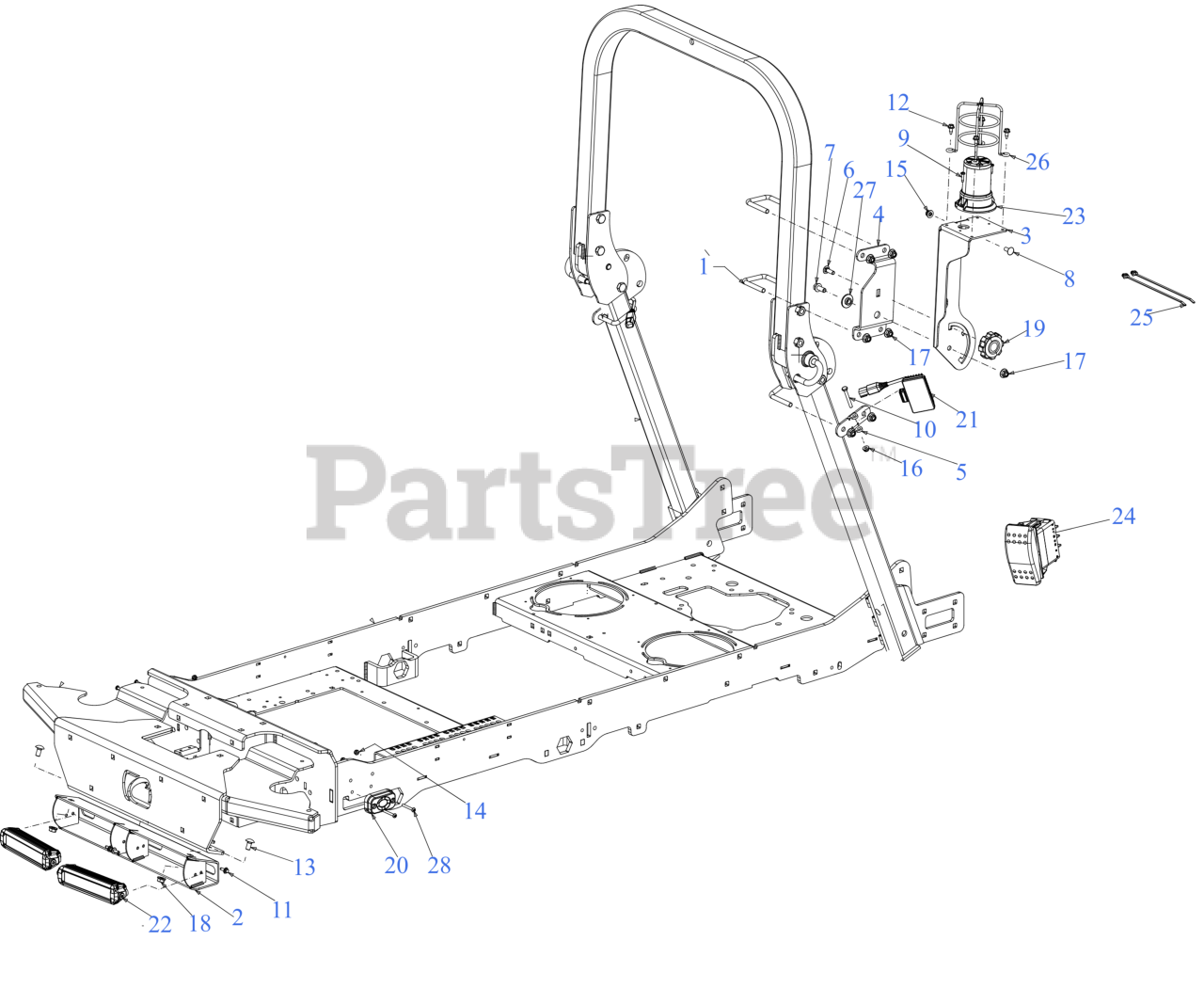

Light Beacon Parts Diagram

  • Title

1

Cub Cadet 02003668

U-BOLT, 3/8-16 X

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-01874

HEADLIGHT BRACKET

$108.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-22465

PIVOT MOUNT BRACKET

$39.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-22466

FIXED MOUNT BRACKET

$21.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-22467

LIGHT MOUNT BRACKET

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 8

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 720-05057

KNOB-5/16-18

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-12525

LED HEADLIGHT (300LM)

$76.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-12526

LED HEADLIGHT (400LM)

$80.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725-12527

LED HEADLIGHT (2000LM)
(Superseded to 725P12527)

$147.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 725-12768

LED BEACON LIGHT

$144.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 725-14065

ROCKER SWITCH
(Superseded to 725P14065)

$60.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-0470

CABLE TIE

$4.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-07606

BEACON LIGHT COVER

$40.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-04363

SHOULDER SPACER

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 9689A

SCREW

$11.99

$

In Stock, only 1 left!

0
