PRO Z 900 KW 972-SDL (53TILMUY050) - Cub Cadet 72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki (2022) Light Beacon Parts Diagram

72" Pro Z Series Zero-Turn Mower, Dually, Kawasaki

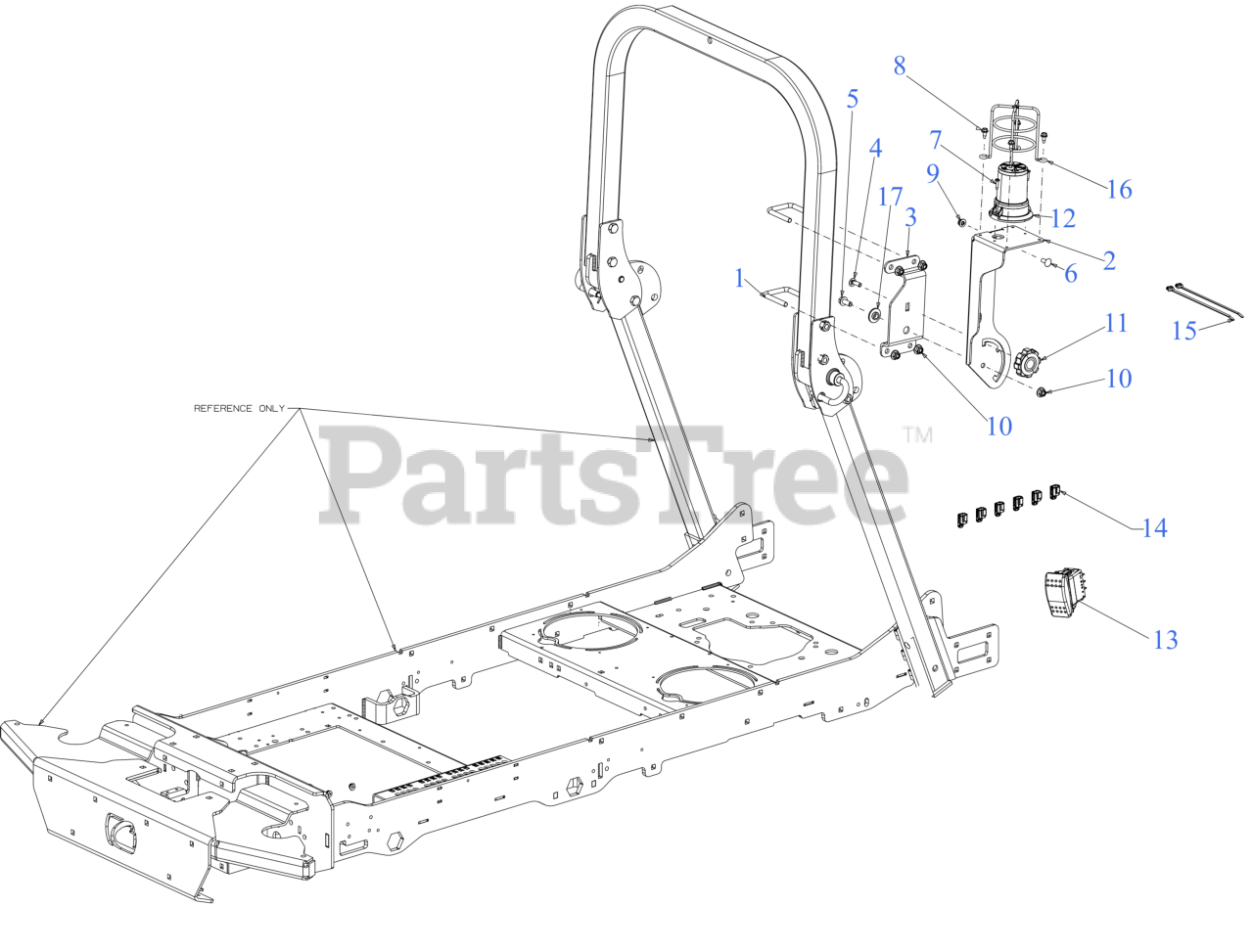

Light Beacon Parts Diagram

  • Title

1

Cub Cadet 02003668

U-BOLT, 3/8-16 X

$14.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-22465

PIVOT MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-22466

FIXED MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 720-05057

KNOB-5/16-18

$20.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-12768

LED BEACON LIGHT

$153.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725P14065

ROCKER SWITCH

$64.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725P18230

DUST CAP

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0470

CABLE TIE

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-07606

BEACON LIGHT COVER

$43.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 738-04363

SHOULDER SPACER

$6.49

$

In Stock, Qty 20+

0
