ProCut 20 (5900099) - Ferris ProCut 20 Front Mount Mower, 23hp Kohler (SN: 7671 & Above) Steering Group Parts Diagram

ProCut 20 Front Mount Mower, 23hp Kohler

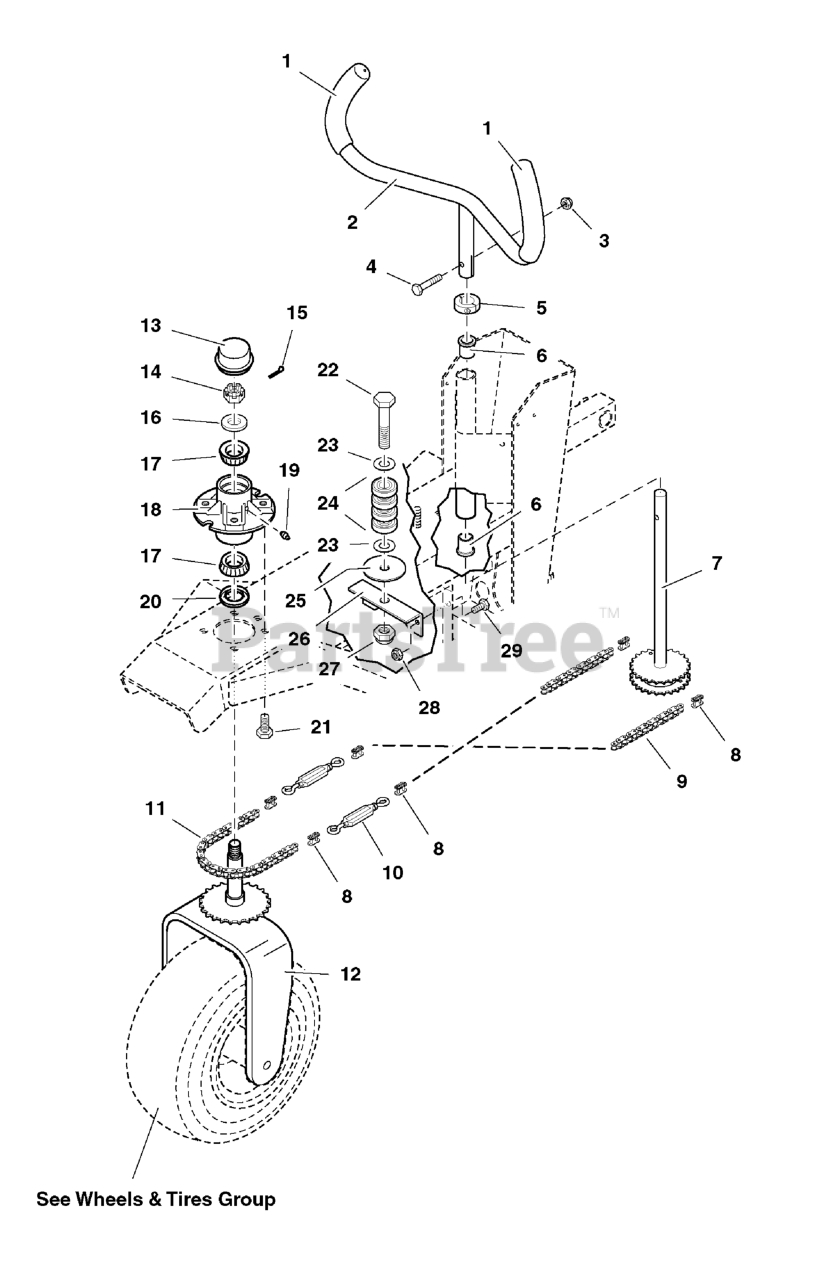

Steering Group Parts Diagram

  • Title

1

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$13.99

$

Usually ships in 2-12 days

0

2

Ferris 5041770B

STEERING HANDLE

$131.99

$

Usually ships in 2-12 days

0

3

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 12

0

4

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$23.99

$

In Stock, only 1 left!

0

6

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$11.99

$

In Stock, only 4 left!

0

7

Ferris 5042087

SHAFT, Steering Sprocket
(Superseded to 5042087SM)

$185.99

$

Usually ships in 2-12 days

0

8

Ferris 5010674

CONNECTOR, #40 Chain Link
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5010673X31

CHAIN, #40 Roller, 31 Links

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5042090

TURNBUCKLE
(Superseded to 5042090SM)

$24.99

$

Usually ships in 2-12 days

0

11

Ferris 5010673X35

CHAIN, #40 Roller, 35 Links

$22.99

$

Usually ships in 2-12 days

0

12

Ferris 5042127B

MOUNT, Steering Tire

$330.99

$

Usually ships in 2-12 days

0

13

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.99

$

In Stock, Qty 7

0

14

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$26.99

$

In Stock, Qty 9

0

18

Ferris 5042110

HUB, Steering

$

$

Not available

19

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.99

$

In Stock, Qty 18

0

21

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$4.49

$

In Stock, Qty 20+

0

22

Ferris 5025019X24

BOLT, 5/8-11 x 3" GD5 CZ

$

$

Currently unavailable

23

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$4.49

$

In Stock, Qty 20+

0

24

Ferris 5021882

BEARING, Roller
(Superseded to 5021882FS)

$11.99

$

Usually ships in 2-12 days

0

25

Ferris 5043652

WASHER, Chain
(Superseded to 5043652FS)

$6.99

$

Usually ships in 2-12 days

0

26

Ferris 5044627B

MOUNT, Chain Roller
(Superseded to 5044627BFS)

$15.99

$

Usually ships in 2-12 days

0

27

Ferris 5025282

NUT, 5/8-11 Hex Jam Nylon Lock
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

28

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0
