ProCut 20 (5901032) - Ferris ProCut 20 Front Mount Mower, 22hp Kohler (SN: 4259 - 7540) Engine & PTO Group Parts Diagram

ProCut 20 Front Mount Mower, 22hp Kohler

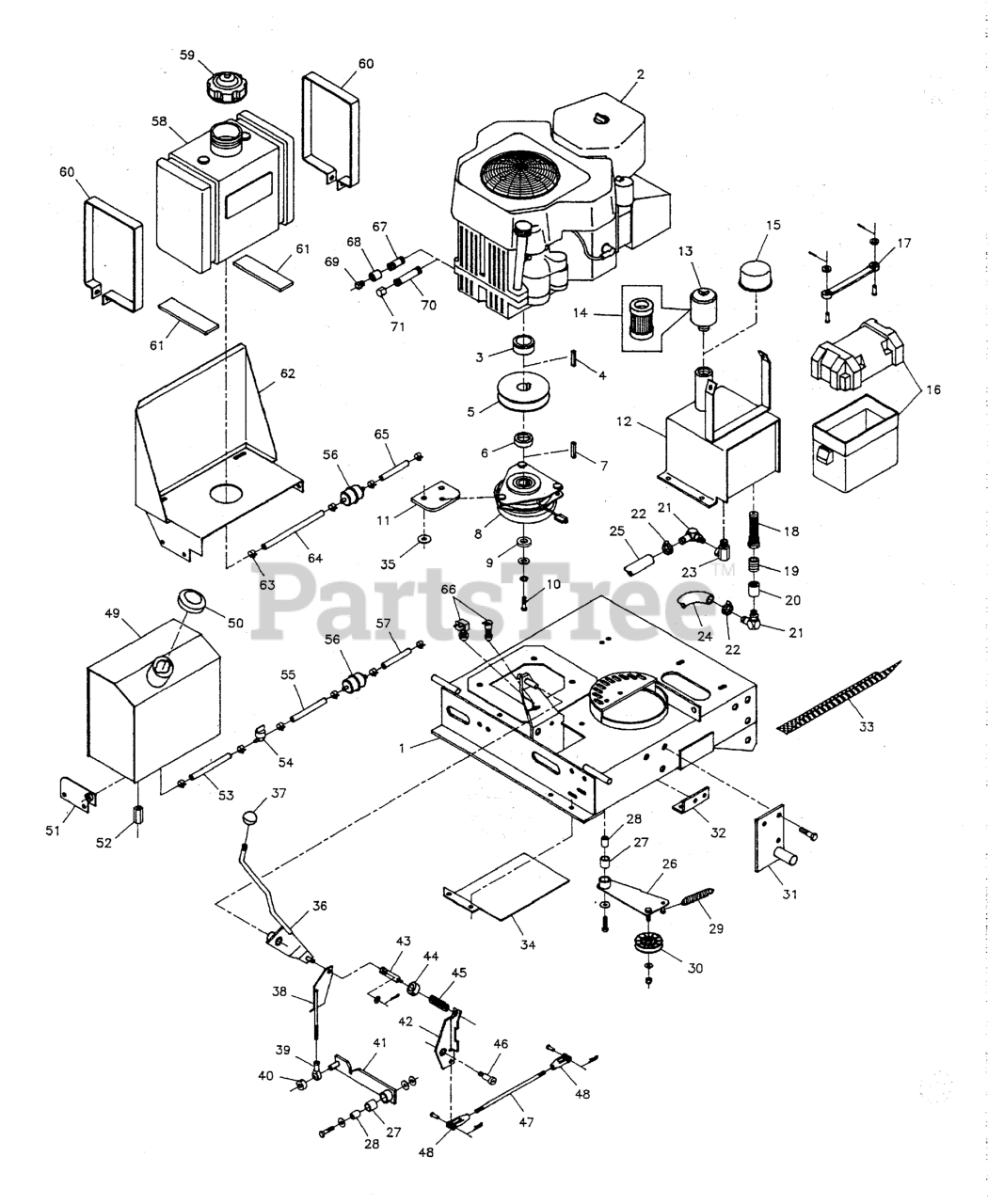

Engine & PTO Group Parts Diagram

  • Title

1

Ferris 5030775B

ENGINE DECK

$

$

Currently unavailable

2

ENGINE, 20HP Kohler (Model CV20S)

$

$

Not available

2

ENGINE, 22HP Kohler (Model CV22S)

$

$

Not available

2

ENGINE, 18HP Briggs Electric (Model 350777)

$

$

Not available

2

ENGINE, 20HP Briggs & Stratton (Model 351777)

$

$

Not available

3

Ferris 5042840

SPACER, 1.13 X 1.75 X .88

$

$

Not available

3

Ferris 5043581

Spacer, Crank Shaft

Note: (Briggs & Stratton)

$23.99

$

Usually ships in 2-12 days

0

4

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

5

Ferris 5042302

PULLEY, Crankshaft

$

$

Not available

5

Ferris 5042129

Pulley, Crank Shaft

Note: (Briggs & Stratton)

$100.99

$

Usually ships in 2-12 days

0

6

Ferris 5042304

SPACER, 1.13 X 2.00 X .37

$12.99

$

Usually ships in 2-12 days

0

6

Ferris 5043625

SPACER, 1.00 X 1.75 X .38

Note: (Briggs & Stratton)

$21.99

$

Usually ships in 2-12 days

0

7

Ferris 5050407X1

Key, 1/4" Sq. x 1"
(Superseded to 5050407X8SM)

$4.49

$

In Stock, Qty 6

0

8

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

$687.99

$

Usually ships in 2-12 days

0

8

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

Note: (Briggs & Stratton)

$724.99

$

Usually ships in 2-12 days

0

9

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$24.99

$

Usually ships in 2-12 days

0

10

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

$5.49

$

Usually ships in 2-12 days

0

11

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 2 left!

0

12

Ferris 5030789

HYDRO TANK ASSEMBLY, Complete

$

$

Currently unavailable

12

Ferris 5030774B

HYDRO TANK WELDMENT

$284.99

$

Usually ships in 2-12 days

0

13

Ferris 5021080

Air Filter Assembly
(Superseded to 5021871)

$37.99

$

Usually ships in 2-12 days

0

14

Ferris 5021080X1

Air Filter Element
(Superseded to 5021871SM)

$37.99

$

Usually ships in 2-12 days

0

15

Ferris 5021871

BREATHER
(Superseded to 5021871SM)

Note: (H22's S/N: 5958 & above)

$37.99

$

Usually ships in 2-12 days

0

16

Ferris 5021666

BOX, Battery
(Superseded to 5100688YP)

$69.99

$

Usually ships in 2-12 days

0

17

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$14.99

$

In Stock, only 1 left!

0

18

Ferris 5021082

Strainer, In-Line

$

$

Not available

19

Ferris 5021163

NIPPLE, 1/2" NPT Close

$

$

Not available

20

Ferris 5020985

COUPLER, 1/2" NPT

$

$

Not available

21

Ferris 5021160

FITTING, 90 Degrees 1/2" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

22

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$4.49

$

In Stock, only 2 left!

0

23

Ferris 5021132

FITTING, 1/2 NPT Swivel, 90 Deg.
(Superseded to 5021132FS)

$22.99

$

Usually ships in 2-12 days

0

24

Ferris 5050836X4P875

Transmission Inlet Hose, 4.875" Long
(Superseded to 5050836X4P875SM)

$

$

Not available

25

Ferris 5050836X14P75

HOSE, Transmission Return, 14.75"
(Superseded to 5050836X14P75SM)

$23.99

$

In Stock, only 1 left!

0

26

Ferris 5042169B

IDLER ARM ASSEMBLY, Complete

$71.99

$

Usually ships in 2-12 days

0

27

Ferris 5020876B

BUSHING, BRASS, 3/4 X 1 X 1
(Superseded to 5020876BSM)

$11.99

$

In Stock, Qty 10

0

28

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.99

$

In Stock, only 3 left!

0

29

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.99

$

In Stock, Qty 8

0

30

Ferris 5043627

PULLEY, IDLER ASSEMBLY
(Superseded to 5043627SM)

$46.99

$

In Stock, only 1 left!

0

31

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

$51.99

$

Usually ships in 2-12 days

0

31

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

$47.99

$

Usually ships in 2-12 days

0

32

Ferris 5043660B

Plate Bracket

$23.99

$

Usually ships in 2-12 days

0

33

Ferris 5044016

Grass Screen

Note: (steel fuel tank only)

$

$

Currently unavailable

34

Ferris 5044616B

Plate, Skid

$

$

Currently unavailable

35

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

Usually ships in 2-12 days

0

36

Ferris 5030919B

BRAKE LEVER WELDMENT
(Superseded to 5030919BFS)

$136.99

$

Usually ships in 2-12 days

0

36

Ferris 5043985

Brake Lever Weldment

$119.99

$

Usually ships in 2-12 days

0

37

Ferris 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.99

$

In Stock, only 3 left!

0

37

Ferris 5010551

Black Knob

$

$

Currently unavailable

38

Ferris 5043972B

BRAKE LOCK LINK
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

39

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$19.99

$

In Stock, only 2 left!

0

40

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.99

$

In Stock, only 3 left!

0

41

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

$56.99

$

Usually ships in 2-12 days

0

42

Ferris 5043971B

BRAKE ROCKER ARM

$

$

Currently unavailable

43

Ferris 5043982

SPRING BAR ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

44

Ferris 5010477

COLLAR, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

45

Ferris 5021667

SPRING, Compression

$

$

Not available

46

Ferris 5025223

Bolt, 3/8-16 - 112" Dia. x I" Shoulder
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

47

Ferris 5043976

Rod, Brnke Linkage

$23.99

$

Usually ships in 2-12 days

0

48

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

49

Ferris 5030790

Fuel Tank Assembly

$

$

Currently unavailable

50

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$14.99

$

In Stock, only 1 left!

0

51

Ferris 5043980

Fuel Tank Mount Plate

$26.99

$

Usually ships in 2-12 days

0

52

Ferris 5020766

Coupling Nut

$

$

Currently unavailable

53

Ferris 5050831X19

Fuel Line, 19" Long (filter to engine)
(Superseded to 5050831X19FS)

$6.99

$

Usually ships in 2-12 days

0

54

Ferris 5021235

VALVE, Fuel Shut-Off

$

$

Currently unavailable

55

Ferris 5050831X9

HOSE, 1/4" FUEL, 9.00"
(Superseded to 5050831X9YP)

Note: (Kohler)

$7.49

$

Usually ships in 2-12 days

0

55

Ferris 5050831X19

Fuel Line, 19" Long (filter to engine)
(Superseded to 5050831X19FS)

Note: (Briggs)

$6.99

$

Usually ships in 2-12 days

0

56

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 1 left!

0

57

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 1 left!

0

57

Ferris 5050831X6

HOSE, 1/4" FUEL, 6" LONG
(Superseded to 5050831X6YP)

Note: (Briggs)

$6.49

$

Usually ships in 2-12 days

0

58

Ferris 5410709

TANK, FUEL, PLASTIC, 6 GALLON W/ FUEL LINE

$272.99

$

Usually ships in 2-12 days

0

58

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 15

0

59

Ferris 5021866

Gas Cap

$

$

Currently unavailable

60

Ferris 5044693B

Strap, 6 Gal. Fuel Tank
(Superseded to 5044693BFS)

$34.99

$

Usually ships in 2-12 days

0

61

Ferris 5021877

Pad, Rubber Mount
(Superseded to 5021877SM)

$7.99

$

Usually ships in 2-12 days

0

62

Ferris 5044692B

Mount, Fuel Tank
(Superseded to 5044692BFS)

$207.99

$

Usually ships in 2-12 days

0

63

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

64

Ferris 5050831X29

1/4" Fuel Line, 29" Long

$

$

Not available

64

Ferris 5050831X25

Fuel Line, 25" Long (tank to filter)
(Superseded to 5050831X25SM)

Note: (Briggs)

$21.99

$

Usually ships in 2-12 days

0

65

Ferris 5050831X25

Fuel Line, 25" Long (tank to filter)
(Superseded to 5050831X25SM)

Note: (Kohler)

$21.99

$

Usually ships in 2-12 days

0

65

Ferris 5050831X19

Fuel Line, 19" Long (filter to engine)
(Superseded to 5050831X19FS)

Note: (Briggs)

$6.99

$

Usually ships in 2-12 days

0

66

Ferris 5021522

Switch, Plunger N. O.
(Superseded to 5021522YP)

$34.99

$

Usually ships in 2-12 days

0

66

Ferris 5021765

Parking Brake Switch

$

$

Currently unavailable

67

Ferris 5021122

Pipe Nipple

$

$

Currently unavailable

68

Ferris 5020862

Coupler

$

$

Currently unavailable

69

Ferris 5025049

Pipe Plug

$

$

Currently unavailable

70

Ferris 5021707

Nipple, 3/8" Nl'T x 4-1/2"

$

$

Currently unavailable

71

Ferris 5021466

CAP, 3/8" NPT
(Superseded to 5021466SM)

$6.99

$

In Stock, only 2 left!

0
