ProCut 20 (H2220K) - Ferris ProCut 20 Front Mount Mower, 20hp Kohler (SN: 4258 & Below) Engine & PTO Group Parts Diagram

ProCut 20 Front Mount Mower, 20hp Kohler

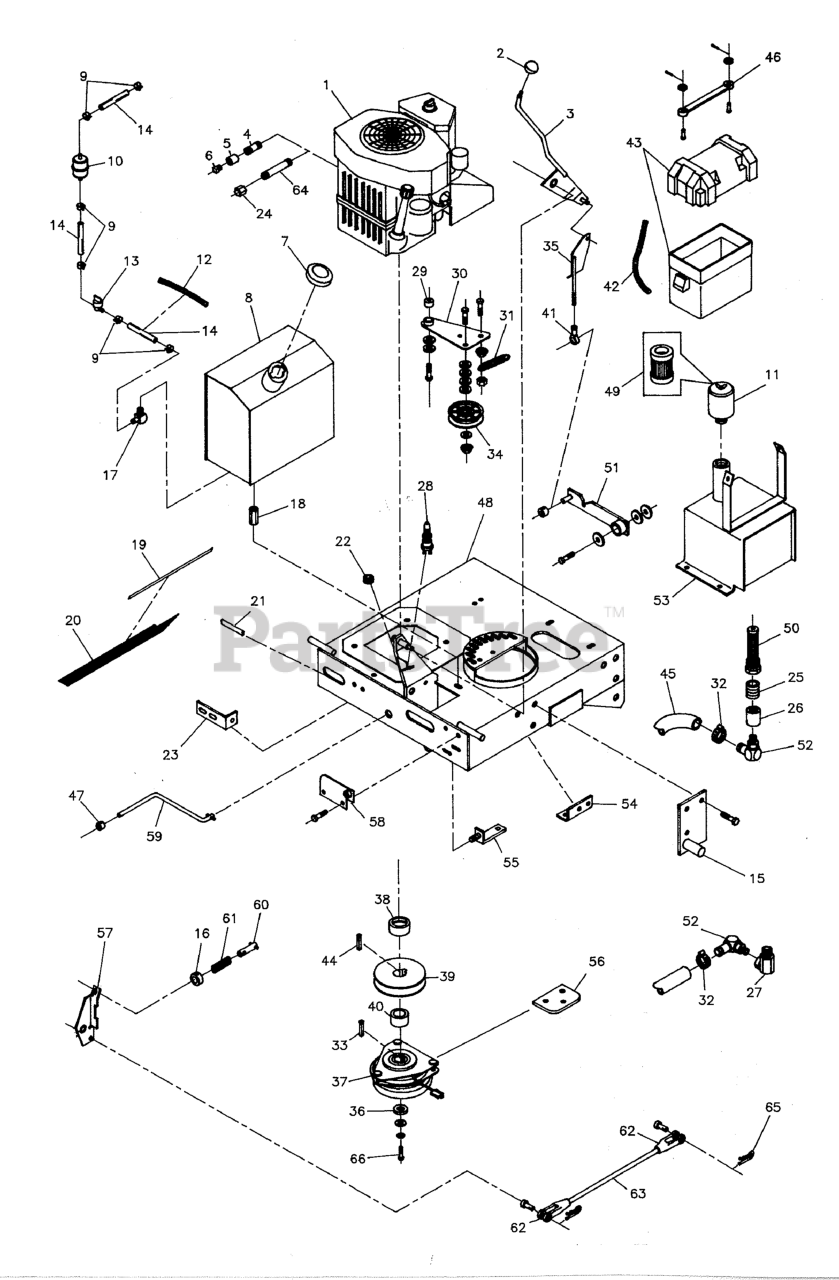

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, 20HP Kohler (Model CV20S)

$

$

Not available

1

ENGINE, 18HP Briggs Electric (Model 350777)

$

$

Not available

2

Ferris 5010551

Black Knob

$

$

Currently unavailable

3

Ferris 5043985

Brake Lever Weldment

$119.99

$

Usually ships in 2-12 days

0

4

Ferris 5021122

Pipe Nipple

$

$

Currently unavailable

5

Ferris 20862

Coupler

$

$

Currently unavailable

6

Ferris 5025049

Pipe Plug

$

$

Currently unavailable

7

Ferris 5021657

Cap

$97.99

$

Usually ships in 2-12 days

0

8

Ferris 5030790

Fuel Tank Assembly

$

$

Currently unavailable

9

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 1 left!

0

11

Ferris 5021080

Air Filter Assembly
(Superseded to 5021871)

$37.99

$

Usually ships in 2-12 days

0

12

Ferris 5050861X16

WIRE LOOM, 16"

$

$

Currently unavailable

13

Ferris 5021235

VALVE, Fuel Shut-Off

$

$

Currently unavailable

14

Ferris 5050831X24

1/4" Fuel Line, 24" Long
(Superseded to 5050831X24YP)

$9.49

$

Usually ships in 2-12 days

0

15

Ferris 5041582B

Pivot Bracket - RH
(Superseded to 5045571B)

$51.99

$

Usually ships in 2-12 days

0

15

Ferris 5041580

Pivot Bracket - LH
(Superseded to 5045570B)

Note: (Not Shown)

$47.99

$

Usually ships in 2-12 days

0

16

Ferris 5010477

COLLAR, 5/8" Set
(Superseded to 5010477FS)

$17.99

$

Usually ships in 2-12 days

0

17

Ferris 5021240

Brass Fitting
(Superseded to 5021240FS)

$10.99

$

Usually ships in 2-12 days

0

18

Ferris 5020766

Coupling Nut

$

$

Currently unavailable

19

Ferris 5050853X13

Body Molding 13" Long

$

$

Currently unavailable

20

Ferris 44016

Grass Screen

$

$

Currently unavailable

21

Ferris 5050840X3P25

BLACK SOFTONE Q-TRIM, 3.25" LONG

$

$

Currently unavailable

22

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

23

Ferris 5042170B

CABLE BRACKET
(Superseded to 5042170BFS)

$34.99

$

Usually ships in 2-12 days

0

24

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.99

$

In Stock, only 2 left!

0

25

Ferris 5021163

NIPPLE, 1/2" NPT Close

$

$

Not available

26

Ferris 5020985

COUPLER, 1/2" NPT

$

$

Not available

27

Ferris 5021132

FITTING, 1/2 NPT Swivel, 90 Deg.
(Superseded to 5021132FS)

$22.99

$

Usually ships in 2-12 days

0

28

Ferris 5021522

SWITCH, Plunger, NO
(Superseded to 5021522YP)

$34.99

$

Usually ships in 2-12 days

0

29

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.99

$

In Stock, only 3 left!

0

30

Ferris 5042169B

IDLER ARM ASSEMBLY, Complete

$71.99

$

Usually ships in 2-12 days

0

31

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.99

$

In Stock, Qty 8

0

32

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$4.49

$

In Stock, only 2 left!

0

33

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 2 left!

0

34

Ferris 5043627

IDLER PULLEY
(Superseded to 5043627SM)

$46.99

$

In Stock, only 1 left!

0

35

Ferris 5043972B

BRAKE LOCK LINK
(Superseded to 5043972BFS)

$39.99

$

Usually ships in 2-12 days

0

36

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$24.99

$

Usually ships in 2-12 days

0

37

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

Note: (Briggs & Stratton)

$724.99

$

Usually ships in 2-12 days

0

37

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

$687.99

$

Usually ships in 2-12 days

0

38

Ferris 5043581

CRANKSHAFT SPACER

Note: (Briggs)

$23.99

$

Usually ships in 2-12 days

0

38

Ferris 5042840

SPACER, 1.13 X 1.75 X .88

$

$

Not available

39

Ferris 5042129

PULLEY, Crankshaft

$100.99

$

Usually ships in 2-12 days

0

39

Ferris 5042302

PULLEY, Crankshaft

$

$

Not available

40

Ferris 5043625

SPACER, 1.00 X 1.75 X .38

$21.99

$

Usually ships in 2-12 days

0

40

Ferris 5042304

SPACER, 1.13 X 2.00 X .37

$12.99

$

Usually ships in 2-12 days

0

41

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$19.99

$

In Stock, only 2 left!

0

42

Ferris 5050833X24

WIRE LOOM, 24"

$5.49

$

Usually ships in 2-12 days

0

43

Ferris 5021666

BOX, Battery
(Superseded to 5100688YP)

$69.99

$

Usually ships in 2-12 days

0

44

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$4.49

$

In Stock, only 2 left!

0

45

Ferris 5050836X1

Inlet Hose

$

$

Currently unavailable

46

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$14.99

$

Usually ships in 2-12 days

0

47

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.99

$

In Stock, only 3 left!

0

48

Ferris 5030775B

ENGINE DECK

$

$

Currently unavailable

49

Ferris 5021080X1

Air Filter Element
(Superseded to 5021871SM)

$37.99

$

Usually ships in 2-12 days

0

50

Ferris 5021082

STRAINER

$

$

Not available

51

Ferris 5042317B

NEUTRAL LOCK LEVER, Complete
(Superseded to 5042317BFS)

$56.99

$

Usually ships in 2-12 days

0

52

Ferris 5021160

FITTING, 90 Degrees 1/2" NPT
(Superseded to 5021160SM)

$27.99

$

Usually ships in 2-12 days

0

53

Ferris 5030774B

HYDRO TANK WELDMENT

$284.99

$

Usually ships in 2-12 days

0

54

Ferris 5043660B

Plate Bracket

$23.99

$

Usually ships in 2-12 days

0

55

Ferris 5042328B

Spring Anchor

$20.99

$

Usually ships in 2-12 days

0

56

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

57

Ferris 5043971B

BRAKE ROCKER ARM

$

$

Currently unavailable

58

Ferris 5043980

Fuel Tank Mount Plate

$26.99

$

Usually ships in 2-12 days

0

59

Ferris 5043670

Dump Valve Rod Assembly

$11.99

$

Usually ships in 2-12 days

0

60

Ferris 5043982

SPRING BAR ASSEMBLY

$31.99

$

Usually ships in 2-12 days

0

61

Ferris 5021667

SPRING, Compression

$

$

Not available

62

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

63

Ferris 5043976

BRAKE LINKAGE ROD

$23.99

$

Usually ships in 2-12 days

0

64

Ferris 5021707

NIPPLE, 3/8 NPT X 4-1/2

$

$

Currently unavailable

65

Ferris 5025211

HAIRPIN CLIP
(Superseded to 5025211SM)

$3.99

$

Usually ships in 2-12 days

0

66

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

$5.49

$

Usually ships in 2-12 days

0
