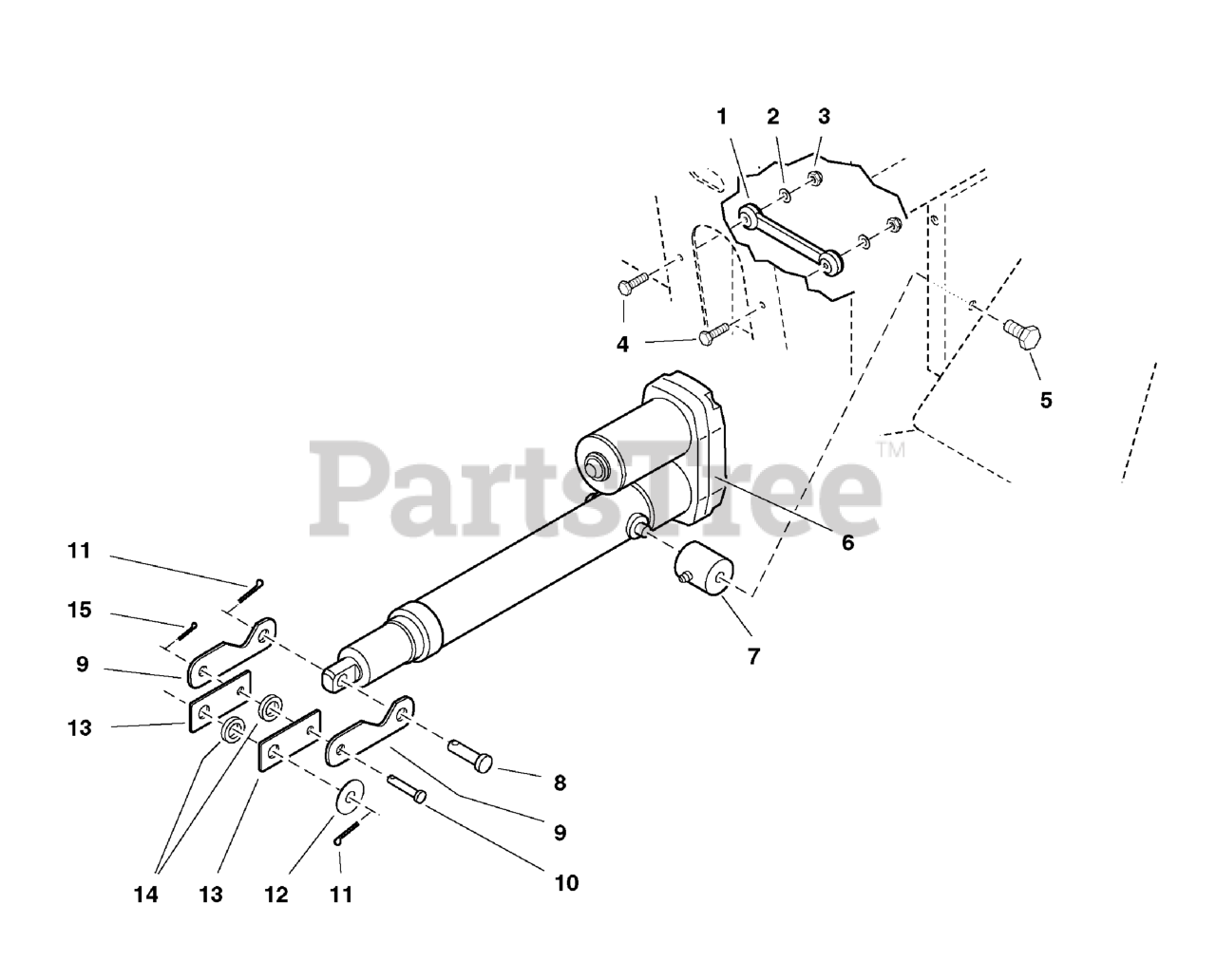

ProCut 30 (5901036) - Ferris ProCut 30 Front Mount Mower, 27hp Kohler Deck Lift Group Parts Diagram

ProCut 30 Front Mount Mower, 27hp Kohler

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5020959

RUBBER STRAP
(Superseded to 5020959SM)

$7.49

$

Usually ships in 2-12 days

0

2

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, only 4 left!

0

4

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 16

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 3 left!

0

6

Ferris 5043536

ELECTRIC ACTUATOR
(Superseded to 5100713SM)

$1131.99

$

Usually ships in 2-12 days

0

7

Ferris 5044082

ACTUATOR MOUNT
(Superseded to 5044082SM)

$48.99

$

Usually ships in 2-12 days

0

8

Ferris 5043688

PIN, Clevis
(Superseded to 5043688SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5043677

ACTUATOR LINK, Lower
(Superseded to 5043677FS)

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5025214X8

CLEVIS PIN, 3/8 x 1
(Superseded to 5025214X8FS)

$6.99

$

In Stock, only 1 left!

0

11

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5044618

ACTUATOR LINK, Upper
(Superseded to 5044618FS)

$16.99

$

Usually ships in 2-12 days

0

14

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$6.49

$

In Stock, only 3 left!

0

15

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0
