ProCut 30 (5901036) - Ferris ProCut 30 Front Mount Mower, 27hp Kohler Engine & PTO Group - Kohler Parts Diagram

ProCut 30 Front Mount Mower, 27hp Kohler

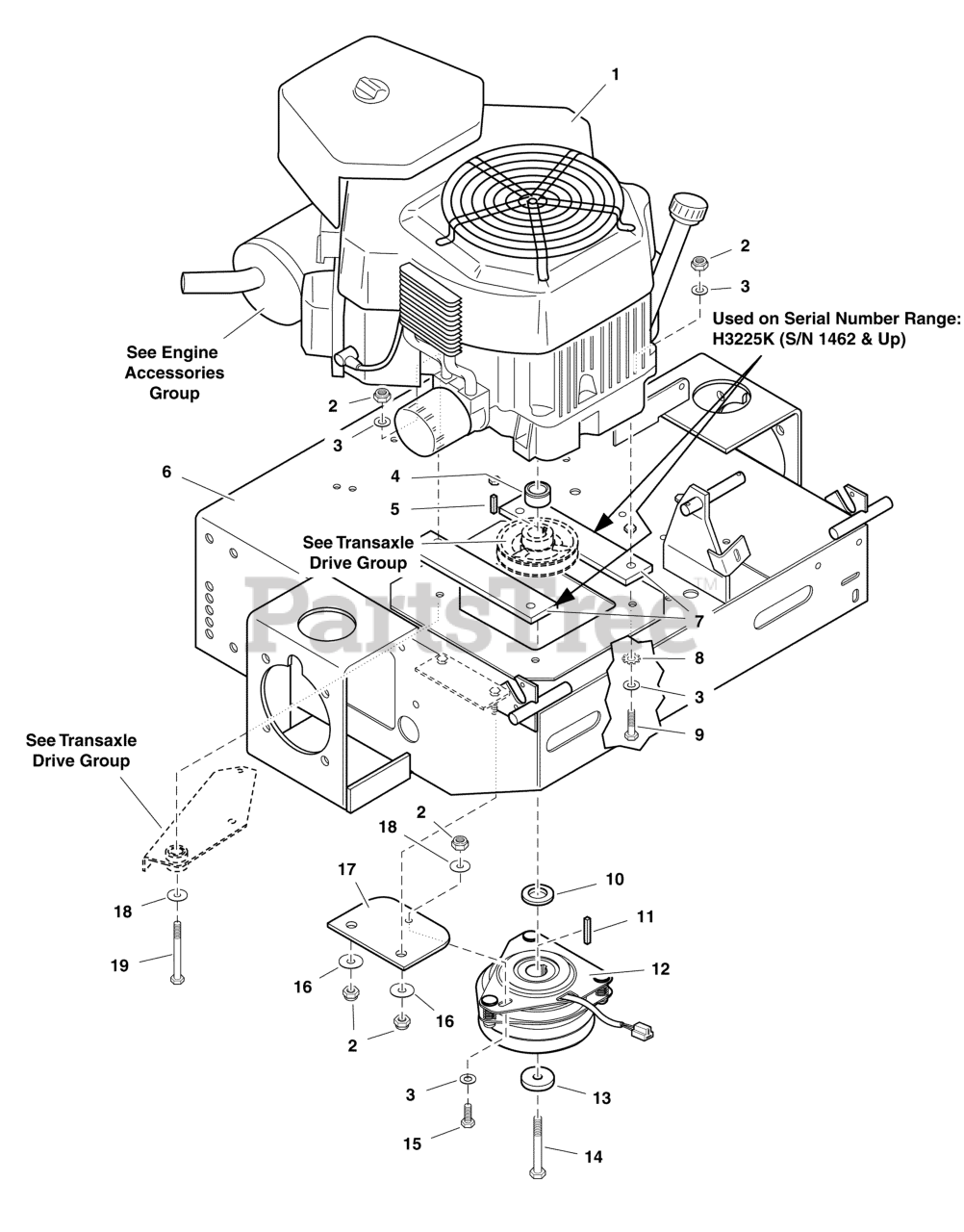

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

ENGINE, 25HP Kohler (Model CV730S)

Note: (H3225K S/N: 1462 & above)

$

$

Not available

1

ENGINE, 22HP Kohler (Model CV22S)

Note: (H3225K, S/N: 1023 - 1461)

$

$

Not available

1

ENGINE, 25HP Kohler (Model CV25S)

Note: (H3225K, S/N: 1023 - 1461)

$

$

Not available

1

ENGINE, 27HP Kohler (Model CV740V)

$

$

Not available

2

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5042840

SPACER, 1.13 X 1.75 X .88

Note: (H3225K, S/N: 1462 & above)

$

$

Not available

4

Ferris 5044062

SPACER, 1.13 X 1.75 X .50
(Superseded to 5044062SM)

Note: (H3225K, S/N: 1023 - 1461)

$19.99

$

In Stock, only 1 left!

0

5

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5031130B

ENGINE DECK

Note: (H3225K, S/N: 1023 & Above)

$

$

Currently unavailable

7

Ferris 5045352B

SPACER, Engine Block

Note: (H3225K, S/N: 1462 & above)

$

$

Currently unavailable

8

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

Note: (H3225K, S/N: 1462 & above)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

Note: (H3225K, S/N: 1023 - 1461)

$3.49

$

In Stock, only 1 left!

0

10

Ferris 5048135

SPACER, 1.13 x 1.75 x .62
(Superseded to 5048135FS)

Note: (H3225K, S/N: 1462 & above)

$17.99

$

Usually ships in 2-12 days

0

10

Ferris 5042945

SPACER, 1.13 x 2.00 x .19

Note: (H3225K, S/N: 1023 - 1461)

$

$

Currently unavailable

11

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

$687.99

$

Usually ships in 2-12 days

0

13

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

14

Ferris 5045289

CRANKSHAFT BOLT, 7/16 x 2-1/2
(Superseded to 5102864)

Note: (H3225K, S/N: 1462 & above)

$5.49

$

Usually ships in 2-12 days

0

14

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

Note: (H3225K, S/N: 1023 - 1461)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

16

Ferris 5044617

WASHER, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X28

BOLT, 5/16-18 x 3-1/2

Note: (H3225K, S/N: 1462 & above)

$

$

Currently unavailable

19

Ferris 5025011X24

BOLT, 5/16-18 x 3
(Superseded to 5025011X24SM)

Note: (H3225K, S/N: 1023 - 1461)

$3.99

$

Usually ships in 2-12 days

0
