ProCut 30 (H3020K) - Ferris ProCut 30 Front Mount Mower, 20hp Kohler (SN: 0101 & Above) 72" Mower Deck - Complete Parts Diagram

ProCut 30 Front Mount Mower, 20hp Kohler

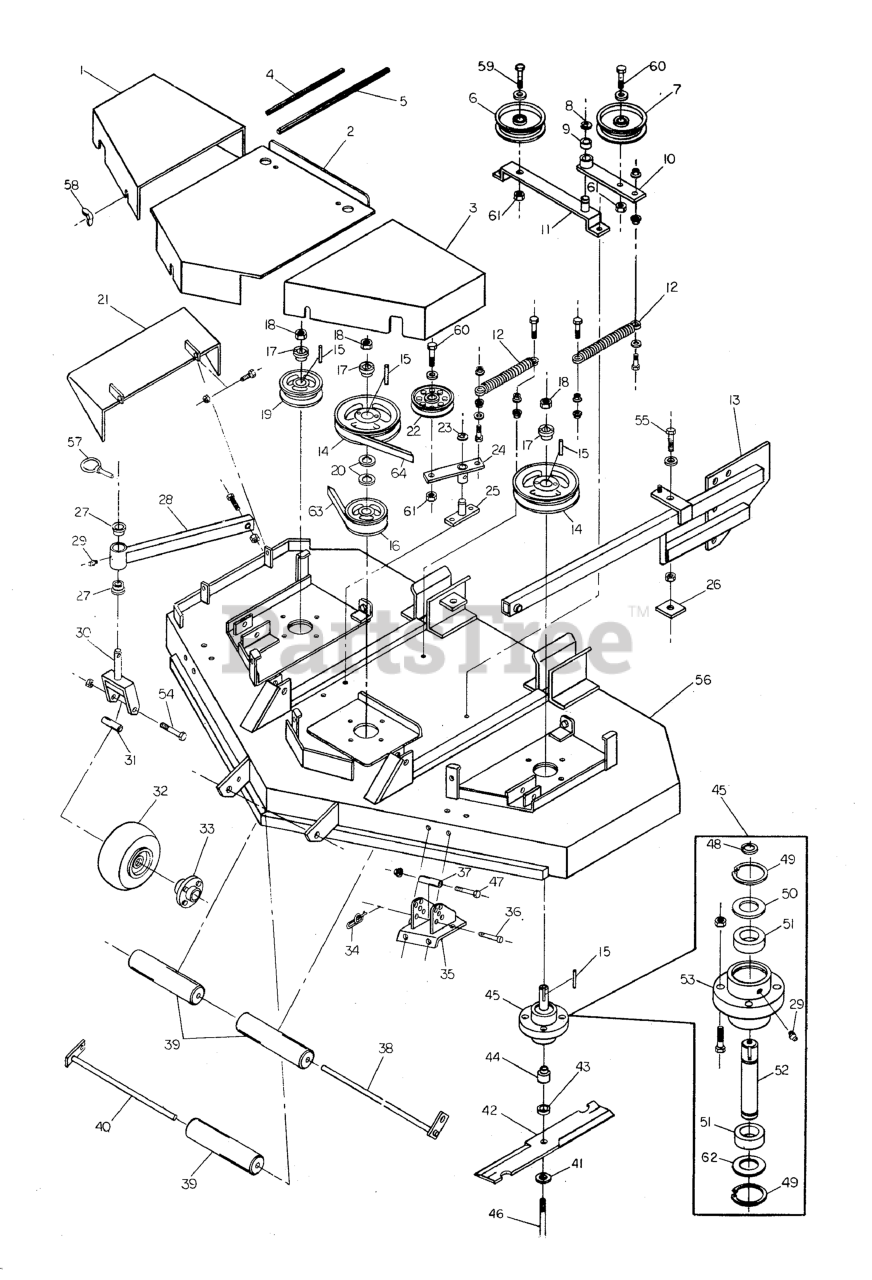

72" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5043065

Guard Right Side

$

$

Currently unavailable

2

Ferris 5043063

Center Guard

$

$

Currently unavailable

3

Ferris 5043064

Guard Left Side

$142.99

$

Usually ships in 2-12 days

0

4

Ferris 50853-4

Body Molding 17 5/8" Long

$

$

Currently unavailable

5

Ferris 50853-3

Body Molding 24" Long

$

$

Currently unavailable

6

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

7

Ferris 5043058

Idler Pulley

$56.99

$

Usually ships in 2-12 days

0

8

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5020873

BELT, Blade Spindle

$87.99

$

Usually ships in 2-12 days

0

10

Ferris 5043007B

IDLER ARM, Complete

$70.99

$

Usually ships in 2-12 days

0

11

Ferris 5042141

Idler Mount

$133.99

$

Usually ships in 2-12 days

0

12

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

13

Ferris 43020

Deck Mounting Arm left

$

$

Currently unavailable

13

Ferris 5043019

Deck Mounting Arm Right

$

$

Currently unavailable

14

Ferris 5021410

PULLEY, Spindle

$192.99

$

Usually ships in 2-12 days

0

15

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

Usually ships in 2-12 days

0

16

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

17

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

18

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

20

Ferris 5020916

1/8" Spacer

$

$

Currently unavailable

21

Ferris 43039

DISCHARGE CHUTE

$

$

Currently unavailable

22

Ferris 5043049

Idler Pulley

$31.99

$

Usually ships in 2-12 days

0

23

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5043022B

Idler Arm

$39.99

$

Usually ships in 2-12 days

0

25

Ferris 5041629B

IDLER MOUNT

$26.99

$

Usually ships in 2-12 days

0

26

Ferris 5043031

Weld Nut

$

$

Currently unavailable

27

Ferris 21137

Plastic Bushing

$

$

Currently unavailable

28

Ferris 5043038

Caster Arm

$

$

Currently unavailable

29

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 1 left!

0

30

Ferris 43005

Caster Yoke

$

$

Not available

31

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

In Stock, only 2 left!

0

32

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

33

Ferris 21184-4

Hub

$

$

Currently unavailable

34

Ferris 25209

Rue Clip

$

$

Currently unavailable

35

Ferris 5043048

Caster Guide Left

$

$

Currently unavailable

35

Ferris 5043047

Caster Guide Right

$

$

Currently unavailable

36

Ferris 25208

3/8 Clevis Pins

$

$

Currently unavailable

37

Ferris 5043029

SPACER, .38 x .50 x 1.50

$

$

Currently unavailable

38

Ferris 5043009

Roller Support Rod

$

$

Currently unavailable

39

Ferris 20789

Drive Tire Assembly (Tire & Rim)

$

$

Currently unavailable

40

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 1 left!

0

41

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

42

Ferris 5021408

MOWER BLADE, 24-1/2"

$

$

Currently unavailable

43

Ferris 5043028

SPACER, .64 x 1.75 x .25

$6.49

$

Usually ships in 2-12 days

0

44

Ferris 5043027

Spindle Spacer

$30.99

$

Usually ships in 2-12 days

0

45

Ferris 30656

Spindle Assembly

$

$

Currently unavailable

46

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

47

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

48

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

49

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

50

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

51

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

52

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

53

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

54

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 1 left!

0

55

Ferris 5043050

1/2-13 x 5-1/2 Bolt

$

$

Currently unavailable

56

Ferris 30639

72" MOWER HOUSING

$

$

Currently unavailable

57

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 3 left!

0

58

Ferris 5025143

NUT, 3/8-16 Wing Nylon Lock

$4.99

$

Usually ships in 2-12 days

0

59

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

60

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

61

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

62

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

63

Ferris 5021414

Belt

$51.99

$

Usually ships in 2-12 days

0

64

Ferris 5021415

Belt

$

$

Currently unavailable
