ProCut S (5900534) - Ferris Procut S Front Mount Mower, 28hp Briggs & Stratton Battery Compartment Group Parts Diagram

Procut S Front Mount Mower, 28hp Briggs & Stratton

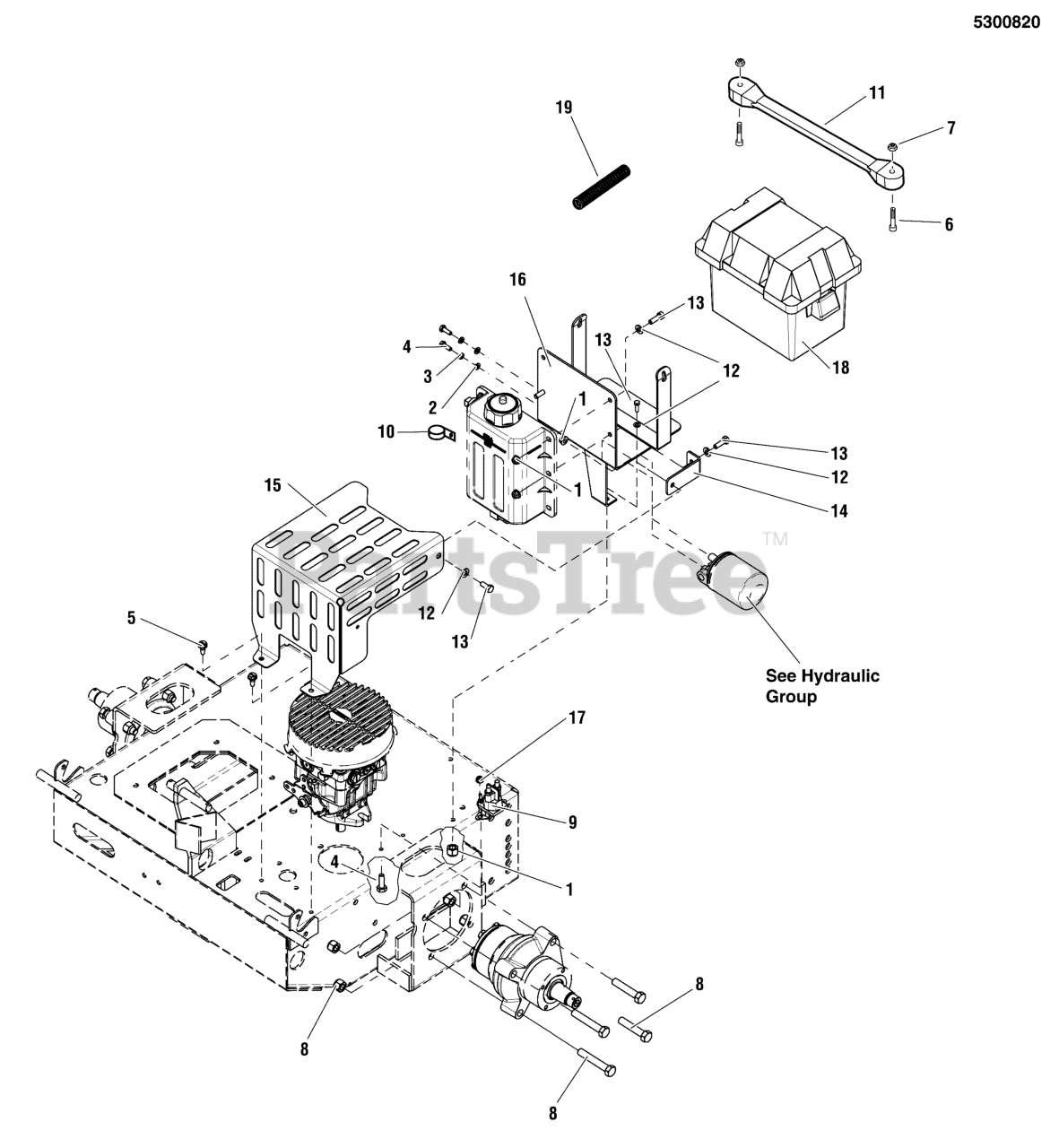

Battery Compartment Group Parts Diagram

  • Title

1

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

5

Ferris 5025059X6

BOLT, 5/16-18 X 3/4", SELF-TAPPING
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

Refer to Hydraulic Components Service Group

$

$

Not available

9

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

10

Ferris 5023173

CLAMP, HOSE, 1.000 DIA
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5402505B

BRACKET, MUFFLER - RED
(Superseded to 5407430BFS)

$30.99

$

Usually ships in 2-12 days

0

15

Ferris 5402398B

PLATE, PUMP COVER - RED
(Superseded to 5402398BFS)

$52.99

$

Usually ships in 2-12 days

0

16

Ferris 5401852B

WELD, BATTERY BOX & RES. MOUNT - RED
(Superseded to 5401852BFS)

$219.99

$

Usually ships in 2-12 days

0

17

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

19

Ferris 5050833X10

WIRE LOOM, 1/2 ID X 10 IN
(Superseded to 5050833X10YP)

Note: (Installed on positive battery cable that runs from battery to starter)

$3.49

$

Usually ships in 2-12 days

0
