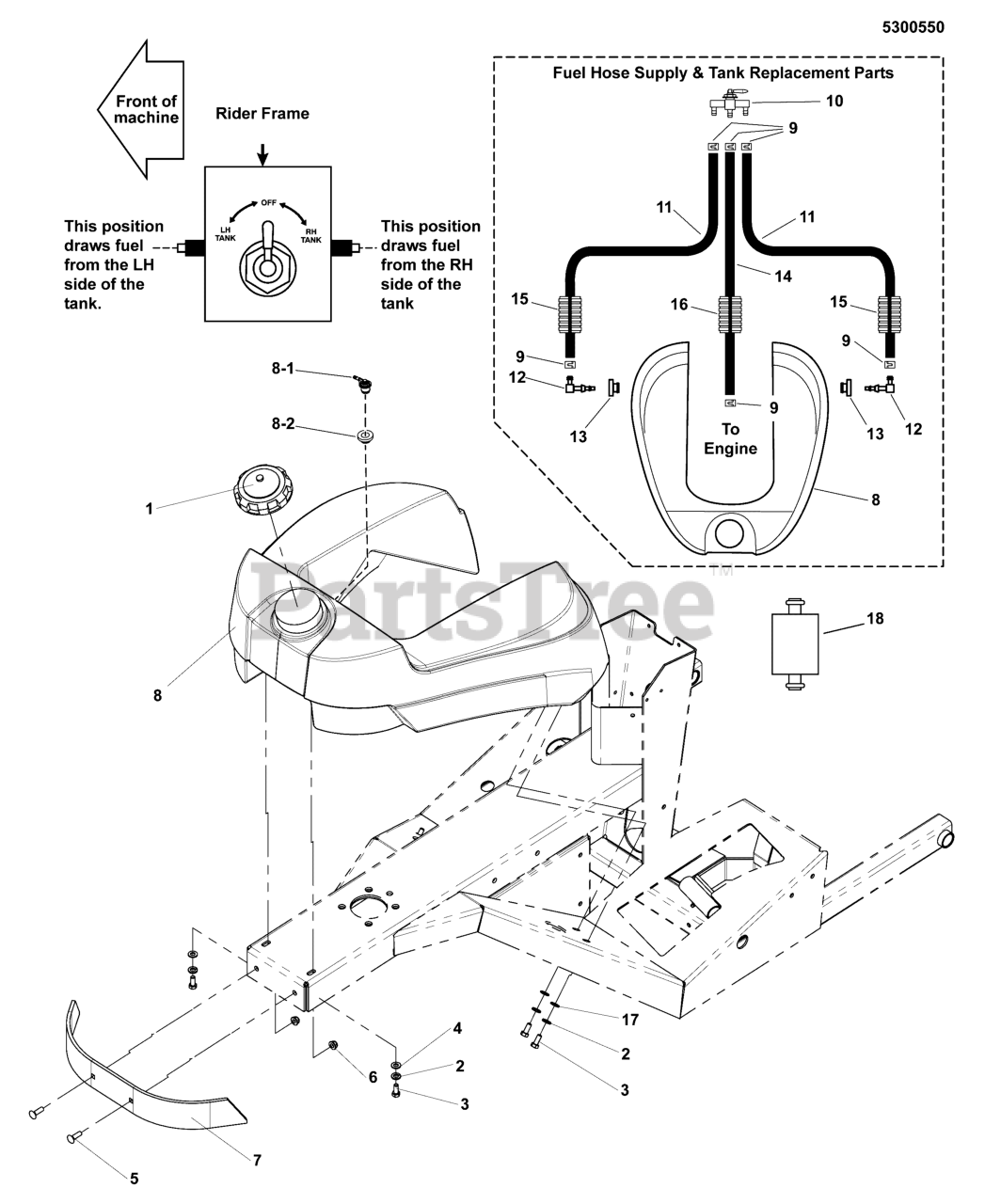

ProCut S (5900631) - Ferris Procut S Front Mount Mower, 25hp Kohler Fuel Tank & Mount Group Parts Diagram

Procut S Front Mount Mower, 25hp Kohler

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014754381 & Below)

$26.99

$

In Stock, Qty 6

0

1

Ferris 5103005

CAP, FUEL TANK
(Superseded to 84005958)

Note: (S/N: 2014754382 & Above)

$41.99

$

In Stock, only 2 left!

0

2

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025145X8

BOLT, 5/16-18 X 1", CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

6

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5402393B

BAR, BUMPER, TWR - RED
(Superseded to 5402393BFS)

$142.99

$

Usually ships in 2-12 days

0

8

Ferris 5100749

TANK, FUEL - TWR
(Superseded to 5103179FS)

Note: (S/N: 2014754381 & Below)(Includes items #8-1 and #8-2)

$468.99

$

Usually ships in 2-12 days

0

8

Ferris 5103179

TANK, FUEL, TWR
(Superseded to 5103179FS)

Note: (S/N: 2014754382 & Above)(Includes items #8-1 and #8-2)

$468.99

$

Usually ships in 2-12 days

0

8-1

Ferris 80019626

ASSY., REMOTE VENT - NO VALVE

$

$

Currently unavailable

8-2

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$9.49

$

In Stock, only 3 left!

0

9

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5023358

VALVE, FUEL, STR. OUTLET
(Superseded to 5023358SM)

$51.99

$

Usually ships in 2-12 days

0

11

Ferris 5050831X42

HOSE, FUEL, 1/4 IN, LW PRMTN X 42

$

$

Not available

12

Ferris 5023061

ELBOW FITTING
(Superseded to 5023061SM)

$11.99

$

In Stock, only 2 left!

0

13

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 15

0

14

Ferris 5050831X21

HOSE, 1/4" FUEL, 21.00"
(Superseded to 5050831X21FS)

Note: (Kawasaki FH Series Models)

$12.99

$

Usually ships in 2-12 days

0

14

Ferris 5050831X28

HOSE, 1/4" FUEL, 28.00"
(Superseded to 5050831X28SM)

Note: (Briggs & Stratton & Kohler Models)

$12.99

$

Usually ships in 2-12 days

0

14

Ferris 5050831X13

HOSE, 1/4" FUEL, 13.00"
(Superseded to 5050831X13FS)

Note: (Kawasaki FS Series Models)

$9.49

$

In Stock, only 1 left!

0

15

Ferris 5050833X39

WIRE LOOM, 1/2" ID, 39"

$

$

Currently unavailable

16

Ferris 5050833X18

WIRE LOOM, 1/2" ID, 18"

Note: (Kawasaki FH Series Models)

$9.99

$

Usually ships in 2-12 days

0

16

Ferris 5050833X28

WIRE LOOM, 1/2 ID, 28"

Note: (Briggs & Stratton & Kohler Models)

$

$

Currently unavailable

16

Ferris 5050833X6

WIRE HOSE, 1/2" ID, 6"
(Superseded to 5050833X6YP)

Note: (Kawasaki FS Series Models)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 1 left!

0
