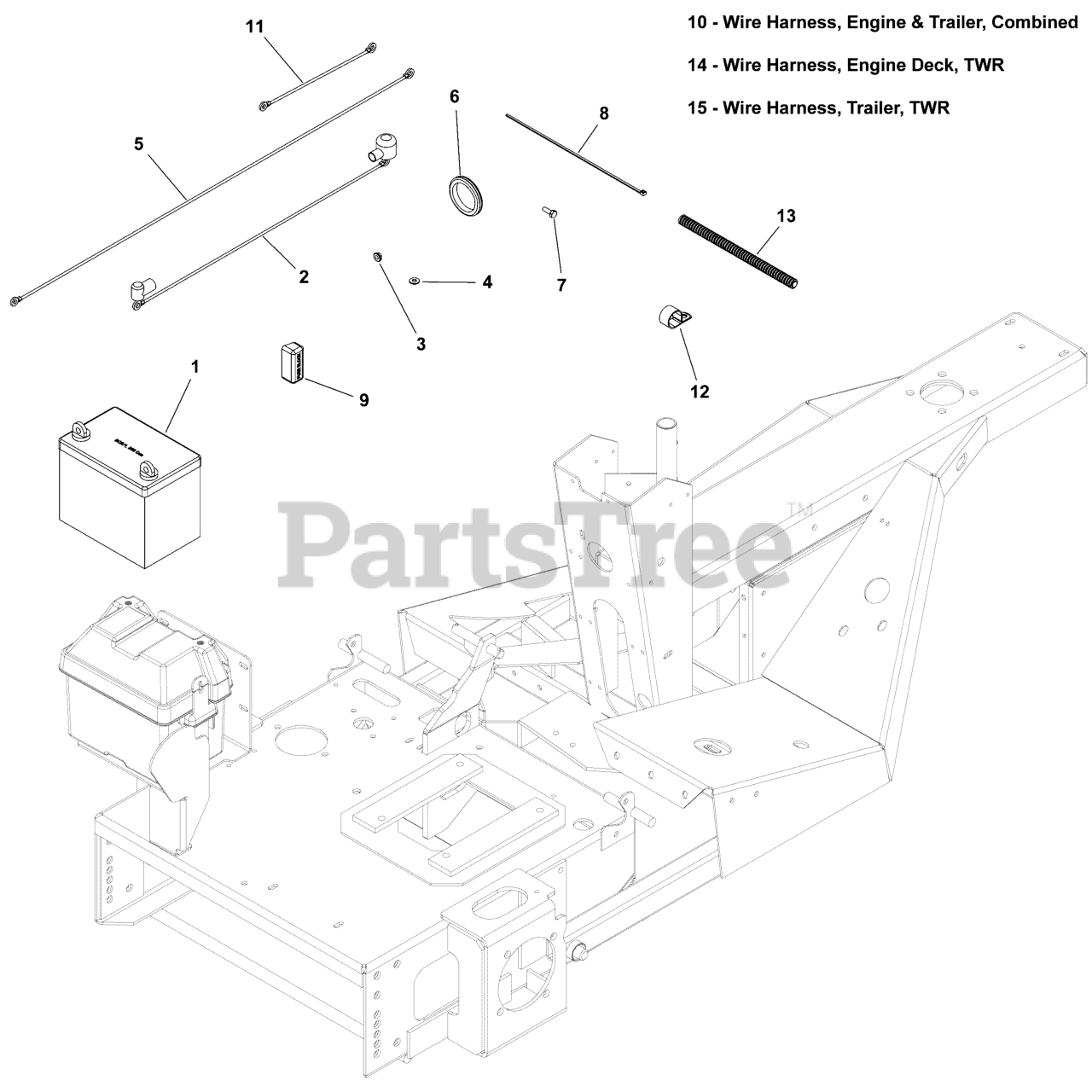

ProCut S (5900701) - Ferris Procut S Front Mount Mower, 27hp Kohler Electrical Group Parts Diagram

Procut S Front Mount Mower, 27hp Kohler

Electrical Group Parts Diagram

  • Title

1

BATTERY, 11U1L, 350 CCA

$

$

Not available

2

Ferris 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

3

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5045894

BATTERY CABLE, NEG, 35, 1/4-5/16

$

$

Currently unavailable

6

Ferris 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

7

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

8

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

9

Ferris 5022805

COVER, VINYL, FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 5401985

WIRE HARNESS 3-WHEEL RIDER

Note: (S/N: 2000702487 and Below)

$195.99

$

Usually ships in 2-12 days

0

11

Ferris 5044014

BATTERY CABLE, NEGATIVE, 10
(Superseded to 5044014SM)

Note: (S/N: 2000702487 and Below)

$14.99

$

Usually ships in 2-12 days

0

12

Ferris 5023173

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5050927X10

WIRE LOOM, 3/8 ID X 10 IN
(Superseded to 5050927X10FS)

$2.49

$

Usually ships in 2-12 days

0

14

Ferris 5402818

WIRE HARNESS ENGINE DECK TWR
(Superseded to 5402818FS)

Note: (S/N: 2000702488 and Above)

$278.99

$

Usually ships in 2-12 days

0

15

Ferris 5402819

WIRE HARNESS TRAILER TWR
(Superseded to 5402819FS)

Note: (S/N: 2000702488 and Above)

$355.99

$

Usually ships in 2-12 days

0
