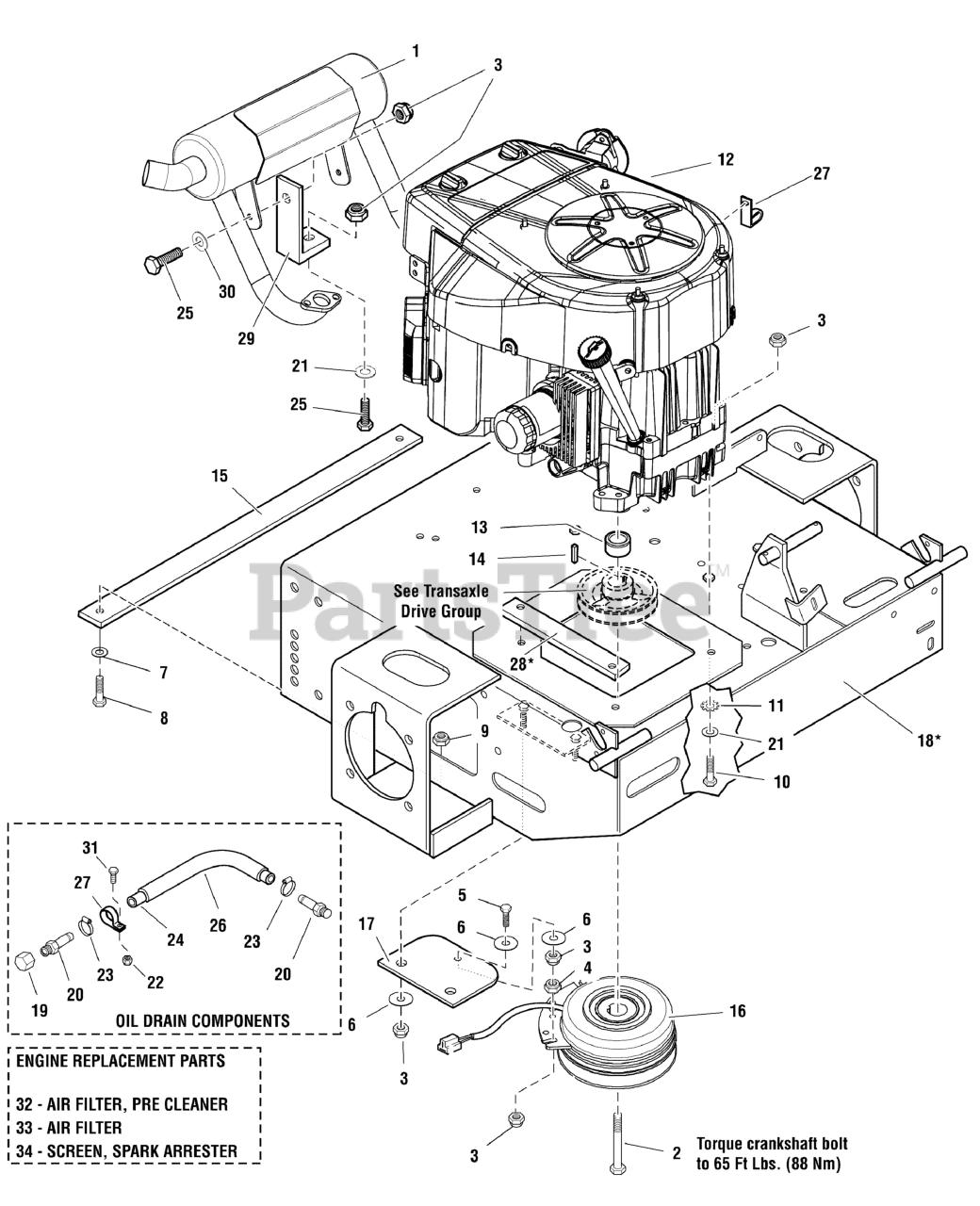

ProCut S (5900701) - Ferris Procut S Front Mount Mower, 27hp Kohler Engine & PTO Group - Kohler Parts Diagram

Procut S Front Mount Mower, 27hp Kohler

Engine & PTO Group - Kohler Parts Diagram

  • Title

1

Ferris 5100955

MUFFLER, 27HP KOHLER

$331.99

$

Usually ships in 2-12 days

0

2

Ferris 5102864

BOLT, CRANKSHAFT, 7/16"X2-1/2
(Superseded to 5102864YP)

$5.49

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

7

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

8

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

10

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

12

ENGINE, 27HP KOHLER

$

$

Not available

13

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.347
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

14

Ferris 5050407X10

KEY, 1/4" SQ. X 1.25
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 1 left!

0

15

Ferris 5401865B

TIE BAR - RED
(Superseded to 5401865BFS)

$33.99

$

Usually ships in 2-12 days

0

16

Ferris 5105090

** CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

17

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

18a

Ferris 5403916B

WELD, ENGINE DECK-TWR - RED

Note: (S/N: 2012696822 & ABOVE)

$

$

Currently unavailable

18b

Ferris 5401574B

WELD, ENGINE DECK, TWR - RED

Note: (S/N: 2012696821 & BELOW)

$2051.99

$

Usually ships in 2-12 days

0

19

Ferris 5021466

CAP, 3/8" NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

20

Ferris 5021372

FITTING, 3/8NPT-1/2" HOSE. STR
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

21

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

22

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5021392

CLAMP, #6 HOSE, STAINLESS
(Superseded to 5021392SM)

$4.99

$

In Stock, only 2 left!

0

24

Ferris 5050857X18P5

HOSE, 1/2" PUSH-ON, 18.50"

$

$

Currently unavailable

25

Ferris 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5050862X16

WIRE LOOM, 3/4" ID, 16.00

$

$

Currently unavailable

27

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5045352B

SPACER, ENGINE BLOCK

Note: (S/N: 2012696821 & BELOW)

$

$

Currently unavailable

29

Ferris 5407430B

BRACKET, MUFFLER - RED
(Superseded to 5407430BFS)

$30.99

$

Usually ships in 2-12 days

0

30

Ferris 5025292

WASHER, 5/16" GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

31

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

32

Ferris 5101254X1

PRE CLEANER, 27HP KOHLER ENGINE

$

$

Not available

33

Ferris 5101254X2

FILTER ELEMENT, 27HP KOHLER ENGINE

$

$

Not available

34

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

$84.99

$

Usually ships in 2-12 days

0
