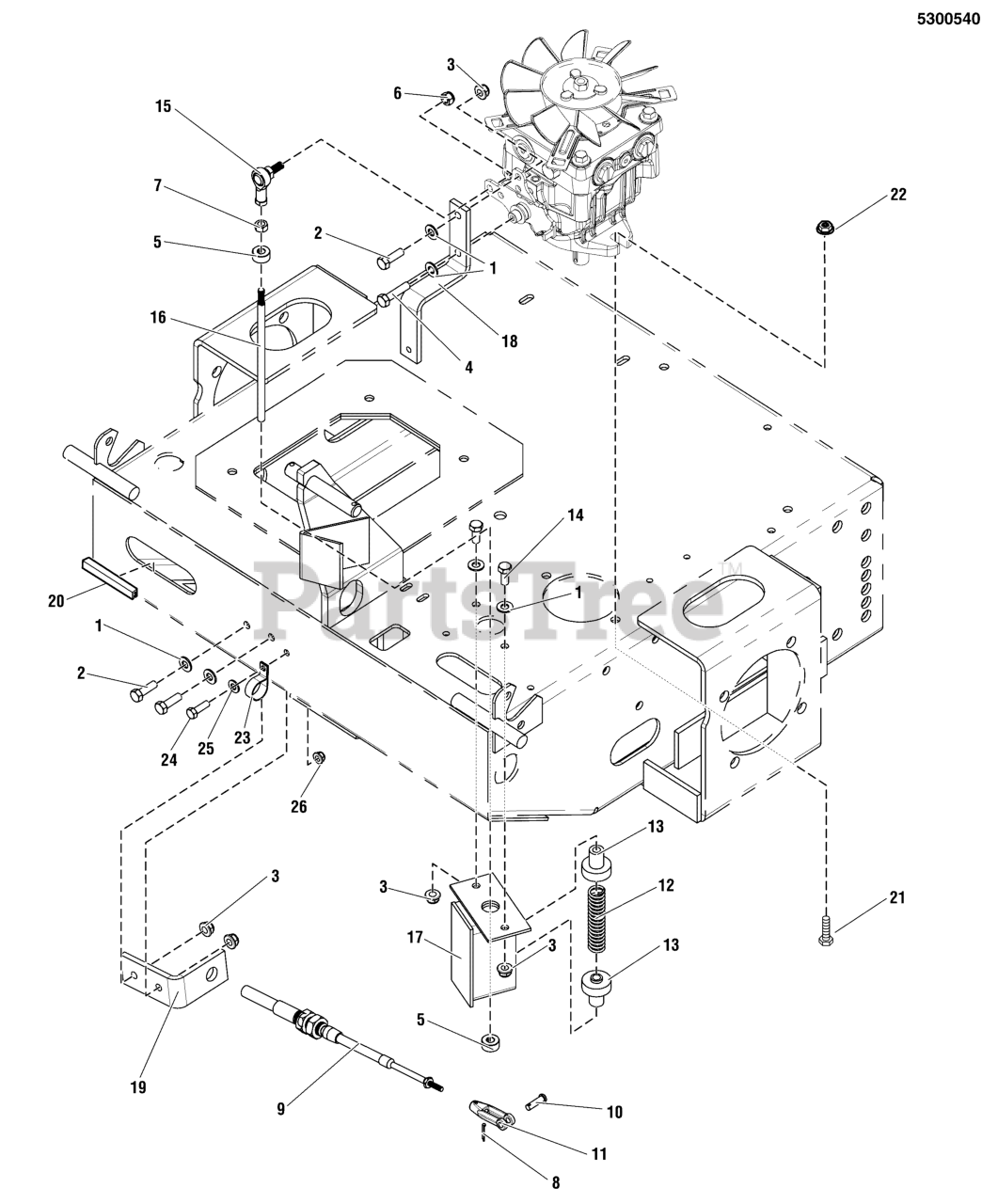

ProCut S (5900701) - Ferris Procut S Front Mount Mower, 27hp Kohler Motion Control Group - Engine Deck Parts Diagram

Procut S Front Mount Mower, 27hp Kohler

Motion Control Group - Engine Deck Parts Diagram

  • Title

1

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

2

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

6

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

7

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5100801

CABLE, SPEED CONTROL, 36"
(Superseded to 5100801FS)

$113.99

$

Usually ships in 2-12 days

0

10

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 84007748

CLEVIS

$13.99

$

Usually ships in 2-12 days

0

12

Ferris 5021354

SPRING, BRAKE RETURN
(Superseded to 5021354FS)

$22.99

$

Usually ships in 2-12 days

0

13

Ferris 5042911

SPRING RETURN GUIDE
(Superseded to 5042911FS)

$69.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5104833

BALL JOINT, 5/16-24 RH FEMALE W/STUD, BR
(Superseded to 5104833FS)

$18.99

$

Usually ships in 2-12 days

0

16

Ferris 5100820

ROD, NEUTRAL RETURN
(Superseded to 5100820FS)

$9.99

$

Usually ships in 2-12 days

0

17

Ferris 5402376B

WELD, NEUTRAL RETURN, TWR - RED
(Superseded to 5402376BFS)

$77.99

$

Usually ships in 2-12 days

0

18

Ferris 5402164B

BAR, 1/4 X 1.00, MOTION CONTROL - RED
(Superseded to 5402164BFS)

$32.99

$

Usually ships in 2-12 days

0

19

Ferris 5402194B

BRACKET, CABLE MOUNT - RED
(Superseded to 5402194BFS)

$30.99

$

Usually ships in 2-12 days

0

20

Ferris 5050840X3P5

BLACK SOFTONE Q-TRIM 3.5" LONG

$

$

Currently unavailable

21

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

22

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

23

Ferris 5021500

CLAMP, VINYL
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

25

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025391

NUT, 1/4-20 NYLON FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0
