ProCut Z (5901086) - Ferris ProCut Z Series Zero-Turn Mower, 25hp Kohler Main Frame Group Parts Diagram

ProCut Z Series Zero-Turn Mower, 25hp Kohler

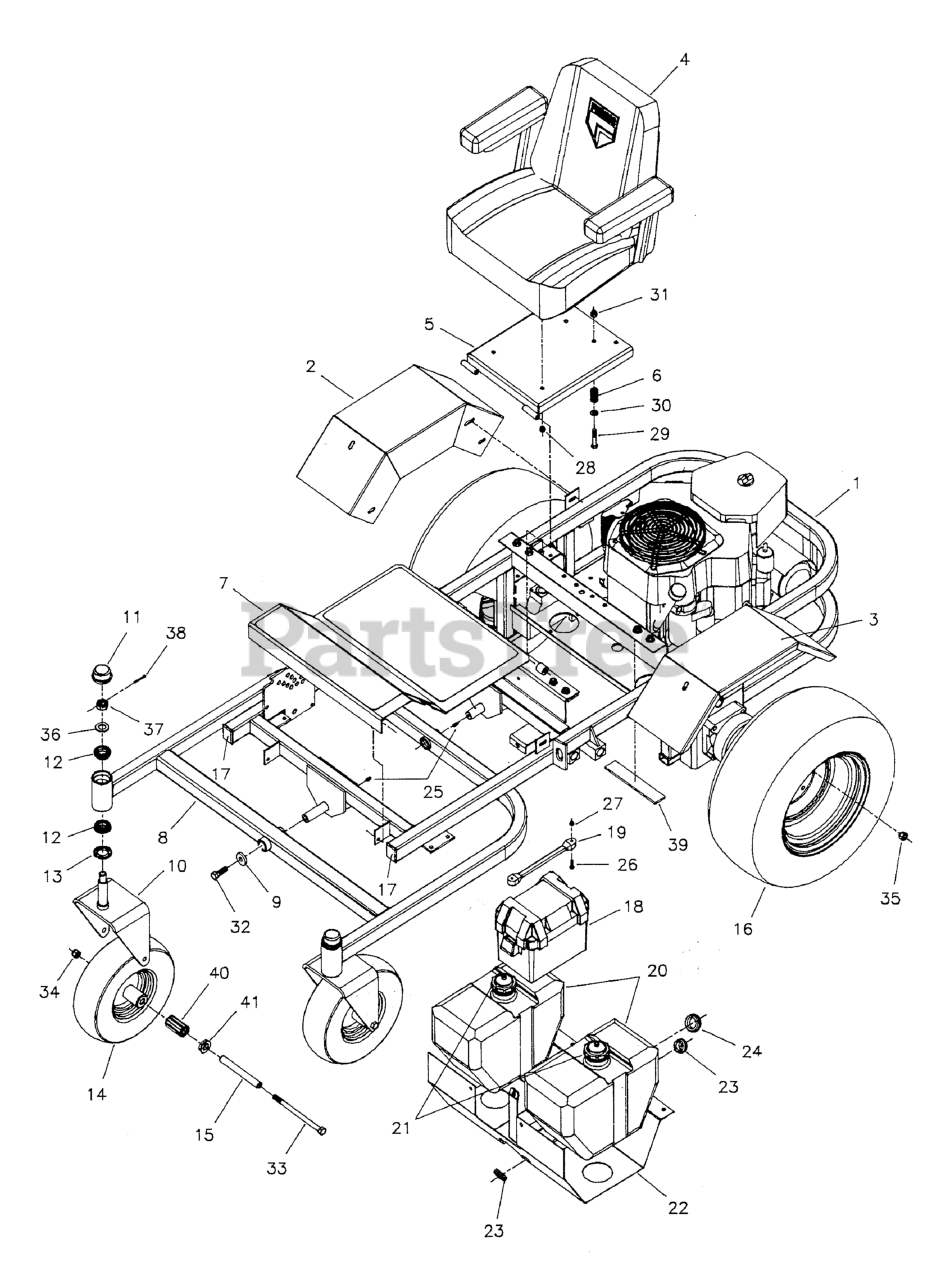

Main Frame Group Parts Diagram

  • Title

1

Ferris 5044877

FRAME, Main

$

$

Currently unavailable

2

Ferris 5045093

FENDER, Right

$

$

Not available

3

Ferris 5045094B

FENDER, Left

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5022031

SEAT, GRAY, NO LOGO, CMPT

$

$

Currently unavailable

5

Ferris 5044982B

SEAT, Plate

$

$

Currently unavailable

6

Ferris 5021102

SPRING, Compression
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

7

Ferris 5060013

FLOOR PLATE ASSEMBLY

$353.99

$

Usually ships in 2-12 days

0

-

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$68.99

$

Usually ships in 2-12 days

0

8

Ferris 5044908B

FRAME, Front Pivot

$712.99

$

Usually ships in 2-12 days

0

9

Ferris 5044913

WASHER, Frame Retaining
(Superseded to 5044913SM)

$6.99

$

Usually ships in 2-12 days

0

10

Ferris 5044914B

YOKE, Caster

$110.99

$

Usually ships in 2-12 days

0

11

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

12

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, only 2 left!

0

13

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

14

Ferris 5022029

WHEEL & TIRE ASSEMBLY, 13 x 5.0 x 6, Complete
(Superseded to 5022631SSM)

$168.99

$

In Stock, only 2 left!

0

15

Ferris 5022100

SHAFT, Caster Axle

$14.99

$

Usually ships in 2-12 days

0

16

Ferris 5021353

WHEEL & TIRE ASSEMBLY, 23 x 10.5-12, White, Complete

$398.99

$

Usually ships in 2-12 days

0

17

Ferris 5022098

CAP, Plastic
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5021666

BOX, Battery
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

19

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$13.99

$

Usually ships in 2-12 days

0

20

Ferris 5021437

FUEL TANK, 4 Gallon

$160.99

$

Usually ships in 2-12 days

0

21

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

22

Ferris 5044938B

MOUNT, Fuel Tank

$

$

Currently unavailable

23

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

24

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

25

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

26

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

30

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 4 left!

0

32

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

Usually ships in 2-12 days

0

33

Ferris 5025017X60

BOLT, 1/2-13 x 7-1/2
(Superseded to 5025488X60FS)

$13.99

$

Usually ships in 2-12 days

0

34

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

35

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

36

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

38

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

40

Ferris 5021042

BEARING, Roller

Note: (2 per tire)

$

$

Currently unavailable

41

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

42

Ferris 5050831X24

1/4" Fuel Line, 24" Long
(Superseded to 5050831X24YP)

Note: (Tank to valve, Not Shown)

$8.99

$

Usually ships in 2-12 days

0

43

Ferris 5050831X36

1/4" Fuel Line, 36" Long
(Superseded to 5050831X36SM)

Note: (Valve to Engine, Not Shown)

$13.99

$

Usually ships in 2-12 days

0

44

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0
