PS 14120 B (090079306) - PowerStroke 1600 PSI Pressure Washer General Assembly Parts Diagram

1600 PSI Pressure Washer

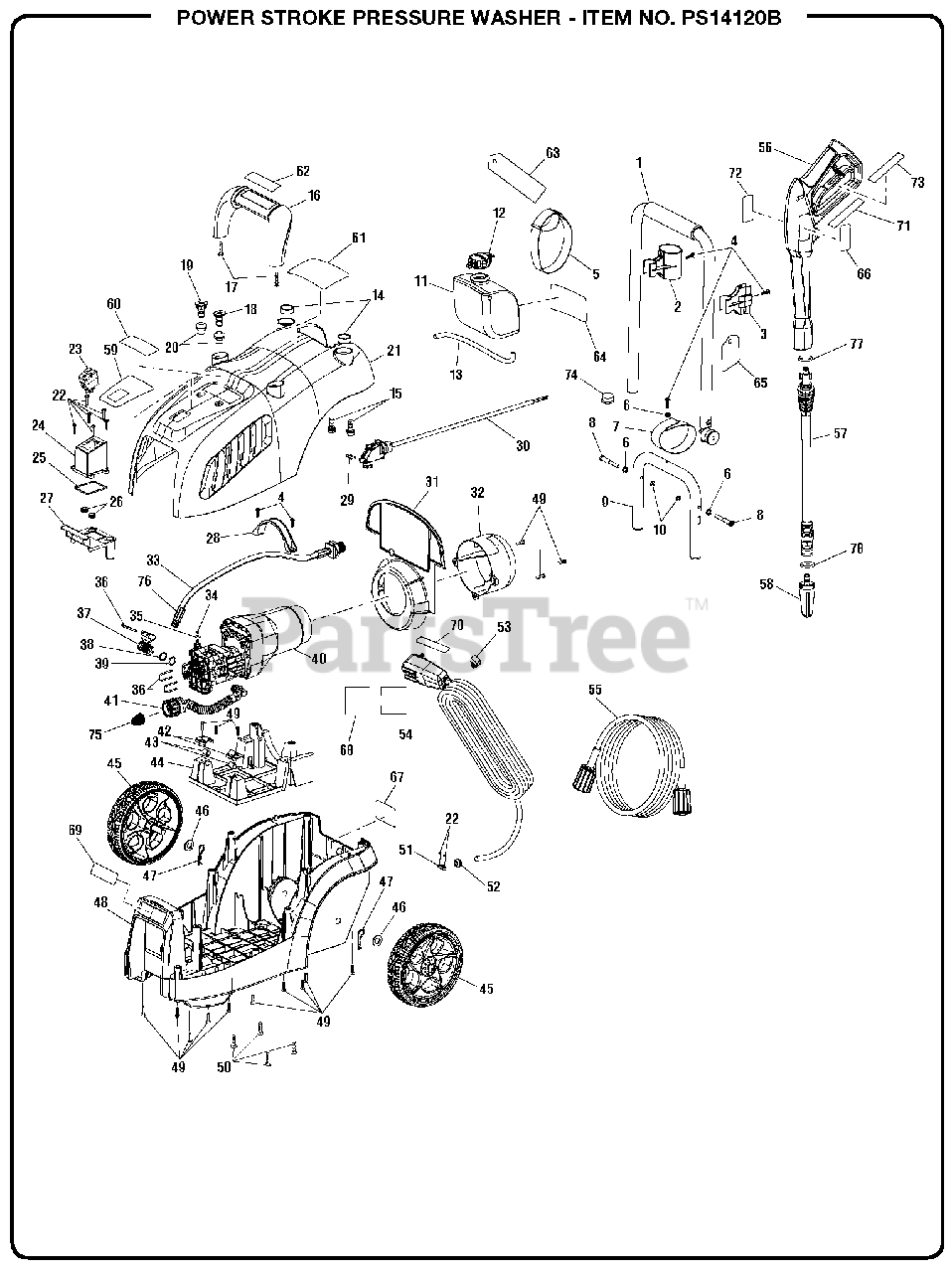

General Assembly Parts Diagram

  • Title

1

Homelite 310224068

Handle Assembly

Note: (Inc. Key No. 74)

$

$

Currently unavailable

2

Homelite 519313012

Trigger Handle Holder

$

$

Not available

3

Homelite 519313013

Wand Holder

$

$

Not available

4

Homelite 661403014

Screw (M4.2 x 16 mm)

$

$

Not available

5

Homelite 310801005

Velcro Strap (For Hose)

$

$

Not available

6

Homelite 638397005

Washer (ID8 x OD12 x 2.5t)

$

$

Not available

7

Homelite 310801006

Velcro Strap (For Power Cord)

$

$

Not available

8

Homelite 620599026

Shoulder Bolt (M6 x 52.5 mm)

$

$

Not available

9

Homelite 638221010

Lower Handle

$

$

Not available

10

Homelite 678460001

Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 580875013

Soap Tank

$

$

Not available

12

Homelite 518793008

Soap Tank Cap

$

$

Not available

13

Homelite 561399012

Chemical Siphon Tube

$

$

Not available

14

Homelite 528312001

Lower Handle Ring

$

$

Not available

15

Homelite 661554005

Bolt (M8 x 20 mm)

$

$

Not available

16

Homelite 527648002

Assist Handle

$

$

Not available

17

Homelite 660900003

Screw (M5.5 x 30 mm)

$

$

Not available

18

Homelite 308706013

Soap Nozzle (Blue)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 308698028

15deg Nozzle

$3.99

$

Usually ships in 3-7 days

0

20

Homelite 561383021

Nozzle Grommet

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 522032012

Upper Housing

$

$

Not available

22

Homelite 662206001

Screw (M3.5 x 16 mm)

$

$

Currently unavailable

23

Homelite 760504007

Switch

$6.49

$

In Stock, only 1 left!

0

24

Homelite 528441001

Switch Box

$

$

Not available

25

Homelite 570740038

Switch Seat Gasket

$

$

Not available

26

Homelite 561383012

Grommet

$

$

Not available

27

Homelite 528441002

Switch Bracket

$

$

Not available

28

Homelite 525893001

Motor Strap

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 678799014

U-Clip

$

$

Not available

30

Homelite 310870002

Switch Assembly (Total Stop Switch)

$16.99

$

In Stock, only 2 left!

0

31

Homelite 525894004

Heat Shield

$

$

Currently unavailable

32

Homelite 525894005

Air Funnel

$

$

Currently unavailable

33

Homelite 308835071

Water Outlet Assembly

Note: (Inc. Key No. 76)

$

$

Not available

34

Homelite 570742071

O-Ring (ID2.9 x 1.8t)
(Superseded to 570742086)

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 638397003

Washer (Brass)

$1.49

$

In Stock, only 1 left!

0

36

Homelite 678799013

U-Clip

$1.49

$

In Stock, Qty 5

0

37

Homelite 678646007

Outlet Connector

$

$

Not available

38

Homelite 570474010

Backup Ring

$

$

Not available

39

Homelite 561384007

O-Ring (ID14 x 2t)

$

$

Not available

40

Homelite 308833014

Pump and Motor Assembly
(Superseded to 308833019)

$

$

Not available

41

Homelite 308835072

Water Inlet Hose Assembly

Note: (Inc. Key No. 75)

$

$

Currently unavailable

42

Homelite 636204001

Clamp plate

$

$

Not available

43

Homelite 570570002

Shock Absorber

$

$

Not available

44

Homelite 528335001

Motor Support Board

$

$

Not available

45

Homelite 308451055

Wheel Assembly

$

$

Currently unavailable

46

Homelite 638397004

Washer

$

$

Not available

47

Homelite 678238004

Cotter Pin

$1.49

$

Usually ships in 3-7 days

0

48

Homelite 522038008

Lower Housing

$

$

Currently unavailable

49

Homelite 660403018

Screw (M4.2 x 16 mm)

$

$

Not available

50

Homelite 660900004

Screw (M5.5 x 20 mm)

$

$

Not available

51

Homelite 522051003

Cord Clamp

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 561383025

Grommet (Housing)

$

$

Not available

53

Homelite 528499001

Cord Clip

$

$

Not available

54

Homelite 290426018

Power Cord
(Superseded to 290426022)

$

$

Not available

55

Homelite 308835070

High Pressure Hose

$

$

Not available

56

Homelite 308760050

Trigger Handle

$

$

Not available

57

Homelite 308494065

Spray Wand
(Superseded to 308494075)

$13.99

$

Usually ships in 3-7 days

0

58

Homelite 308311014

Turbo Nozzle

$

$

Not available

59

Homelite 940779173

Performance Label

$

$

Not available

60

Homelite 940786038

Nozzle Selection Guide

$

$

Not available

61

Homelite 940894021

Warning Label (Fr/Sp)

$

$

Not available

62

Homelite 940705341

Handle Logo Label

$

$

Not available

63

Homelite 940971051

Warning Hangtag

$

$

Not available

64

Homelite 940614003

Quick Start Label

$

$

Not available

65

Homelite 961039007

Nozzle Hang Tag

$1.49

$

Usually ships in 3-7 days

0

66

Homelite 940324030

Warning Label (Eng)

$

$

Not available

67

Homelite 941531091

Data Label

$

$

Not available

68

Homelite 940324013

Warning Label (Cord Wrap)

$1.49

$

Usually ships in 3-7 days

0

69

Homelite 940705340

Front Logo Label

$

$

Not available

70

Homelite 940603006

Power Cord Label

$

$

Not available

71

Homelite 940324024

Trigger Handle Warning Label
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

72

Homelite 940786046

Logo Label (Spray Wand)

$

$

Not available

73

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

74

Homelite 523406003

Handle Foot Cap

$

$

Not available

75

Homelite 308103009

Inlet Filter

$

$

Not available

76

Homelite 694477001

Outlet Connector Nut

$

$

Not available

77

Homelite 570768007

O-Ring (ID8 x 2t)

$

$

Not available

78

Homelite 570768008

O-Ring (ID9.5 x 2.6t)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000057

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 991000058

Quick Start Guide

$

$

Currently unavailable
