PS 14133 B (090079307) - PowerStroke Pressure Washer Figure A Parts Diagram

Pressure Washer

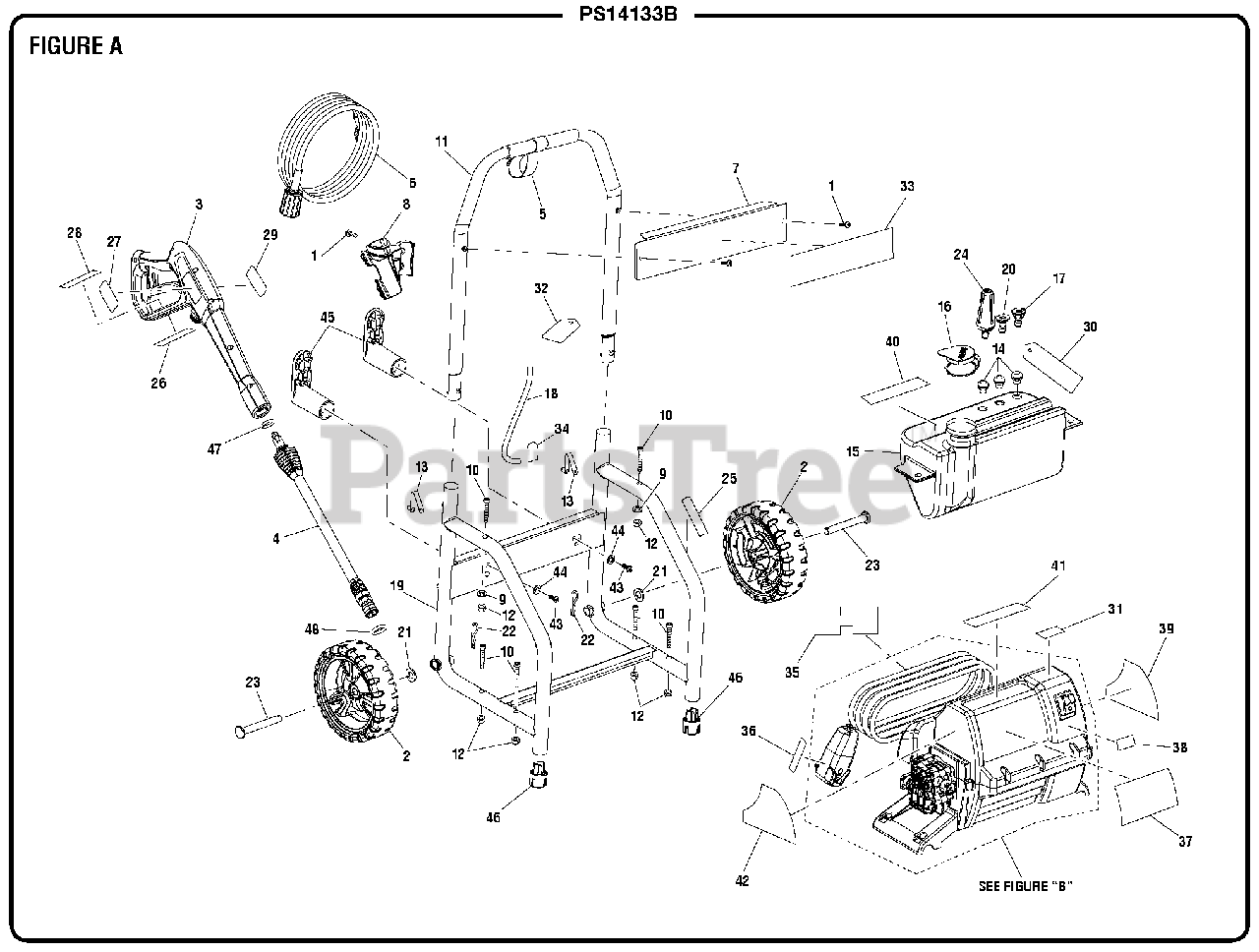

Figure A Parts Diagram

  • Title

1

Homelite 660481019

Bolt (M6 x 20 mm, Pan Hd.)

$1.49

$

In Stock, Qty 5

0

2

Homelite 308451020

Wheel Assembly

$

$

Not available

3

Homelite 308760050

Trigger Handle

$

$

Not available

4

Homelite 308494065

Spray Wand
(Superseded to 308494075)

$13.99

$

Usually ships in 3-7 days

0

5

Homelite 310801007

Hook and Loop Strap

$

$

Not available

6

Homelite 308835070

High Pressure Hose (20 ft)

$

$

Not available

7

Homelite 678973009

Performance Panel

$

$

Not available

8

Homelite 519313010

Trigger Handle Holder

$1.49

$

In Stock, Qty 6

0

9

Homelite 638128018

Washer (OD18 x ID6.5 x 1.5t)

$

$

Not available

10

Homelite 660481015

Bolt (M6 x 40 mm)

$

$

Not available

11

Homelite 310224086

Handle Assembly

Note: (Incl. Key No. 13)

$

$

Not available

12

Homelite 678460001

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 308421002

Spring Clip

$

$

Not available

14

Homelite 561383021

Grommet

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 310658010

Soap Tank Assembly

$

$

Not available

16

Homelite 518793007

Soap Tank Cap

$

$

Not available

17

Homelite 308706013

Soap Nozzle

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 561399009

Chemical Siphon Tube

$

$

Not available

19

Homelite 308412042

Frame Assembly

$

$

Not available

20

Homelite 308698028

15deg Nozzle

$3.99

$

Usually ships in 3-7 days

0

21

Homelite 678889003

Washer (OD24 x ID12.5 x 2.5t)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678238002

Cotter Pin
(Superseded to 678238004)

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 620599028

Axle (M12 x 67 mm)
(Superseded to 620599035)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308311014

Turbo Nozzle

$

$

Not available

11

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

27

Homelite 940786046

Logo Label (Trigger Handle)

$

$

Not available

28

Homelite 940324024

Warning Label (Trigger Handle)
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 940324030

Trigger Handle Warning Label (Eng)

$

$

Not available

30

Homelite 940473008

Warning Hangtag

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 941608005

Soap Dilution Label

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 961039007

Nozzle Hangtag

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 940779174

Performance Label

$

$

Not available

34

Homelite 941076001

Power Cord Unlock Label

$

$

Not available

35

Homelite 940324013

Cord Wrap Warning Label

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 940603006

GFCI Label

$

$

Not available

37

Homelite 940705336

Logo Label

$

$

Not available

38

Homelite 940734079

On/Off Label

$

$

Not available

39

Homelite 940707084

Danger Icon Label

$

$

Not available

40

Homelite 940617119

Quick Start Label

$

$

Not available

41

Homelite 940786041

Nozzle Selection Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940654309

Regulatory Danger Label

$

$

Not available

43

Homelite 661403019

Screw (M4.8 x 19 mm, Round Hd.)

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 678600010

Washer (OD12 x ID6.6 x 1.6t)

$

$

Not available

45

Homelite 522037003

Cord Wrap Arm

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 308909009

Foot

$1.49

$

Usually ships in 3-7 days

0

47

Homelite 570768007

O-Ring (ID8 x 2t)

$

$

Not available

48

Homelite 570768008

O-Ring (ID9.5 x 2.6t)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000816

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 991000817

Quick Start Guide

$

$

Currently unavailable
