PS 141955 (090079364) - PowerStroke Pressure Washer, Rev 01 (2017-12) Figure A Parts Diagram

Pressure Washer, Rev 01

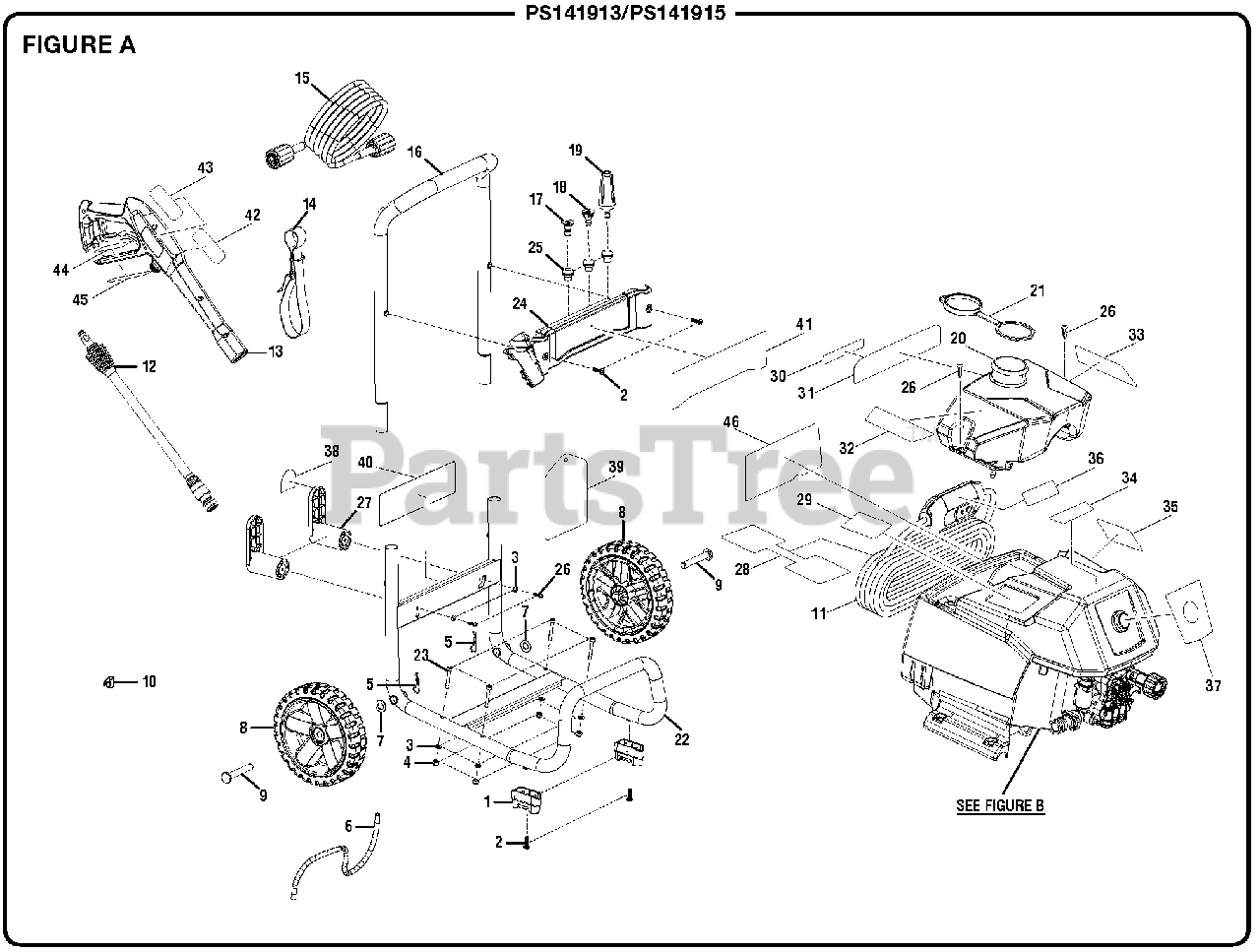

Figure A Parts Diagram

  • Title

1

Homelite 523406007

Foot

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 660481019

Bolt (M6 x 20 mm, Pan Hd.)

$1.49

$

In Stock, Qty 5

0

3

Homelite 678600010

Washer (M6)

$

$

Not available

4

Homelite 678460001

Lock Nut (M6)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 678238004

Hitch Pin

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 561399014

Suction Hose

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 678889003

Washer (ID12.5 x OD24 x 2t)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308451070

Wheel

$9.99

$

Usually ships in 3-7 days

0

9

Homelite 620599029

Axle

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 528499001

Cord Clip

$

$

Not available

11

Homelite 290426030

Power Cord

$84.99

$

Usually ships in 3-7 days

0

12

Homelite 308494075

Spray Wand

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 308760059

Trigger Handle

$

$

Not available

14

Homelite 310801004

Hose Storage Strap

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 308835065

Hose (25 ft.) [PS141913]

$27.99

$

Usually ships in 3-7 days

0

16

Homelite 310224085

Handle Assembly

$15.99

$

Usually ships in 3-7 days

0

17

Homelite 308706013

Soap Nozzle

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 308698032

Nozzle (15deg)

$

$

Not available

19

Homelite 308311014

Turbo Nozzle

$

$

Not available

20

Homelite 580575023

Detergent Tank (PS141913)
(Superseded to 580875023)

$

$

Not available

20

Homelite 580875023

Detergent Tank (PS141955)

$

$

Not available

21

Homelite 310650004

Detergent Tank Cap

$1.99

$

In Stock, Qty 5

0

22

Homelite 308582064

Frame

$40.99

$

Usually ships in 3-7 days

0

23

Homelite 660481015

Bolt (M6 x 40 mm Hex. Soc. Hd.)

$

$

Not available

24

Homelite 518790026

Front Panel

$

$

Not available

25

Homelite 561383021

Nozzle Grommet

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 661403019

Screw (M4.8 x 19 mm, Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 522037003

Cord Wrap Arm

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 940324032

Cord Wrap Label

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 941166002

Vent Label (Left)

$

$

Not available

30

Homelite 941486014

Inquires Label

$

$

Not available

31

Homelite 940617171

Quick Start Label (PS141913)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 940617188

Quick Start Label (PS141955)

$

$

Not available

32

Homelite 940786048

Nozzle Select Label (PS141913)

$

$

Not available

32

Homelite 940786055

Nozzle Select Label (PS141955)

$

$

Not available

33

Homelite 940608027

Detergent Tank Label (PS141913)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 940608035

Detergent Tank Label (PS141955)

$

$

Not available

34

Homelite 940705344

Logo Label

$

$

Not available

35

Homelite 941166001

Vent Label (Right)

$

$

Not available

36

Homelite 940603006

Cord Plug Label

$

$

Not available

37

Homelite 940698044

On/Off Switch Label (PS141913)

$

$

Not available

37

Homelite 940698052

On/Off Switch Label (PS141955)

$

$

Not available

38

Homelite 941076001

Cord Unlock Label

$

$

Not available

39

Homelite 961039007

Nozzle Hangtag (PS141913)

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 940654316

Regulatory Label (PS141913)

$

$

Not available

40

Homelite 940654331

Regulatory Label (PS141955)

$

$

Not available

41

Homelite 940779177

Performance Label (PS141913)

$

$

Not available

41

Homelite 940779201

Performance Label (PS141955)

$

$

Not available

42

Homelite 940324040

Trigger Handle Warning Label (English)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940786058

Trigger Hanlde Logo Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

46

Homelite 940894033

Danger Icon Label (PS141955)

$

$

Not available

Homelite 995000117

Operator's Manual

Note: Not Shown

$

$

Not available
