PS 142201 (090079435) - PowerStroke Pressure Washer, Rev 01 (2020-10) General Assembly Parts Diagram

Pressure Washer, Rev 01

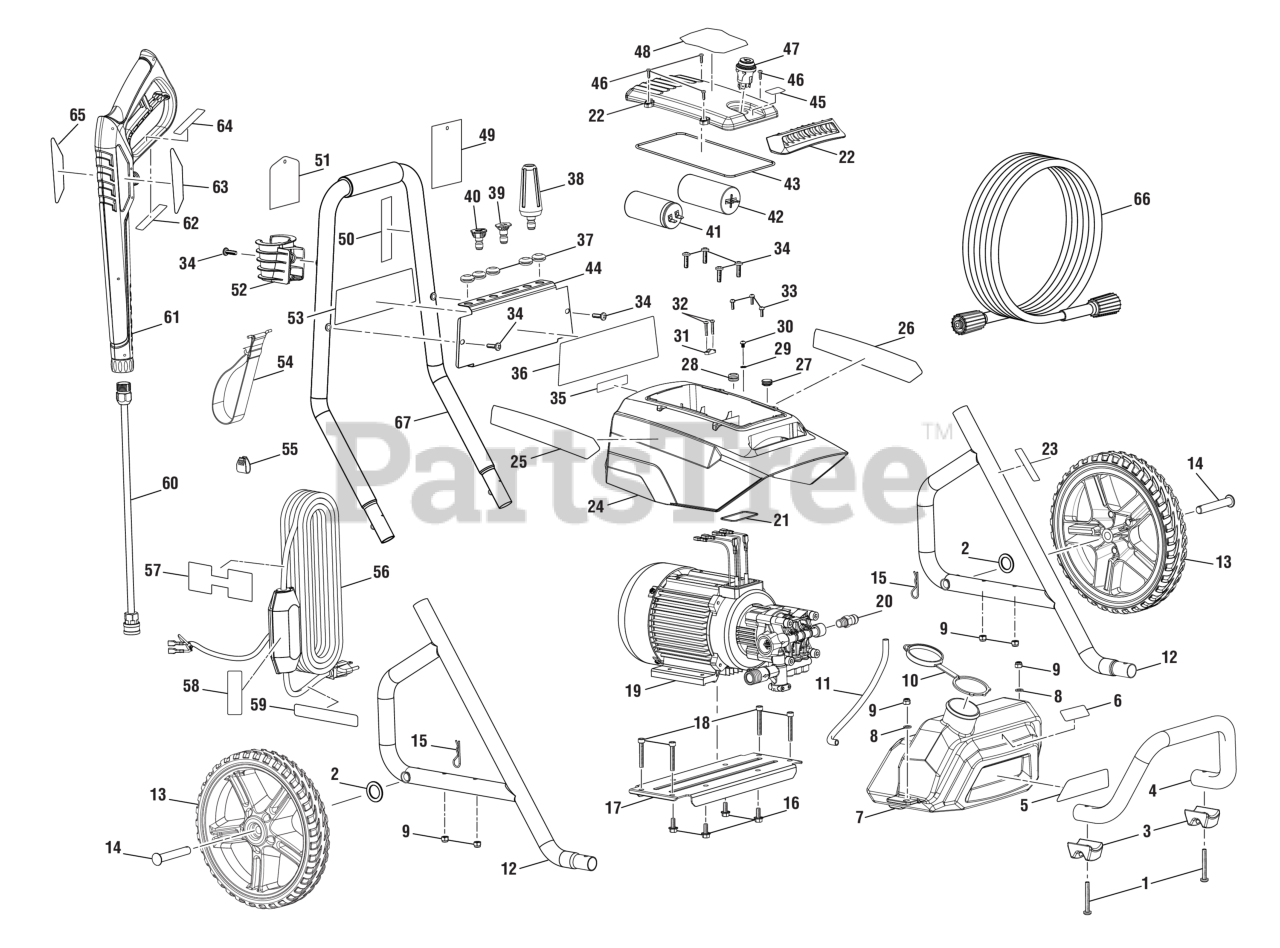

General Assembly Parts Diagram

  • Title

1

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

2

Homelite 635793001

Washer (OD21 x 14 x 1t)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 561307007

Rubber Foot

$

$

Not available

4

Homelite 308659048

Frame Assembly (Front)

$

$

Currently unavailable

5

Homelite 940851372

Detergent Tank Logo Label

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 941608005

Detergent Tank Label

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 580875029

Detergent Tank

$21.99

$

Usually ships in 3-7 days

0

8

Homelite 678600010

Washer (OD12 x ID6.6 x 1.6t)

$

$

Not available

9

Homelite 678460001

Lock Nut (M6)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 522032050

Soap Tank Cap

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 561399009

Detergent Injection Hose

$

$

Not available

12

Homelite 310703035

Frame Assembly

$

$

Currently unavailable

13

Homelite 308451081

Wheel

$27.99

$

Usually ships in 0 days

0

14

Homelite 620599035

Wheel Axle

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 678238004

Cotter Pin

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

17

Homelite 650079001

Motor Plate

$24.99

$

Usually ships in 3-7 days

0

18

Homelite 660481015

Bolt (M6 x 40 mm, Socket Hex Hd.)

$

$

Not available

19

Spool Cap (Item No. AC14HCA)

Note: OWT Industries, Inc., will not provide a complete motor/pump as a replacement part. Contact our customer service department for assistance.

$

$

Not available

20

Homelite 678169004

Thermal Release Valve.

$16.99

$

Usually ships in 3-7 days

0

21

Homelite 570449004

Wire Box Gasket (Lower)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 308760069

Upper Housing Assembly

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 941486002

Warning Label (Inquiries)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 522032047

Motor Shroud

$44.99

$

Usually ships in 3-7 days

0

25

Homelite 940851370

Beauty Wing Label (Right)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 940851371

Beauty Wing Label (Left)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 561383043

Water Seal

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 561383028

Soap Tank Grommet

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 638454005

Toothed Lock Washer (M4)

$

$

Not available

30

Homelite 660481028

Screw (M4 x 16 mm, Pan Hd.)

$

$

Not available

31

Homelite 522051003

Cord Clamp

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 661610008

Screw (M3.5 x 20 mm, Button Hd.)

$

$

Not available

33

Homelite 660481027

Bolt (M4 x 12 mm, Pan Hd.)

$

$

Not available

34

Homelite 660481019

Bolt (M6 x 20 mm, Philips Pan Hd.)

$2.49

$

In Stock, only 3 left!

0

35

Homelite 940617192

Try Another Outlet Label

$

$

Not available

36

Homelite 940851368

Performance Label

$2.99

$

Usually ships in 3-7 days

0

37

Homelite 561383004

Rubber Nozzle Grommet

$

$

Not available

38

Homelite 308311014

Turbo Nozzle

$

$

Not available

39

Homelite 308706013

Soap Nozzle (Blue)

$2.49

$

In Stock, only 4 left!

0

40

Homelite 308698035

15deg Nozzle

$

$

Not available

41

Homelite 820270011

Capacitor (CD60 250 VAC 300UF)

$31.99

$

Usually ships in 3-7 days

0

42

Homelite 820270012

Capacitor (CBB60 SH PO 250 VAC 120UF)

$45.99

$

In Stock, only 1 left!

0

43

Homelite 561383040

Rubber Gasket

$4.49

$

Usually ships in 3-7 days

0

44

Homelite 638671020

Face Panel

$16.99

$

Usually ships in 3-7 days

0

45

Homelite 940851373

On/Off Label

$2.49

$

Usually ships in 3-7 days

0

46

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 760504018

On/Off Switch

$21.99

$

Usually ships in 3-7 days

0

48

Homelite 940851369

Brushless Label

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 940473008

Danger Hangtag (Spanish)

$2.49

$

Usually ships in 3-7 days

0

50

Homelite 940851378

Quick Start Label

$

$

Currently unavailable

51

Homelite 961039007

Nozzle Hangtag (PS141913)

$2.49

$

Usually ships in 3-7 days

0

52

Homelite 519313024

Handle Holder

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 940851367

Danger Label

$2.49

$

Usually ships in 3-7 days

0

54

Homelite 308350003

Hose Holder Strap

$3.99

$

Usually ships in 3-7 days

0

55

Homelite 528499001

Electric Cord Clip

$

$

Not available

56

Homelite 290426027

Power Cord Assembly

$164.99

$

Usually ships in 3-7 days

0

57

Homelite 940324032

Cordwrap Warning Label

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940603006

Power Cord Label

$

$

Not available

59

Homelite 940324338

Outlet Cord Wrap Label

$

$

Currently unavailable

60

Homelite 308494077

Spray Wand Assembly

$35.99

$

In Stock, only 1 left!

0

61

Homelite 308760067

Trigger Handle

$77.99

$

Usually ships in 3-7 days

0

62

Homelite 940904008

Rating Label

$

$

Not available

63

Homelite 940324046

Trigger Handle Warning Label (English)

$

$

Currently unavailable

64

Homelite 940654228

Label (Trigger Handle Warning, French & Spanish)

$3.49

$

Usually ships in 3-7 days

0

65

Homelite 940786065

Trigger Handle Logo Label

$

$

Currently unavailable

66

Homelite 308835086

High Pressure Hose

$60.99

$

Usually ships in 3-7 days

0

67

Homelite 308582080

Handle Assembly

$

$

Currently unavailable

Homelite 995000723

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
