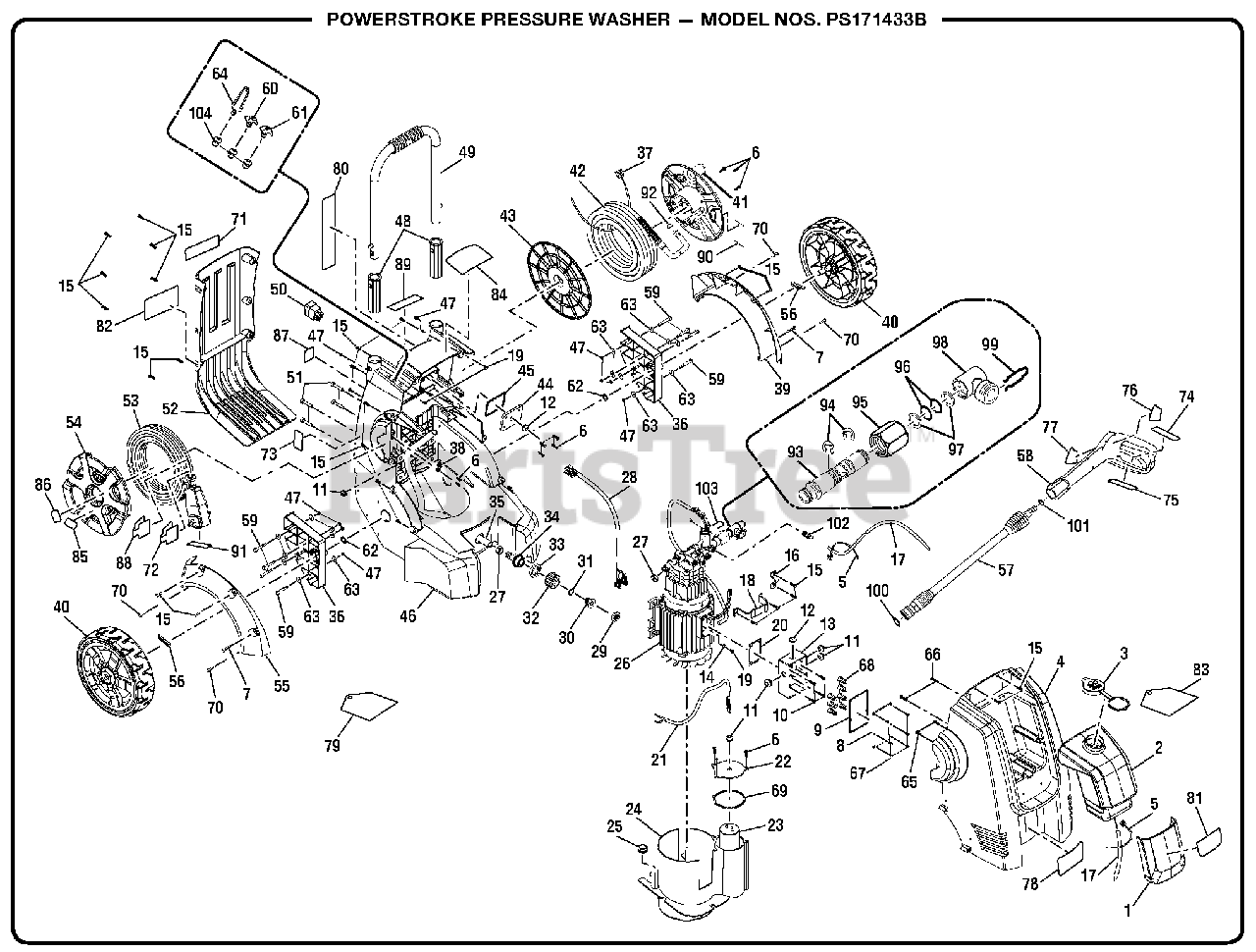

PS 171433 B - PowerStroke Pressure Washer General Assembly Parts Diagram

Pressure Washer

General Assembly Parts Diagram

  • Title
1

Homelite 522034001

Tank Front Panel

$

$

Not available

$

$

Not available

3

$

$

Not available

4

Homelite 522032001

Front Housing

$

$

Not available

5

Homelite 519722010

Tie Wrap (A)

$

$

Not available

6

Homelite 661427001

Screw (M4.2 x 15 mm)

$

$

Not available

7

Homelite 661402006

Screw (M5 x 20 mm)

$

$

Not available

8

Homelite 522062001

Junction Box Cover

$

$

Not available

9

Homelite 570445001

Junction Box Gasket

$

$

Not available

10

Homelite 661403009

Screw (M4 x 10 mm)

$

$

Not available

11

Homelite 561383012

Grommet (A)

$

$

Not available

12

Homelite 561383013

Grommet (B)

$

$

Not available

13

Homelite 522063001

Junction Box

$

$

Not available

14

Homelite 638914001

Star Washer

$

$

Not available

15

Homelite 661402006

Screw (M5 x 16 mm)

$

$

Not available

$

$

Not available

17

Homelite 309029006

Detergent Hose

$

$

Not available

18

Homelite 678905001

Pump Clamp

$

$

Not available

19

Homelite 661610005

Screw (M4 x 6 mm)

$

$

Not available

20

$

$

Not available

21

Homelite 290735031

Lead Wire w/Terminals

$

$

Not available

22

Homelite 522061001

Capacitor Box Cover

$

$

Not available

23

Homelite 820270004

Capacitor

$

$

Not available

24

Homelite 522049002

Motor Cover

$

$

Not available

25

$

$

Not available

26

Homelite 308833004

Motor Pump Assembly

$

$

Not available

$

$

Not available

28

Homelite 290606002

Inner Cable

$

$

Not available

29

Homelite 308103009

Water Inlet Filter

$

$

Not available

30

Homelite 310422002

Water Inlet Screw

$

$

Not available

31

Homelite 570768004

O-Ring (13.5 x 1.8G)

$

$

Not available

32

Homelite 310423002

Water Inlet Connector

$

$

Not available

33

$

$

Not available

34

Homelite 310423001

Hose Connector

$

$

Not available

35

Homelite 308835032

Water Inlet Hose

$

$

Not available

36

Homelite 522939001

Housing Insert

$

$

Not available

37

Homelite 519722011

Tie Wrap (B)

$

$

Not available

38

Homelite 522051002

Cord Clamp

$

$

Not available

39

Homelite 522031001

Right Fender

$

$

Not available

40

Homelite 308451017

Wheel Assembly

$

$

Not available

41

Homelite 570471001

High Pressure Hose Reel Cover

$

$

Not available

42

Homelite 308835031

High Pressure Hose

$

$

Not available

43

Homelite 570470001

High Pressure Hose Reel

$

$

Not available

44

Homelite 519813011

Switch Cover

$

$

Not available

45

$

$

Not available

46

Homelite 522033001

Back Housing

$

$

Not available

47

Homelite 678827002

Lock Nut (M4)

$

$

Not available

48

Homelite 518477003

Handle Guide Bushing

$

$

Not available

49

Homelite 308638020

Handle Assembly

$

$

Not available

50

Homelite 760504007

Switch (20A)

$6.49

$

In Stock, only 1 left!

0

51

Homelite 660481016

Screw (M6 x 20 mm)

$

$

Not available

52

Homelite 522036001

Back Shroud

$

$

Not available

53

Homelite 290426007

Power Cord Assembly

$

$

Not available

54

Homelite 522035001

Power Cord Reel Cover

$

$

Not available

55

Homelite 522030001

Left Fender

$

$

Not available

$

$

Not available

57

Homelite 308494036

Spray Wand

$

$

Not available

58

Homelite 308238002

Trigger Handle Assembly

$

$

Not available

59

Homelite 661403011

Screw (M4 x 40 mm)

$

$

Not available

60

Homelite 308706010

Soap Nozzle

$

$

Not available

61

Homelite 308246004

High Pressure Nozzle

$

$

Not available

62

Homelite 638915001

Washer (17.8 mm x 12 mm x 0.5t)

$

$

Not available

63

Homelite 678600008

Washer (12 mm x 4.2 mm x 0.5t)

$

$

Not available

64

Homelite 308311017

Turbo Nozzle

$

$

Not available

65

Homelite 661403012

Screw (M4 x 20 mm)

$

$

Not available

66

Homelite 661403013

Screw (M4 x 25 mm)

$

$

Not available

67

Homelite 661818001

Screw (M2.5 x 8 mm)

$

$

Not available

68

$

$

Not available

69

Homelite 562844001

Seal (Capacitor Box Cover)

$

$

Not available

70

Homelite 661819001

Screw (M2.9 x 9.5 mm)

$

$

Not available

71

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

72

Homelite 940324013

Danger/CA Prop. 65 Label

$1.49

$

Usually ships in 3-7 days

0

73

Homelite 941531011

Data Label

$

$

Currently unavailable

74

Homelite 940654138

Trigger Handle Warning Label (French/Spanish)

$

$

Not available

75

Homelite 940779008

Trigger Handle Rating Label

$

$

Not available

76

Homelite 940324019

Trigger Handle Warning Label (English)

$

$

Not available

77

Homelite 940870003

Trigger Handle Logo Label

$

$

Not available

78

Homelite 940779039

Performance Label

$

$

Not available

79

Homelite 940971061

Power Cord Reel Hang Tag

$

$

Not available

80

Homelite 940734075

Starting Label

$

$

Not available

81

Homelite 940705105

Front Logo Label

$

$

Not available

82

Homelite 940707074

Danger Label

$

$

Not available

83

Homelite 940971062

Detergent Tank Hang Tag

$

$

Not available

84

Homelite 940705106

Top Logo Label

$

$

Not available

85

Homelite 940758014

Power Cord Reel Unlock Label

$

$

Not available

86

Homelite 940758015

Power Cord Reel Lock Label

$

$

Not available

87

Homelite 940734079

On/Off Switch Label

$

$

Not available

88

Homelite 940617083

Extension Cord Label

$

$

Not available

89

Homelite 940734076

Carry Handle Label

$

$

Not available

90

Homelite 940869003

Danger Hang Tag

$

$

Not available

91

Homelite 940603006

Cord Plug Label

$

$

Not available

92

Homelite 570768006

O-Ring (7.6 x 1.8G)

$

$

Not available

93

Homelite 678884001

Pipe (Water Inlet)

$

$

Not available

94

Homelite 678900002

Retaining Ring (E-Ring)

$

$

Not available

95

Homelite 678635002

Nut (Water Inlet)

$

$

Not available

96

Homelite 570443001

O-Ring (Internal)

$

$

Not available

97

Homelite 570442001

Backup Ring

$

$

Not available

98

Homelite 678883001

High Pressure Swivel (Water Outlet)

$

$

Not available

99

Homelite 678900003

High Pressure Hose Clip

$

$

Not available

100

Homelite 570768008

O-Ring (Large)

$

$

Not available

101

Homelite 570768007

O-Ring (Small)

$

$

Not available

102

Homelite 310868002

Detergent Injector Assembly

$

$

Not available

103

Homelite 678799014

U-Pin (Switch Box)

$

$

Not available

104

Homelite 561383021

Nozzle Grommet

$1.49

$

Usually ships in 3-7 days

0

Homelite 988000013

Operator's Manual

Note: Not Shown

$

$

Not available
