PS 262311 - PowerStroke Pressure Washer Power Stroke Pressure Washer Parts Diagram

Pressure Washer

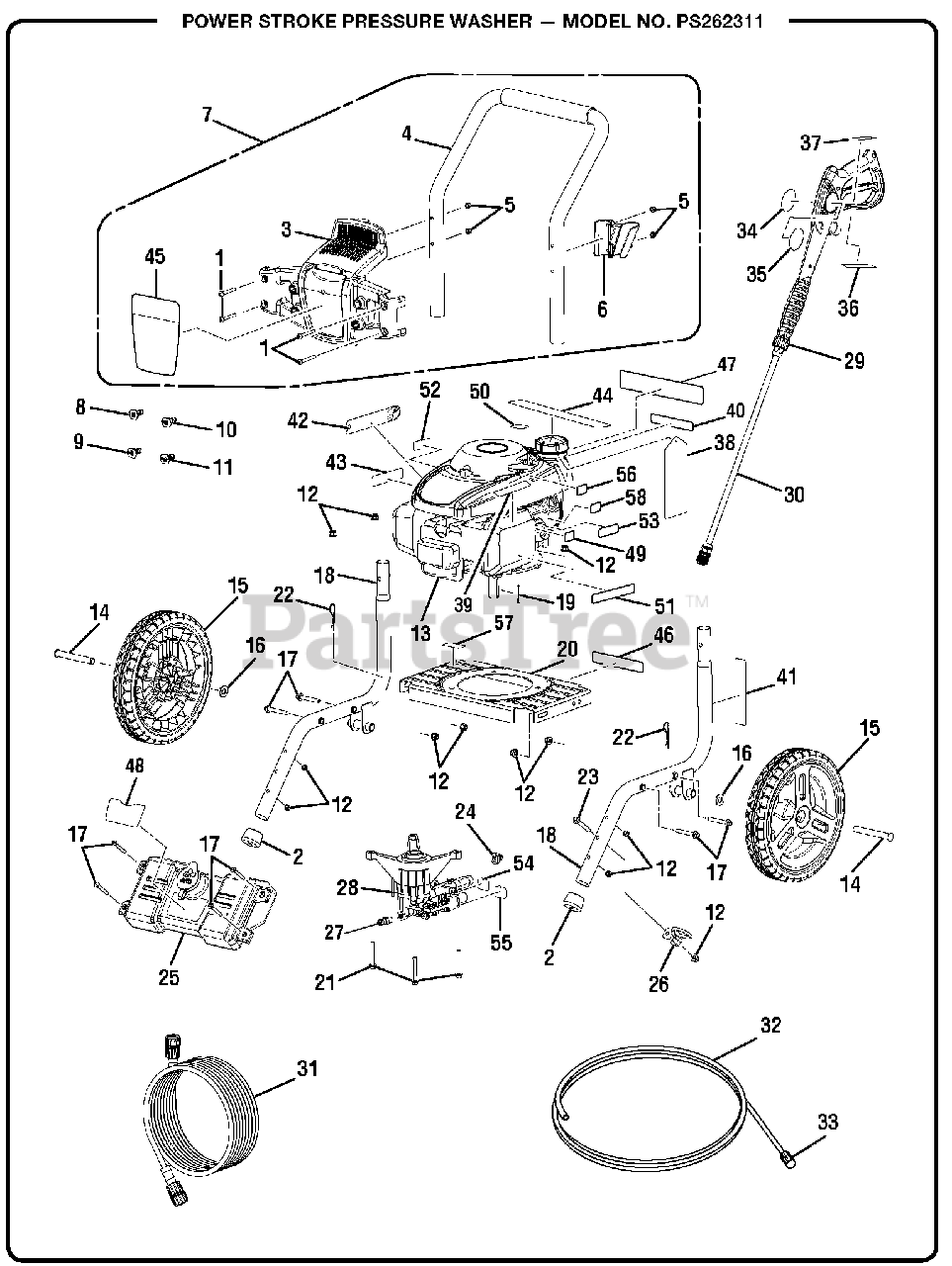

Power Stroke Pressure Washer Parts Diagram

  • Title

1

Homelite 661501001

Screw (1/4-20 x 1.85 in., T30 Torx Hd.)

$

$

Not available

2

Homelite 561307004

Rubber Foot

$

$

Not available

3

Homelite 310673006

Hose and Nozzle Holder Assembly

$

$

Not available

4

Homelite 308638022

Handle w/Foam

$18.99

$

Usually ships in 3-7 days

0

5

Homelite 678016006

Lock Nut (1/4-20)
(Superseded to 678016002)

$1.49

$

In Stock, only 2 left!

0

6

Homelite 519313002

Wand Holder
(Superseded to 519313007)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310656008

Handle Assembly

$

$

Currently unavailable

8

Homelite 308700012

40deg Nozzle

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 308706006

Soap Nozzle

$2.99

$

Usually ships in 3-7 days

0

10

Homelite 308699012

25deg Nozzle

$4.49

$

In Stock, only 2 left!

0

11

Homelite 308697012

0deg Nozzle
(Superseded to 308697014)

$9.49

$

Usually ships in 3-7 days

0

12

Homelite 678774002

Flange Nut (M8 x 1.25)

$

$

Not available

13

Engine

$

$

Not available

14

Homelite 620599007

Axle

$2.49

$

In Stock, only 2 left!

0

15

Homelite 308451019

Wheel

$

$

Not available

16

Homelite 638275002

Washer (1/2 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 6690962001

Bolt (M8 x 55 mm, Flange Hd.)

$

$

Currently unavailable

18

Homelite 308471032

Main Frame Assembly

$

$

Not available

19

Homelite 678041003

Output Shaft Key (3/16 in. x 40 mm)
(Superseded to 678041007)

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638662003

Engine Plate

$32.99

$

Usually ships in 3-7 days

0

21

Homelite 660962003

Bolt (M8 x 60 mm, Flange Hd.)

$1.99

$

In Stock, Qty 12

0

22

Homelite 678899001

Axle Clip

$

$

Not available

23

Homelite 661505003

Bolt (M8 x 50 mm)

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308662001

Filter Screen (Pump Inlet)

$

$

Not available

25

Homelite 310658005

Soap Tank with Cap

$

$

Not available

26

Homelite 678243007

Wand Holder Loop
(Superseded to 678243005)

$

$

Not available

27

Homelite 678169004

Thermal Release Valve

$

$

Not available

28

Homelite 308653006

Pump
(Superseded to 308653093)

$170.99

$

Usually ships in 3-7 days

0

29

Homelite 308760019

Trigger Handle Assembly

$27.99

$

In Stock, only 1 left!

0

30

Homelite 308506006

Extension Wand
(Superseded to 308506014)

$

$

Not available

31

Homelite 308907005

Hose (25 ft., 3000 psi)
(Superseded to 308835006)

$33.99

$

Usually ships in 3-7 days

0

32

Homelite 561399003

Chemical Siphon Tube

$1.99

$

In Stock, only 1 left!

0

33

Homelite 518391001

Chemical Siphon Filter

$1.49

$

In Stock, only 3 left!

0

34

Homelite 940786008

Label (Wand Logo)

$

$

Not available

35

Homelite 940654084

Label (Wand Warning)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 940654089

Fr/Sp Label (Wand Warning)

$1.49

$

In Stock, only 1 left!

0

37

Homelite 940786006

Label (Wand Rating)

$

$

Not available

38

Homelite 940971055

Danger Hangtag

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 960433002

Engine Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

40

Homelite 940654088

Combustion Label

$1.49

$

In Stock, only 3 left!

0

41

Homelite 940496002

Pump Quick Start Label

$1.49

$

Usually ships in 3-7 days

0

42

Homelite 940889001

Add Oil Hangtag

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 940680027

Hot Surface Label

$1.49

$

Usually ships in 3-7 days

0

44

Homelite 940899001

No Oil Label

$

$

Not available

45

Homelite 940779037

Performance Label

$

$

Not available

46

Homelite 940676003

Data Label

$

$

Currently unavailable

47

Homelite 940894001

Danger Label

$

$

Not available

48

Homelite 940705094

Soap Tank Label

$

$

Not available

49

Homelite 940698011

Engine On/Off Label

$

$

Not available

50

Homelite 940872001

No E85 Label

$

$

Not available

51

Homelite 941486002

Inquiries Label

$1.49

$

Usually ships in 3-7 days

0

52

Homelite 940517007

Lubricant Label

$1.49

$

Usually ships in 3-7 days

0

53

Homelite 940647048

Choke/Run Label

$

$

Not available

54

Homelite 940716004

Garden Hose Hang Tag

$

$

Not available

55

Homelite 640716005

High Pressure Hose Hang Tag

$

$

Currently unavailable

56

Homelite 941494005

Recoil Start Label

$

$

Not available

57

Homelite 940871002

Oil Fill Location Label

$1.49

$

Usually ships in 3-7 days

0

58

Homelite 940647047

Choke Label

$

$

Not available

Homelite 987000956

Operator's Manual

Note: (Not Shown)

$

$

Not available
